Air Pipeline "INFINITY" Series

>90150
90150

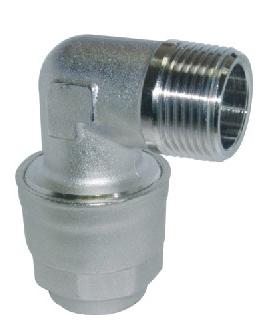

ELBOW CONNECTOR MALE-TUBE

Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications
ELBOW CONNECTOR MALE-TUBE
ELBOW CONNECTOR MALE-TUBE

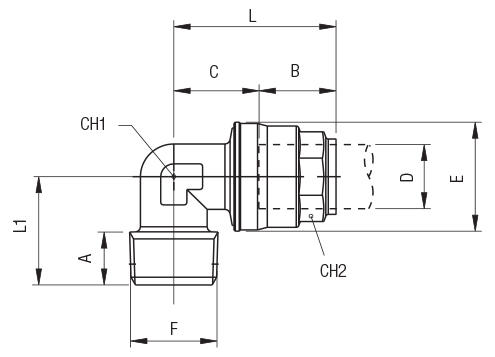

Code  Draw D F A B C E L L1 CH CH1 Bag
90150 00 001     Download 20 1/2 14 31,5 19 34.5 51 32 21 30 4
90150 00 002     Download 25 3/4 16,5 38,5 23 42.5 61.5 37 26 35 4
90150 00 003     Download 32 1" 19 46 28 52 74.5 49 34 45 2
90150 00 004     Download 40 1" 1/4 21,5 52 34 63 86.5 54 41 55 2
90150 00 005     Download 50 1" 1/2 21,5 63,5 40,5 73 104 59 50 65 2
Code Draw D F A B C E L L1 CH CH1 Bag
90150 00 001 Download 20 1/2 14 31,5 19 34.5 51 32 21 30 4
90150 00 002 Download 25 3/4 16,5 38,5 23 42.5 61.5 37 26 35 4
90150 00 003 Download 32 1" 19 46 28 52 74.5 49 34 45 2
90150 00 004 Download 40 1" 1/4 21,5 52 34 63 86.5 54 41 55 2
90150 00 005 Download 50 1" 1/2 21,5 63,5 40,5 73 104 59 50 65 2
