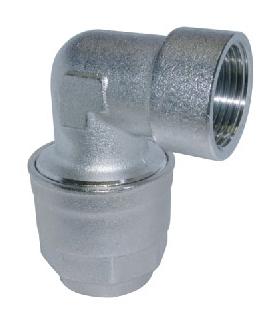

ELBOW CONNECTOR FEMALE-TUBE

Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications
ELBOW CONNECTOR FEMALE-TUBE
ELBOW CONNECTOR FEMALE-TUBE

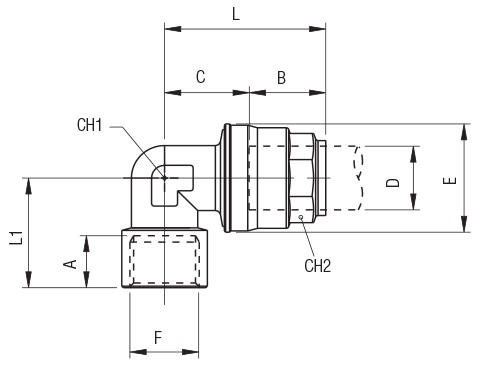

Code  Draw D F A B C E L L1 CH CH1 Bag
90160 00 001     Download 20 1/2 13 31,5 19 34.5 51 34.5 21 30 4
90160 00 002     Download 25 3/4 14,5 38,5 23 42.5 61.5 38.5 26 35 4
90160 00 003     Download 32 1" 16,5 46 28 52 74.5 47.5 34 45 2
90160 00 004     Download 40 1" 1/4 20 52 34 63 86.5 56.5 41 55 2
90160 00 005     Download 50 1" 1/2 22 63,5 40,5 73 104 64.7 50 65 2
90160 00 006     63 2" 21,7 59 52 92 111 77 65 70 1
Code Draw D F A B C E L L1 CH CH1 Bag
90160 00 001 Download 20 1/2 13 31,5 19 34.5 51 34.5 21 30 4
90160 00 002 Download 25 3/4 14,5 38,5 23 42.5 61.5 38.5 26 35 4
90160 00 003 Download 32 1" 16,5 46 28 52 74.5 47.5 34 45 2
90160 00 004 Download 40 1" 1/4 20 52 34 63 86.5 56.5 41 55 2
90160 00 005 Download 50 1" 1/2 22 63,5 40,5 73 104 64.7 50 65 2
90160 00 006 63 2" 21,7 59 52 92 111 77 65 70 1
