90975
CONDENSED DRAIN VALVE
Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications

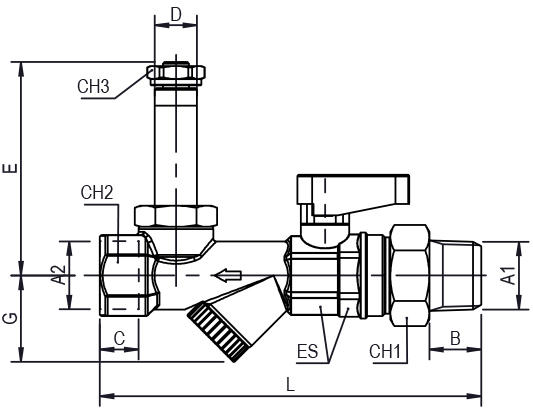

| Code | Draw | A1(BSPT) | A2(BSPP) | B | C | D | CH1 | CH2 | CH3 | L | E | ES | G | Ø mm | Viscosity (Max cSt) | Kv m3/h EXT | Power DC 8 W | Power DC 14 W | Power DC 22 W | Power AC 14 VA | Power AC 21 VA | Power AC 31 VA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90975 000 04 | Download | 3/8 | 1/2 | 11,5 | 12 | 13 | 27 | 25 | 16 | 113.5 | 65,5 | 22 - 23 | 26,5 | 3 | 53 | 0.21 | ΔP bar 0-11.4 | ΔP bar 0-15.1 | ΔP bar 0-20 | ΔP bar 0-10.6 | ΔP bar 0-17.1 | ΔP bar 0-24.1 |
| 90975 000 05 | Download | 1/2 | 1/2 | 16 | 12 | 13 | 27 | 25 | 16 | 113.5 | 65,5 | 22 - 23 | 26,5 | 3 | 53 | 0.21 | ΔP bar 0-11.4 | ΔP bar 0-15.1 | ΔP bar 0-20 | ΔP bar 0-10.6 | ΔP bar 0-17.1 | ΔP bar 0-24.1 |
