Air Pipeline "INFINITY" Series

90600

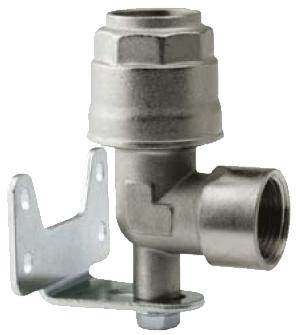

BRAKET FITTING

Technical characteristics / catalog File BIM Aignep Scan Labels Instructions Certifications

BRAKET FITTING

BRAKET FITTING

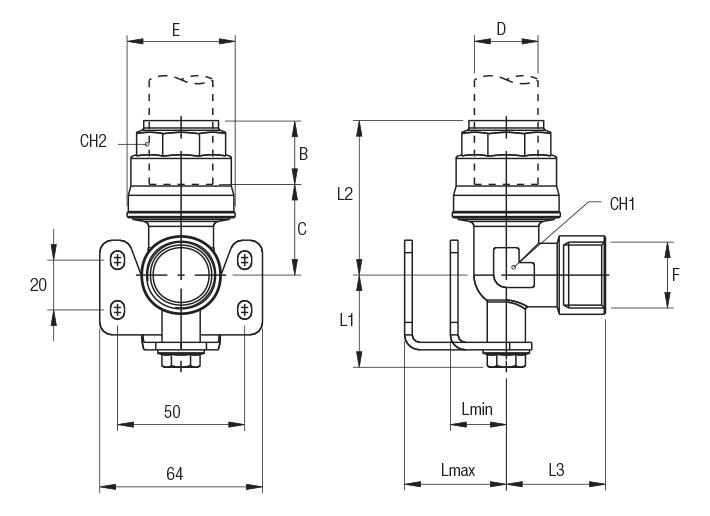

Code			Draw	D	F	B	C	E	L1	L2	L3	L Max	L Min	CH1	CH2	Bag
90600 00 001			Download	20	1/2	31.5	19.5	34.5	35	51	35	40	22	21	30	4
90600 00 002			Download	25	3/4	38.5	23	42.5	37	62	39	40	22	26	35	3
90600 00 003			Download	32	1"	46	28	52	41	74.5	48.5	40	26	34	45	2

Code	Draw	D	F	B	C	E	L1	L2	L3	L Max	L Min	CH1	CH2	Bag
90600 00 001	Download	20	1/2	31.5	19.5	34.5	35	51	35	40	22	21	30	4
90600 00 002	Download	25	3/4	38.5	23	42.5	37	62	39	40	22	26	35	3
90600 00 003	Download	32	1"	46	28	52	41	74.5	48.5	40	26	34	45	2

ADJUSTABLE
