Air Pipeline "INFINITY">

Air Pipeline "INFINITY" Series

>90700
90700

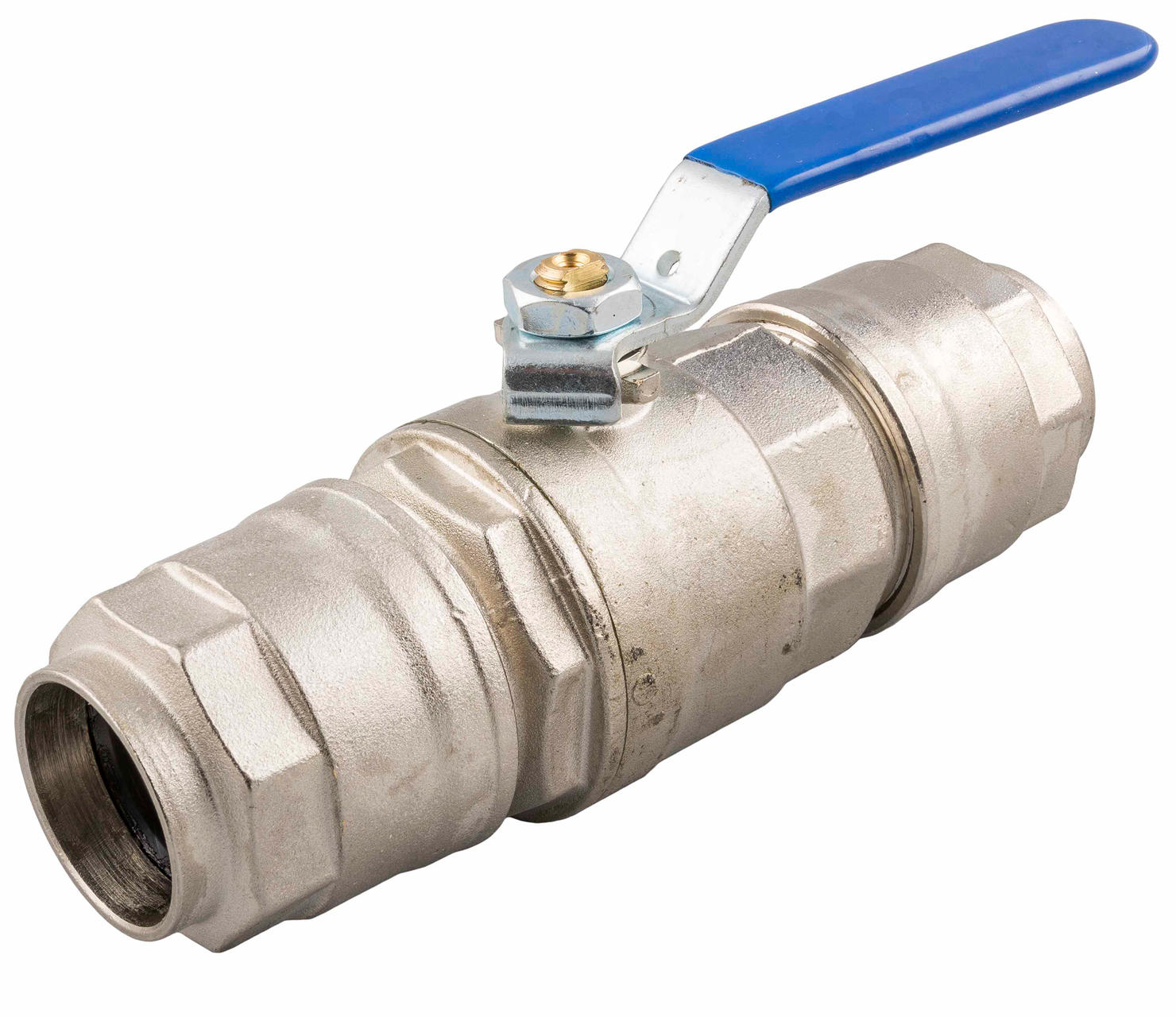

BALL VALVE - FULL BORE

Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications
BALL VALVE - FULL BORE
BALL VALVE - FULL BORE

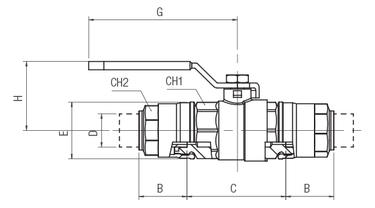

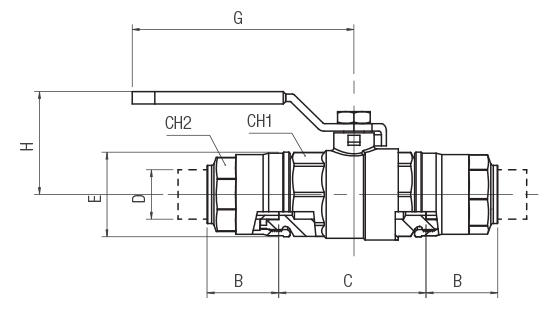

Code  Draw D D.N. B C E L CH1 CH2 G H * Bag
90700 00 001     Download 20 17 31,5 58,5 34,5 121.5 32 30 88 42 2
90700 00 002     Download 25 22 38,5 61,5 42,5 138.5 41 35 106 47,5 2
90700 00 003     Download 32 29 46 75 52 167 50 45 106 53 2
90700 00 004     Download 40 37 52,5 81 63 186 59 55 134 65 1
90700 00 005     Download 50 46 63,5 103 73 230 69 65 134 72,5 1
90700 00 005 A     Download 50 46 65 115 84 245 69 74 134 72,5 Aluminium 1
90700 00 006 A     Download 63 59 57,5 126 94 232 89 75 240 111,5 Aluminium 1
Code Draw D D.N. B C E L CH1 CH2 G H * Bag
90700 00 001 Download 20 17 31,5 58,5 34,5 121.5 32 30 88 42 2
90700 00 002 Download 25 22 38,5 61,5 42,5 138.5 41 35 106 47,5 2
90700 00 003 Download 32 29 46 75 52 167 50 45 106 53 2
90700 00 004 Download 40 37 52,5 81 63 186 59 55 134 65 1
90700 00 005 Download 50 46 63,5 103 73 230 69 65 134 72,5 1
90700 00 005 A Download 50 46 65 115 84 245 69 74 134 72,5 Aluminium 1
90700 00 006 A Download 63 59 57,5 126 94 232 89 75 240 111,5 Aluminium 1
