Air Pipeline "INFINITY">

Air Pipeline "INFINITY" Series

90602

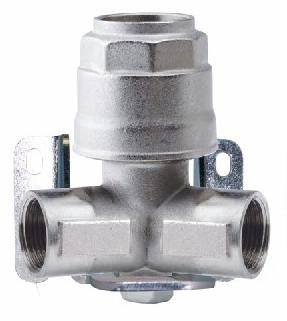

2 WAYS MANIFOLD

Technical characteristics / catalog File BIM Aignep Scan Labels Instructions Certifications

2 WAYS MANIFOLD

2 WAYS MANIFOLD

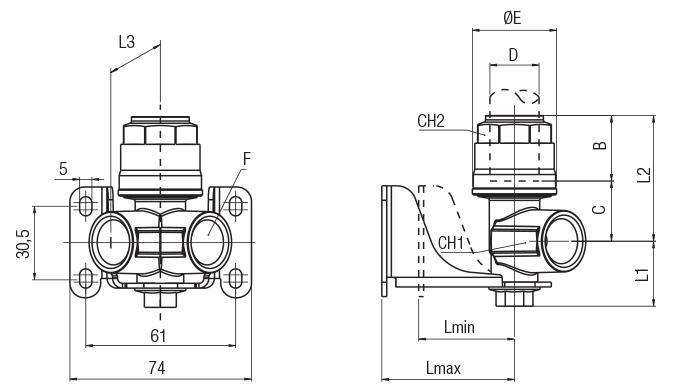

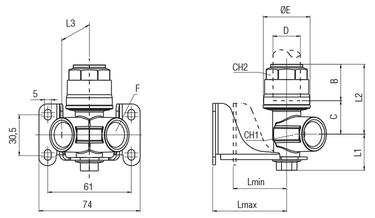

Code			Draw	D	F	B	C	E	I	CH1	CH2	L1	L2	L Min	L Max	CH1	CH2	Bag
90602 00 001			Download	20	1/2	31,5	20	34.5	28.5	26	30	27	51.5	22	54	26	30	2
90602 00 002			Download	25	1/2	38,5	21	42.5	28.5	26	35	27	59	22	54	26	35	2

Code	Draw	D	F	B	C	E	I	CH1	CH2	L1	L2	L Min	L Max	CH1	CH2	Bag
90602 00 001	Download	20	1/2	31,5	20	34.5	28.5	26	30	27	51.5	22	54	26	30	2
90602 00 002	Download	25	1/2	38,5	21	42.5	28.5	26	35	27	59	22	54	26	35	2

ADJUSTABLE
