Air Pipeline "INFINITY">

Air Pipeline "INFINITY" Series

>90140
90140

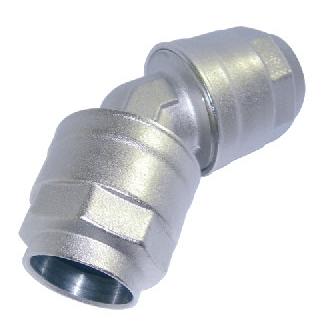

135° CONNECTOR

Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications
135° CONNECTOR
135° CONNECTOR

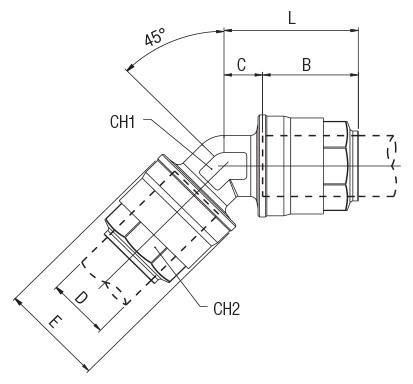

Code  Draw D B C E L CH1 CH2 * Bag
90140 00 001     Download 20 31,5 12,5 34,5 44 21 30 4
90140 00 002     Download 25 38,5 13,5 42,5 52 26 35 4
90140 00 003     Download 32 46 15 52 61 34 45 2
90140 00 004     Download 40 52 18 63 70 41 55 1
90140 00 005     Download 50 63,5 20 73 83,5 50 65 2
90140 00 005 A     Download 50 58,5 35,5 84 94 59 72 Aluminium 2
90140 00 006 A     Download 63 57,5 24 94 82 73 75 Aluminium 1
Code Draw D B C E L CH1 CH2 * Bag
90140 00 001 Download 20 31,5 12,5 34,5 44 21 30 4
90140 00 002 Download 25 38,5 13,5 42,5 52 26 35 4
90140 00 003 Download 32 46 15 52 61 34 45 2
90140 00 004 Download 40 52 18 63 70 41 55 1
90140 00 005 Download 50 63,5 20 73 83,5 50 65 2
90140 00 005 A Download 50 58,5 35,5 84 94 59 72 Aluminium 2
90140 00 006 A Download 63 57,5 24 94 82 73 75 Aluminium 1
