FUNCTION' Series

>8850
8850

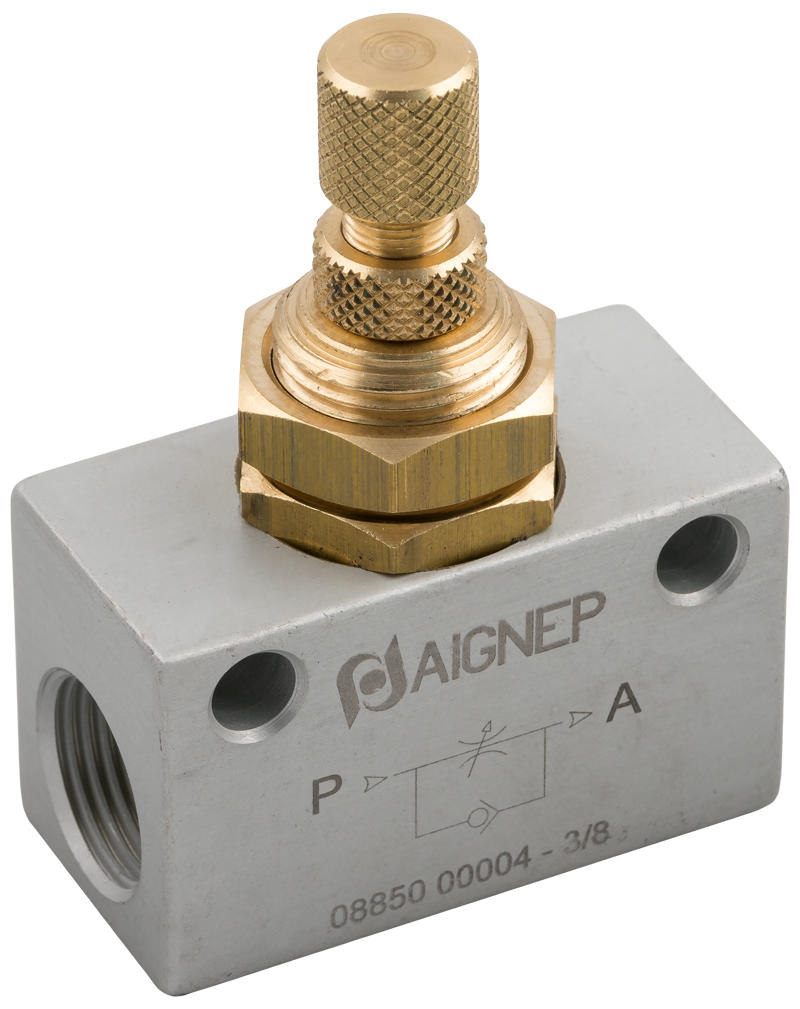

UNI-DIRECTIONAL FLOW REGULATOR

Technical characteristics / catalogAignep Scan Labels Certifications
UNI-DIRECTIONAL FLOW REGULATOR
UNI-DIRECTIONAL FLOW REGULATOR
Code  Draw A B C H D F L M CH Bag
08850 00 001     Download M5 25 15 12 18 4.5 20-27 M10X0,75 12 10
08850 00 002     Download 1/8 35 22 18 24.7 4.5 26-36 M12X0,75 15 10
08850 00 003     Download 1/4 46 30 20 35 6.5 26-36 M12X0,75 15 10
08850 00 004     Download 3/8 50 30 25 35 6.5 32-42 M18X1,5 22 10
08850 00 005     Download 1/2 60 40 25 44 6.5 32-44 M18X1,5 22 10
Code Draw A B C H D F L M CH Bag
08850 00 001 Download M5 25 15 12 18 4.5 20-27 M10X0,75 12 10
08850 00 002 Download 1/8 35 22 18 24.7 4.5 26-36 M12X0,75 15 10
08850 00 003 Download 1/4 46 30 20 35 6.5 26-36 M12X0,75 15 10
08850 00 004 Download 3/8 50 30 25 35 6.5 32-42 M18X1,5 22 10
08850 00 005 Download 1/2 60 40 25 44 6.5 32-44 M18X1,5 22 10
