55940
TUBE IN-LINE NEEDLE VALVE (UNIDIRECTIONAL FLOW)
Technical characteristics / catalogAignep Scan Labels Certifications

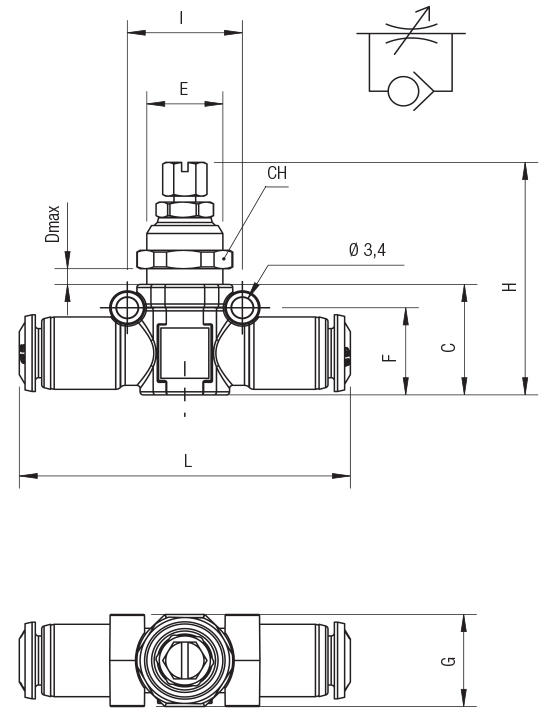

| Code | Draw | Tube | C | D | E | F | G | H | I | L | CH | Bag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55940 00 004 | Download | 4 | 18 | 4 | M12X1 | 14,5 | 15 | 37,5÷43,5 | 18 | 52 | 14 | 10 |
| 55940 00 001 | Download | 6 | 18 | 6 | M12X1 | 14.5 | 15 | 37,5÷43,5 | 18 | 52 | 14 | 10 |
| 55940 00 002 | Download | 8 | 20 | 6,5 | M14X1 | 16.5 | 17 | 39,5÷45,5 | 20 | 58 | 16 | 10 |
| 55940 00 003 | Download | 10 | 23,5 | 8 | M16X1 | 19.5 | 19 | 47,5÷53,5 | 22.5 | 67 | 18 | 10 |
