Serie 04F - 2/2 NC - 1/4" - 1"

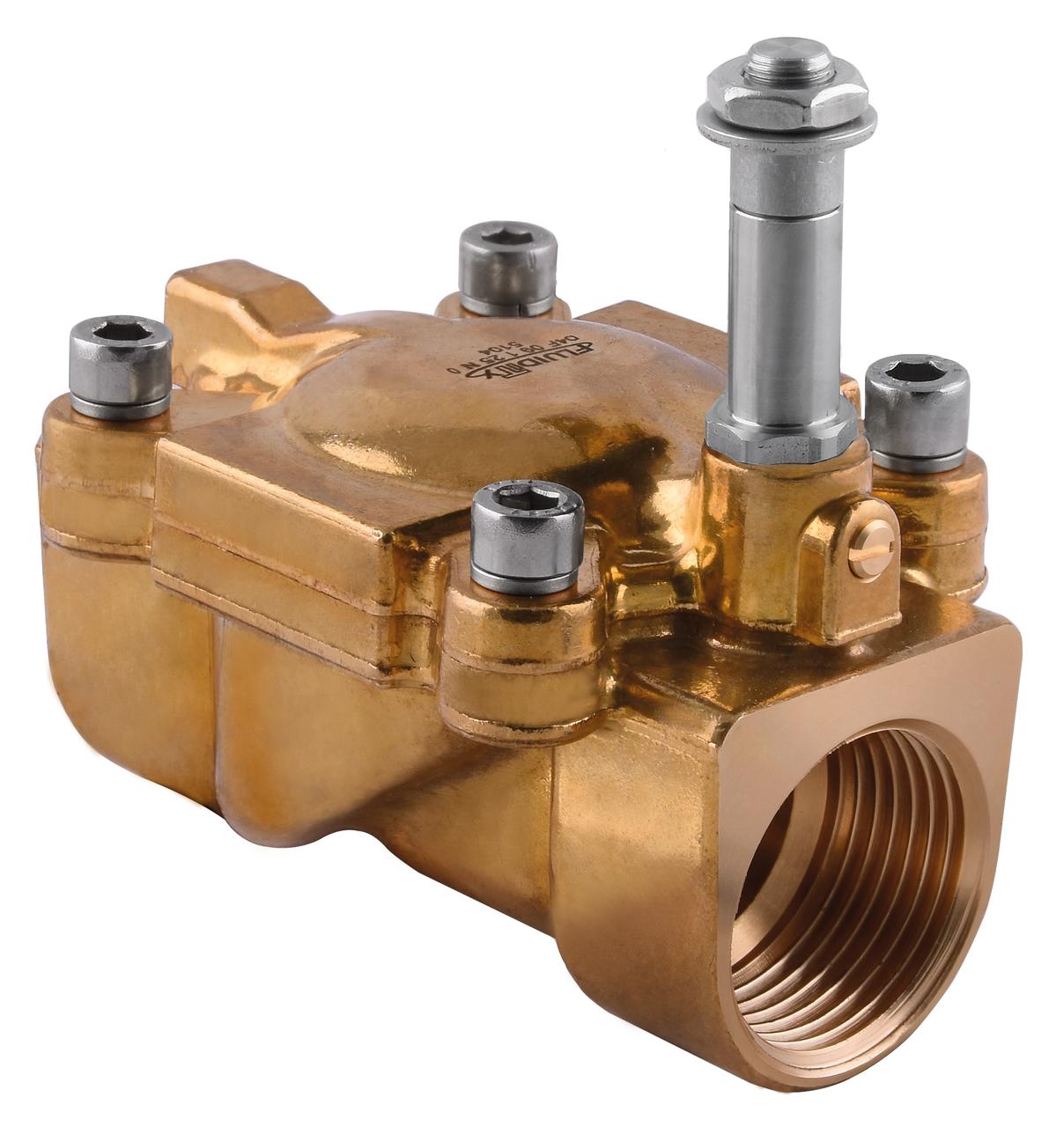

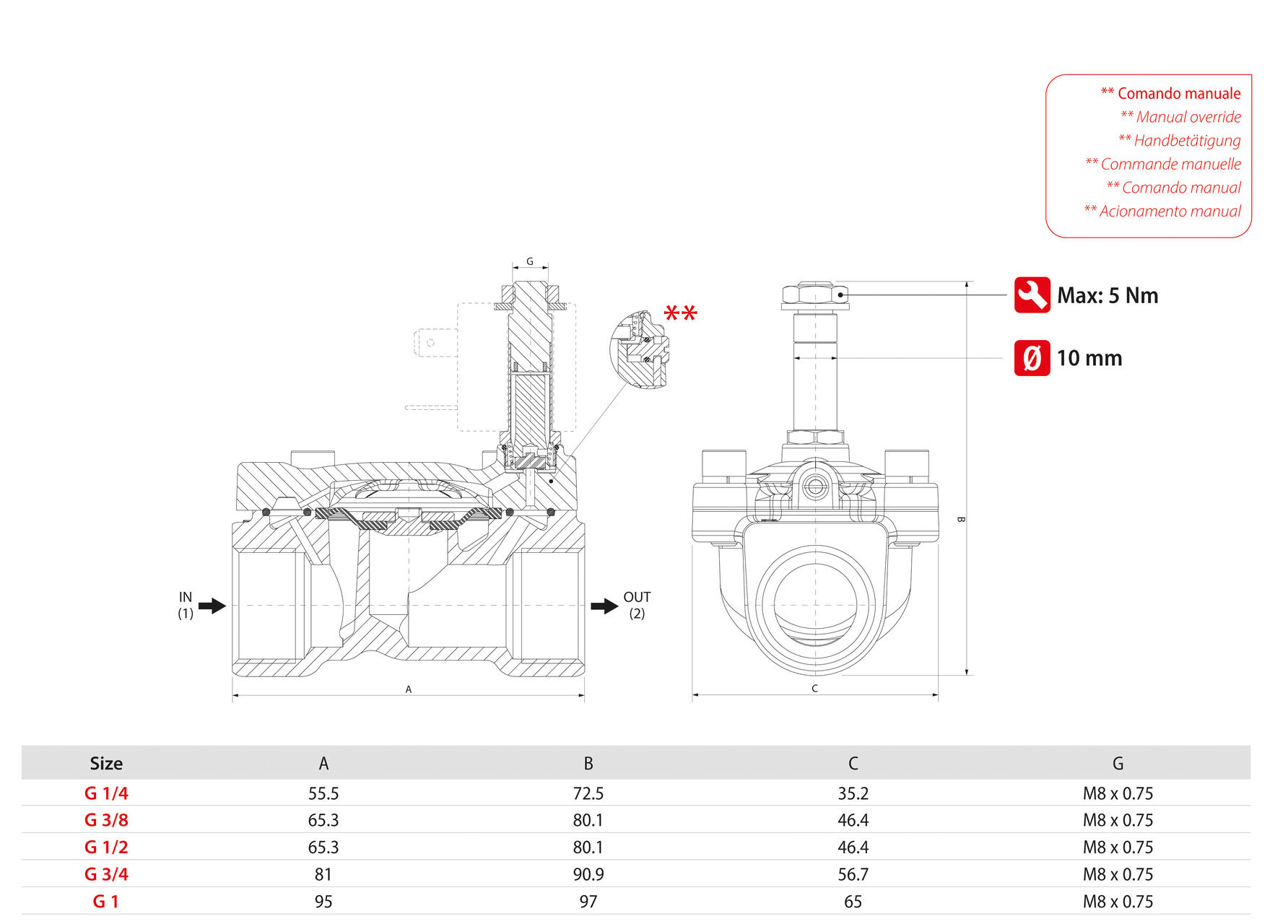

SERVO-ASSISTED SOLENOID VALVES WITH SPEED REGULATOR
Technical characteristics / catalogAignep Scan Labels Certifications
| Code | Draw | Version | Sealing material | Temperature | Port size | Ø Orifice (mm) | Viscosity (cSt) | Kv (m3/h) | OPD (ΔP) - DC (6.5 W) | OPD (ΔP) - DC (8 W) | OPD (ΔP) - AC (7.5 VA) | OPD (ΔP) - AC (11 VA) | OPD (ΔP) - DC (5.3 W) - Atex Ex m | OPD (ΔP) - AC (5.3 W) - Atex Ex m | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04F 07 1 18 N T | Download | T | NBR | -10°C +90°C | 3/4" | 18 | 25 | 5.56 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 V T | Download | T | FKM | -10°C +140°C | 3/4" | 18 | 25 | 5.56 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 E T | Download | T | EPDM | -10°C +140°C | 3/4" | 18 | 25 | 5.56 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 N T | Download | T | NBR | -10°C +90°C | 1" | 25 | 25 | 10.97 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 V T | Download | T | FKM | -10°C +140°C | 1" | 25 | 25 | 10.97 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 E T | Download | T | EPDM | -10°C +140°C | 1" | 25 | 25 | 10.97 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 N 5 | Download | 5 | NBR | -10°C +90°C | 3/4" | 18 | 25 | 4.91 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 V 5 | Download | 5 | FKM | -10°C +140°C | 3/4" | 18 | 25 | 4.91 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 E 5 | Download | 5 | EPDM | -10°C +140°C | 3/4" | 18 | 25 | 4.91 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 N 5 | Download | 5 | NBR | -10°C +90°C | 1" | 25 | 25 | 9.32 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 V 5 | Download | 5 | FKM | -10°C +140°C | 1" | 25 | 25 | 9.32 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 E 5 | Download | 5 | EPDM | -10°C +140°C | 1" | 25 | 25 | 9.32 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 N 1 | Download | 1 | NBR | -10°C +90°C | 3/4" | 18 | 25 | 5.56 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 V 1 | Download | 1 | FKM | -10°C +140°C | 3/4" | 18 | 25 | 5.56 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 E 1 | Download | 1 | EPDM | -10°C +140°C | 3/4" | 18 | 25 | 5.56 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 N 1 | Download | 1 | NBR | -10°C +90°C | 1" | 25 | 25 | 10.97 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 V 1 | Download | 1 | FKM | -10°C +140°C | 1" | 25 | 25 | 10.97 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 E 1 | Download | 1 | EPDM | -10°C +140°C | 1" | 25 | 25 | 10.97 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 N 3 | Download | 3 | NBR | -10°C +90°C | 3/4" | 18 | 25 | 4.91 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 V 3 | Download | 3 | FKM | -10°C +140°C | 3/4" | 18 | 25 | 4.91 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 07 1 18 E 3 | Download | 3 | EPDM | -10°C +140°C | 3/4" | 18 | 25 | 4.91 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 N 3 | Download | 3 | NBR | -10°C +90°C | 1" | 25 | 25 | 9.32 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 V 3 | Download | 3 | FKM | -10°C +140°C | 1" | 25 | 25 | 9.32 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
| 04F 09 1 25 E 3 | Download | 3 | EPDM | -10°C +140°C | 1" | 25 | 25 | 9.32 | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 0.15 - 16 bar | 0.15 - 18 bar | 1 |
T = Without manual override
5 = Without manual override and with reinforced and guided diaphgram
1 = With manual override
3 = With manual override and with reinforced and guided diaphgram
