Serie 01F - 3/2 NC

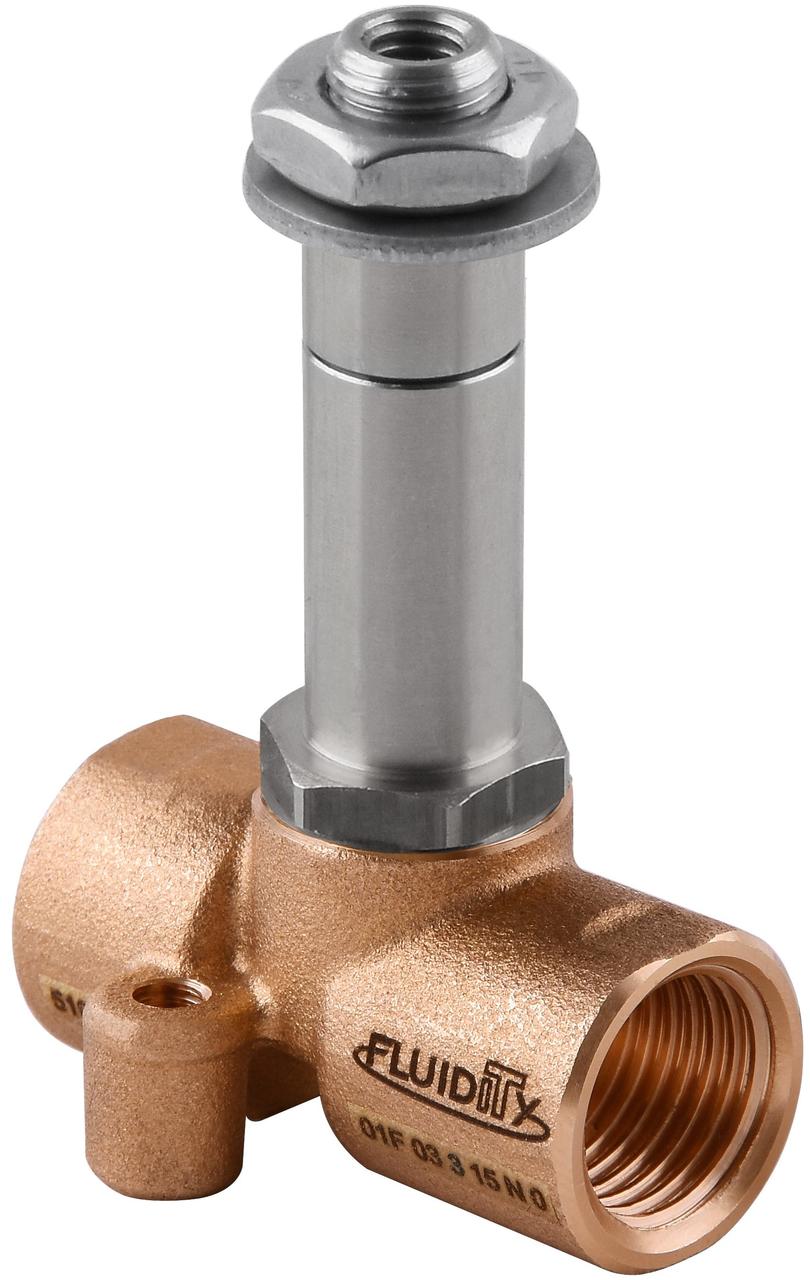

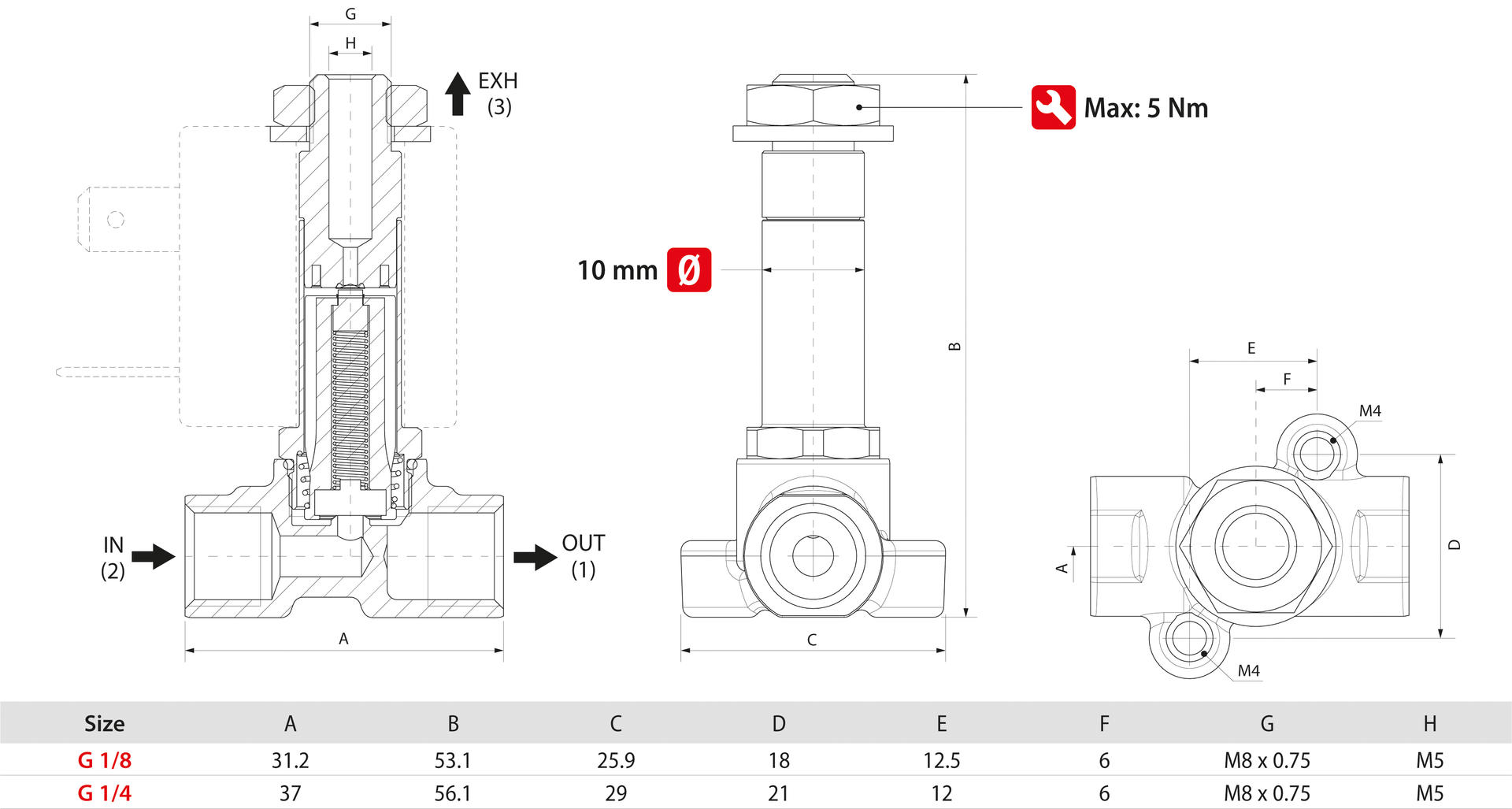

DIRECT ACTING SOLENOID VALVES
Technical characteristics / catalogAignep Scan Labels Certifications
| Code | Draw | Sealing material | Temperature | Port size | Ø Orifice - IN/EXH (mm) | Viscosity (cSt) | Kv - IN/EXH (m3/h) | OPD (ΔP) - DC (6.5 W) | OPD (ΔP) - DC (8 W) | OPD (ΔP) - AC (7.5 VA) | OPD (ΔP) - AC (11 VA) | OPD (ΔP) - DC (5.3 W) - Atex Ex m | OPD (ΔP) - AC (5.3 W) - Atex Ex m | Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01F 02 3 15 N 0 | Download | Show image | NBR | -10°C +90°C | 1/8" | 1.5 / 1.4 | 25 | 0.06 / 0.05 | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 1 |
| 01F 02 3 15 V 0 | Download | Show image | FKM | -10°C +140°C | 1/8" | 1.5 / 1.4 | 25 | 0.06 / 0.05 | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 1 |
| 01F 02 3 15 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/8" | 1.5 / 1.4 | 25 | 0.06 / 0.05 | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 1 |
| 01F 02 3 02 N 0 | Download | Show image | NBR | -10°C +90°C | 1/8" | 2 / 1.4 | 25 | 0.09 / 0.05 | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 1 |
| 01F 02 3 02 V 0 | Download | Show image | FKM | -10°C +140°C | 1/8" | 2 / 1.4 | 25 | 0.09 / 0.05 | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 1 |
| 01F 02 3 02 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/8" | 2 / 1.4 | 25 | 0.09 / 0.05 | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 1 |
| 01F 02 3 25 N 0 | Download | Show image | NBR | -10°C +90°C | 1/8" | 2.5 / 1.4 | 25 | 0.15 / 0.05 | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 1 |
| 01F 02 3 25 V 0 | Download | Show image | FKM | -10°C +140°C | 1/8" | 2.5 / 1.4 | 25 | 0.15 / 0.05 | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 1 |
| 01F 02 3 25 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/8" | 2.5 / 1.4 | 25 | 0.15 / 0.05 | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 1 |
| 01F 02 3 03 N 0 | Download | Show image | NBR | -10°C +90°C | 1/8" | 3 / 1.4 | 25 | 0.20 / 0.05 | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 1 |
| 01F 02 3 03 V 0 | Download | Show image | FKM | -10°C +140°C | 1/8" | 3 / 1.4 | 25 | 0.20 / 0.05 | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 1 |
| 01F 02 3 03 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/8" | 3 / 1.4 | 25 | 0.20 / 0.05 | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 1 |
| 01F 02 3 04 N 0 | Download | Show image | NBR | -10°C +90°C | 1/8" | 4 / 1.4 | 25 | 0.30 / 0.05 | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 1 |
| 01F 02 3 04 V 0 | Download | Show image | FKM | -10°C +140°C | 1/8" | 4 / 1.4 | 25 | 0.30 / 0.05 | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 1 |
| 01F 02 3 04 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/8" | 4 / 1.4 | 25 | 0.30 / 0.05 | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 1 |
| 01F 03 3 15 N 0 | Download | Show image | NBR | -10°C +90°C | 1/4" | 1.5 / 1.4 | 25 | 0.06 / 0.05 | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 1 |
| 01F 03 3 15 V 0 | Download | Show image | FKM | -10°C +140°C | 1/4" | 1.5 / 1.4 | 25 | 0.06 / 0.05 | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 1 |
| 01F 03 3 15 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/4" | 1.5 / 1.4 | 25 | 0.06 / 0.05 | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 0 - 13.5 bar | 1 |
| 01F 03 3 02 N 0 | Download | Show image | NBR | -10°C +90°C | 1/4" | 2 / 1.4 | 25 | 0.09 / 0.05 | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 1 |
| 01F 03 3 02 V 0 | Download | Show image | FKM | -10°C +140°C | 1/4" | 2 / 1.4 | 25 | 0.09 / 0.05 | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 1 |
| 01F 03 3 02 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/4" | 2 / 1.4 | 25 | 0.09 / 0.05 | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 0 - 8 bar | 1 |
| 01F 03 3 25 N 0 | Download | Show image | NBR | -10°C +90°C | 1/4" | 2.5 / 1.4 | 25 | 0.15 / 0.05 | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 1 |
| 01F 03 3 25 V 0 | Download | Show image | FKM | -10°C +140°C | 1/4" | 2.5 / 1.4 | 25 | 0.15 / 0.05 | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 1 |
| 01F 03 3 25 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/4" | 2.5 / 1.4 | 25 | 0.15 / 0.05 | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 0 - 5 bar | 1 |
| 01F 03 3 03 N 0 | Download | Show image | NBR | -10°C +90°C | 1/4" | 3 / 1.4 | 25 | 0.20 / 0.05 | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 1 |
| 01F 03 3 03 V 0 | Download | Show image | FKM | -10°C +140°C | 1/4" | 3 / 1.4 | 25 | 0.20 / 0.05 | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 1 |
| 01F 03 3 03 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/4" | 3 / 1.4 | 25 | 0.20 / 0.05 | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 0 - 3.5 bar | 1 |
| 01F 03 3 04 N 0 | Download | Show image | NBR | -10°C +90°C | 1/4" | 4 / 1.4 | 25 | 0.30 / 0.05 | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 1 |
| 01F 03 3 04 V 0 | Download | Show image | FKM | -10°C +140°C | 1/4" | 4 / 1.4 | 25 | 0.30 / 0.05 | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 1 |
| 01F 03 3 04 E 0 | Download | Show image | EPDM | -10°C +140°C | 1/4" | 4 / 1.4 | 25 | 0.30 / 0.05 | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 0 - 1 bar | 1 |
