Serie 01F - 2/2 NC
DIRECT ACTING SOLENOID VALVES

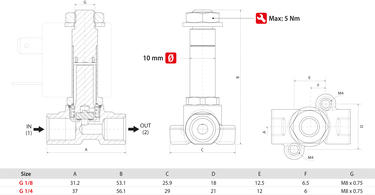

Technical characteristics / catalogAignep Scan Labels Certifications
| Code | Draw | Sealing material | Temperature | Port size | Ø Orifice (mm) | Viscosity (cSt) | Kv (m3/h) | OPD (ΔP) - DC (6.5 W) | OPD (ΔP) - DC (8 W) | OPD (ΔP) - AC (7.5 VA) | OPD (ΔP) - AC (11 VA) | OPD (ΔP) - DC (5.3 W) - Atex Ex m | OPD (ΔP) - AC (5.3 W) - Atex Ex m | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01F 02 1 15 N 0 | Download | NBR | -10°C +90°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | 1 |
| 01F 02 1 15 V 0 | Download | FKM | -10°C +140°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | 1 |
| 01F 02 1 15 E 0 | Download | EPDM | -10°C +140°C | 1/8" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | 1 |
| 01F 02 1 02 N 0 | Download | NBR | -10°C +90°C | 1/8" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | 1 |
| 01F 02 1 02 V 0 | Download | FKM | -10°C +140°C | 1/8" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | 1 |
| 01F 02 1 02 E 0 | Download | EPDM | -10°C +140°C | 1/8" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | 1 |
| 01F 02 1 25 N 0 | Download | NBR | -10°C +90°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | 1 |
| 01F 02 1 25 V 0 | Download | FKM | -10°C +140°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | 1 |
| 01F 02 1 25 E 0 | Download | EPDM | -10°C +140°C | 1/8" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | 1 |
| 01F 02 1 03 N 0 | Download | NBR | -10°C +90°C | 1/8" | 3 | 53 | 0.2 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | 1 |
| 01F 02 1 03 V 0 | Download | FKM | -10°C +140°C | 1/8" | 3 | 53 | 0.2 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | 1 |
| 01F 02 1 03 E 0 | Download | EPDM | -10°C +140°C | 1/8" | 3 | 53 | 0.2 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | 1 |
| 01F 02 1 04 N 0 | Download | NBR | -10°C +90°C | 1/8" | 4 | 53 | 0.3 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | 1 |
| 01F 02 1 04 V 0 | Download | FKM | -10°C +140°C | 1/8" | 4 | 53 | 0.3 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | 1 |
| 01F 02 1 04 E 0 | Download | EPDM | -10°C +140°C | 1/8" | 4 | 53 | 0.3 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | 1 |
| 01F 03 1 15 N 0 | Download | NBR | -10°C +90°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | 1 |
| 01F 03 1 15 V 0 | Download | FKM | -10°C +140°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | 1 |
| 01F 03 1 15 E 0 | Download | EPDM | -10°C +140°C | 1/4" | 1.5 | 25 | 0.06 | 0 - 16 bar | 0 - 40 bar | 0 - 30 bar | 0 - 40 bar | 0 - 40 bar | 0 - 40 bar | 1 |
| 01F 03 1 02 N 0 | Download | NBR | -10°C +90°C | 1/4" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | 1 |
| 01F 03 1 02 V 0 | Download | FKM | -10°C +140°C | 1/4" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | 1 |
| 01F 03 1 02 E 0 | Download | EPDM | -10°C +140°C | 1/4" | 2 | 37 | 0.09 | 0 - 12 bar | 0 - 30 bar | 0 - 25 bar | 0 - 40 bar | 0 - 18 bar | 0 - 35 bar | 1 |
| 01F 03 1 25 N 0 | Download | NBR | -10°C +90°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | 1 |
| 01F 03 1 25 V 0 | Download | FKM | -10°C +140°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | 1 |
| 01F 03 1 25 E 0 | Download | EPDM | -10°C +140°C | 1/4" | 2.5 | 53 | 0.15 | 0 - 4.5 bar | 0 - 13 bar | 0 - 18 bar | 0 - 30 bar | 0 - 6 bar | 0 - 12 bar | 1 |
| 01F 03 1 03 N 0 | Download | NBR | -10°C +90°C | 1/4" | 3 | 53 | 0.2 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | 1 |
| 01F 03 1 03 V 0 | Download | FKM | -10°C +140°C | 1/4" | 3 | 53 | 0.2 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | 1 |
| 01F 03 1 03 E 0 | Download | EPDM | -10°C +140°C | 1/4" | 3 | 53 | 0.2 | 0 - 3 bar | 0 - 7 bar | 0 - 10 bar | 0 - 16 bar | 0 - 3 bar | 0 - 5 bar | 1 |
| 01F 03 1 04 N 0 | Download | NBR | -10°C +90°C | 1/4" | 4 | 53 | 0.3 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | 1 |
| 01F 03 1 04 V 0 | Download | FKM | -10°C +140°C | 1/4" | 4 | 53 | 0.3 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | 1 |
| 01F 03 1 04 E 0 | Download | EPDM | -10°C +140°C | 1/4" | 4 | 53 | 0.3 | 0 - 1 bar | 0 - 2.5 bar | 0 - 4 bar | 0 - 8 bar | 0 - 1 bar | 0 - 2.5 bar | 1 |
