T030

FILTER REGULATOR

Technical characteristics / catalogAignep Scan Labels Certifications
FILTER REGULATOR
FILTER REGULATOR

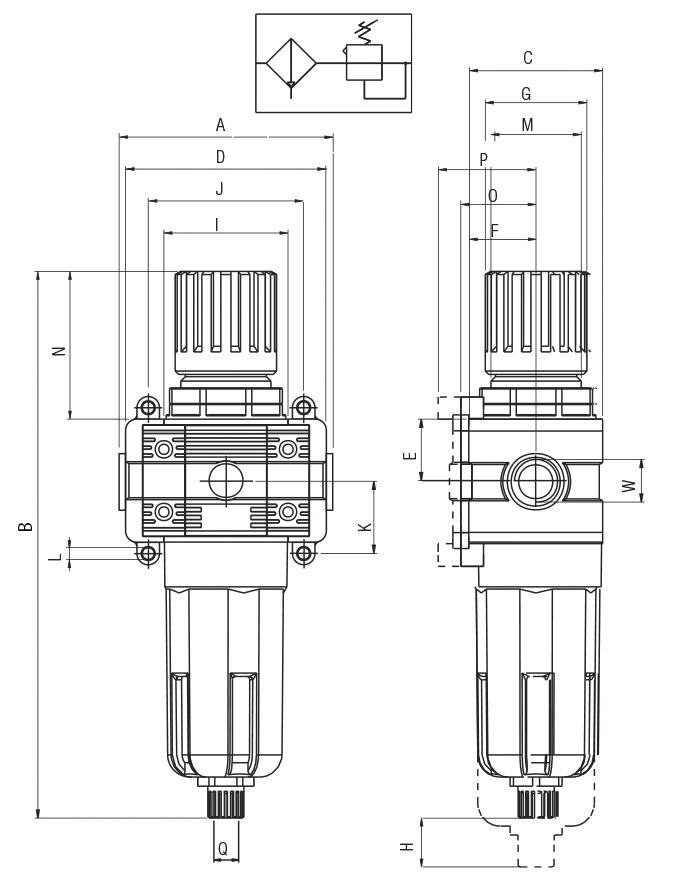

Code  Draw Size Thread Filtration Regulation Flow Rate Exhaust A B C D W E F G H I J K L M N O P Q
T030 102 111 000     FR 1 1/8 5 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 121 000     FR 1 1/8 5 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 131 000     FR 1 1/8 5 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 141 000     FR 1 1/8 5 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 211 000     FR 1 1/8 20 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 221 000     FR 1 1/8 20 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 231 000     FR 1 1/8 20 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 241 000     FR 1 1/8 20 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 311 000     FR 1 1/8 50µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 321 000     FR 1 1/8 50µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 331 000     FR 1 1/8 50µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 341 000     FR 1 1/8 50µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 111 000     FR 1 1/4 5 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 121 000     FR 1 1/4 5 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 131 000     FR 1 1/4 5 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 141 000     FR 1 1/4 5 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 211 000     FR 1 1/4 20 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 221 000     FR 1 1/4 20 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 231 000     Download FR 1 1/4 20 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 241 000     FR 1 1/4 20 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 311 000     FR 1 1/4 50µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 321 000     FR 1 1/4 50µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 331 000     FR 1 1/4 50µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 341 000     FR 1 1/4 50µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 111 000     FR 1 3/8 5 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 121 000     FR 1 3/8 5 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 131 000     FR 1 3/8 5 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 141 000     FR 1 3/8 5 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 211 000     FR 1 3/8 20 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 221 000     FR 1 3/8 20 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 231 000     Download FR 1 3/8 20 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 241 000     FR 1 3/8 20 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 311 000     FR 1 3/8 50µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 321 000     FR 1 3/8 50µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 331 000     FR 1 3/8 50µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 341 000     FR 1 3/8 50µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 203 111 000     FR 2 1/4 5 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 112 000     FR 2 1/4 5 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 121 000     FR 2 1/4 5 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 122 000     FR 2 1/4 5 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 131 000     FR 2 1/4 5 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 132 000     FR 2 1/4 5 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 141 000     FR 2 1/4 5 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 142 000     FR 2 1/4 5 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 211 000     FR 2 1/4 20 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 212 000     FR 2 1/4 20 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 221 000     FR 2 1/4 20 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 222 000     FR 2 1/4 20 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 231 000     FR 2 1/4 20 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 232 000     FR 2 1/4 20 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 241 000     FR 2 1/4 20 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 242 000     FR 2 1/4 20 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 311 000     FR 2 1/4 50µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 312 000     FR 2 1/4 50µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 321 000     FR 2 1/4 50µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 322 000     FR 2 1/4 50µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 331 000     FR 2 1/4 50µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 332 000     FR 2 1/4 50µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 341 000     FR 2 1/4 50µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 342 000     FR 2 1/4 50µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 111 000     FR 2 3/8 5 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 112 000     FR 2 3/8 5 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 121 000     FR 2 3/8 5 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 122 000     FR 2 3/8 5 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 131 000     FR 2 3/8 5 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 132 000     FR 2 3/8 5 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 141 000     FR 2 3/8 5 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 142 000     FR 2 3/8 5 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 211 000     FR 2 3/8 20 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 212 000     FR 2 3/8 20 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 221 000     FR 2 3/8 20 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 222 000     FR 2 3/8 20 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 231 000     Download FR 2 3/8 20 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 232 000     FR 2 3/8 20 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 241 000     FR 2 3/8 20 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 242 000     FR 2 3/8 20 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 311 000     FR 2 3/8 50µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 312 000     FR 2 3/8 50µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 321 000     FR 2 3/8 50µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 322 000     FR 2 3/8 50µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 331 000     FR 2 3/8 50µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 332 000     FR 2 3/8 50µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 341 000     FR 2 3/8 50µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 342 000     FR 2 3/8 50µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 111 000     FR 2 1/2 5 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 112 000     FR 2 1/2 5 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 121 000     FR 2 1/2 5 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 122 000     FR 2 1/2 5 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 131 000     FR 2 1/2 5 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 132 000     FR 2 1/2 5 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 141 000     FR 2 1/2 5 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 142 000     FR 2 1/2 5 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 211 000     FR 2 1/2 20 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 212 000     FR 2 1/2 20 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 221 000     FR 2 1/2 20 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 222 000     FR 2 1/2 20 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 231 000     Download FR 2 1/2 20 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 232 000     Download FR 2 1/2 20 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 241 000     FR 2 1/2 20 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 242 000     FR 2 1/2 20 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 311 000     FR 2 1/2 50µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 312 000     FR 2 1/2 50µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 321 000     FR 2 1/2 50µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 322 000     FR 2 1/2 50µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 331 000     FR 2 1/2 50µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 332 000     FR 2 1/2 50µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 341 000     FR 2 1/2 50µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 342 000     FR 2 1/2 50µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 305 111 000     FR 3 1/2 5 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 112 000     FR 3 1/2 5 µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 121 000     FR 3 1/2 5 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 122 000     FR 3 1/2 5 µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 131 000     FR 3 1/2 5 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 132 000     FR 3 1/2 5 µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 141 000     FR 3 1/2 5 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 142 000     FR 3 1/2 5 µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 211 000     FR 3 1/2 20 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 212 000     FR 3 1/2 20 µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 221 000     FR 3 1/2 20 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 222 000     FR 3 1/2 20 µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 231 000     FR 3 1/2 20 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 232 000     FR 3 1/2 20 µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 241 000     FR 3 1/2 20 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 242 000     FR 3 1/2 20 µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 311 000     FR 3 1/2 50µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 312 000     FR 3 1/2 50µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 321 000     FR 3 1/2 50µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 322 000     FR 3 1/2 50µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 331 000     FR 3 1/2 50µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 332 000     FR 3 1/2 50µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 341 000     FR 3 1/2 50µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 342 000     FR 3 1/2 50µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 111 000     FR 3 3/4 5 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 112 000     FR 3 3/4 5 µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 121 000     FR 3 3/4 5 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 122 000     FR 3 3/4 5 µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 131 000     FR 3 3/4 5 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 132 000     FR 3 3/4 5 µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 141 000     FR 3 3/4 5 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 142 000     FR 3 3/4 5 µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 211 000     FR 3 3/4 20 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 212 000     FR 3 3/4 20 µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 221 000     FR 3 3/4 20 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 222 000     FR 3 3/4 20 µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 231 000     Download FR 3 3/4 20 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 232 000     FR 3 3/4 20 µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 241 000     FR 3 3/4 20 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 242 000     FR 3 3/4 20 µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 311 000     FR 3 3/4 50µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 312 000     FR 3 3/4 50µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 321 000     FR 3 3/4 50µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 322 000     FR 3 3/4 50µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 331 000     FR 3 3/4 50µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 332 000     FR 3 3/4 50µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 341 000     FR 3 3/4 50µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 342 000     FR 3 3/4 50µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 111 000     FR 3 1" 5 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 112 000     FR 3 1" 5 µm 0÷2 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 121 000     FR 3 1" 5 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 122 000     FR 3 1" 5 µm 0÷4 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 131 000     FR 3 1" 5 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 132 000     FR 3 1" 5 µm 0÷8 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 141 000     FR 3 1" 5 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 142 000     FR 3 1" 5 µm 0÷12 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 211 000     FR 3 1" 20 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 212 000     FR 3 1" 20 µm 0÷2 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 221 000     FR 3 1" 20 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 222 000     FR 3 1" 20 µm 0÷4 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 231 000     Download FR 3 1" 20 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 232 000     Download FR 3 1" 20 µm 0÷8 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 241 000     FR 3 1" 20 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 242 000     FR 3 1" 20 µm 0÷12 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 311 000     FR 3 1" 50µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 312 000     FR 3 1" 50µm 0÷2 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 321 000     FR 3 1" 50µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 322 000     FR 3 1" 50µm 0÷4 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 331 000     FR 3 1" 50µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 332 000     FR 3 1" 50µm 0÷8 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 341 000     FR 3 1" 50µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 342 000     FR 3 1" 50µm 0÷12 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
Code Draw Size Thread Filtration Regulation Flow Rate Exhaust A B C D W E F G H I J K L M N O P Q
T030 102 111 000 FR 1 1/8 5 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 121 000 FR 1 1/8 5 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 131 000 FR 1 1/8 5 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 141 000 FR 1 1/8 5 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 211 000 FR 1 1/8 20 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 221 000 FR 1 1/8 20 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 231 000 FR 1 1/8 20 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 241 000 FR 1 1/8 20 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 311 000 FR 1 1/8 50µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 321 000 FR 1 1/8 50µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 331 000 FR 1 1/8 50µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 102 341 000 FR 1 1/8 50µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 111 000 FR 1 1/4 5 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 121 000 FR 1 1/4 5 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 131 000 FR 1 1/4 5 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 141 000 FR 1 1/4 5 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 211 000 FR 1 1/4 20 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 221 000 FR 1 1/4 20 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 231 000 Download FR 1 1/4 20 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 241 000 FR 1 1/4 20 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 311 000 FR 1 1/4 50µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 321 000 FR 1 1/4 50µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 331 000 FR 1 1/4 50µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 103 341 000 FR 1 1/4 50µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 1/4" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 111 000 FR 1 3/8 5 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 121 000 FR 1 3/8 5 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 131 000 FR 1 3/8 5 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 141 000 FR 1 3/8 5 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 211 000 FR 1 3/8 20 µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 221 000 FR 1 3/8 20 µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 231 000 Download FR 1 3/8 20 µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 241 000 FR 1 3/8 20 µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 311 000 FR 1 3/8 50µm 0÷2 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 321 000 FR 1 3/8 50µm 0÷4 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 331 000 FR 1 3/8 50µm 0÷8 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 104 341 000 FR 1 3/8 50µm 0÷12 Bar 1650 Nl/min Semiautomatic/Manual 75,5 198 45 72 3/8" 21 22,5 36 39 43 54 26 Ø X M4 M32X1,5 52 26 32,5 1/8
T030 203 111 000 FR 2 1/4 5 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 112 000 FR 2 1/4 5 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 121 000 FR 2 1/4 5 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 122 000 FR 2 1/4 5 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 131 000 FR 2 1/4 5 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 132 000 FR 2 1/4 5 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 141 000 FR 2 1/4 5 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 142 000 FR 2 1/4 5 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 211 000 FR 2 1/4 20 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 212 000 FR 2 1/4 20 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 221 000 FR 2 1/4 20 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 222 000 FR 2 1/4 20 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 231 000 FR 2 1/4 20 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 232 000 FR 2 1/4 20 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 241 000 FR 2 1/4 20 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 242 000 FR 2 1/4 20 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 311 000 FR 2 1/4 50µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 312 000 FR 2 1/4 50µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 321 000 FR 2 1/4 50µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 322 000 FR 2 1/4 50µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 331 000 FR 2 1/4 50µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 332 000 FR 2 1/4 50µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 341 000 FR 2 1/4 50µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 203 342 000 FR 2 1/4 50µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/4" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 111 000 FR 2 3/8 5 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 112 000 FR 2 3/8 5 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 121 000 FR 2 3/8 5 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 122 000 FR 2 3/8 5 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 131 000 FR 2 3/8 5 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 132 000 FR 2 3/8 5 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 141 000 FR 2 3/8 5 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 142 000 FR 2 3/8 5 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 211 000 FR 2 3/8 20 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 212 000 FR 2 3/8 20 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 221 000 FR 2 3/8 20 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 222 000 FR 2 3/8 20 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 231 000 Download FR 2 3/8 20 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 232 000 FR 2 3/8 20 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 241 000 FR 2 3/8 20 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 242 000 FR 2 3/8 20 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 311 000 FR 2 3/8 50µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 312 000 FR 2 3/8 50µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 321 000 FR 2 3/8 50µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 322 000 FR 2 3/8 50µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 331 000 FR 2 3/8 50µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 332 000 FR 2 3/8 50µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 341 000 FR 2 3/8 50µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 204 342 000 FR 2 3/8 50µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 3/8" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 111 000 FR 2 1/2 5 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 112 000 FR 2 1/2 5 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 121 000 FR 2 1/2 5 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 122 000 FR 2 1/2 5 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 131 000 FR 2 1/2 5 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 132 000 FR 2 1/2 5 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 141 000 FR 2 1/2 5 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 142 000 FR 2 1/2 5 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 211 000 FR 2 1/2 20 µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 212 000 FR 2 1/2 20 µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 221 000 FR 2 1/2 20 µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 222 000 FR 2 1/2 20 µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 231 000 Download FR 2 1/2 20 µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 232 000 Download FR 2 1/2 20 µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 241 000 FR 2 1/2 20 µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 242 000 FR 2 1/2 20 µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 311 000 FR 2 1/2 50µm 0÷2 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 312 000 FR 2 1/2 50µm 0÷2 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 321 000 FR 2 1/2 50µm 0÷4 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 322 000 FR 2 1/2 50µm 0÷4 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 331 000 FR 2 1/2 50µm 0÷8 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 332 000 FR 2 1/2 50µm 0÷8 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 341 000 FR 2 1/2 50µm 0÷12 Bar 3000 Nl/min Semiautomatic/Manual 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 205 342 000 FR 2 1/2 50µm 0÷12 Bar 3000 Nl/min Automatic 89 244.5 59 89 1/2" 27.5 28.5 45 48 55 69 32.5 Ø X M5 M40X1,5 66 32 38.5 1/8
T030 305 111 000 FR 3 1/2 5 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 112 000 FR 3 1/2 5 µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 121 000 FR 3 1/2 5 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 122 000 FR 3 1/2 5 µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 131 000 FR 3 1/2 5 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 132 000 FR 3 1/2 5 µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 141 000 FR 3 1/2 5 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 142 000 FR 3 1/2 5 µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 211 000 FR 3 1/2 20 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 212 000 FR 3 1/2 20 µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 221 000 FR 3 1/2 20 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 222 000 FR 3 1/2 20 µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 231 000 FR 3 1/2 20 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 232 000 FR 3 1/2 20 µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 241 000 FR 3 1/2 20 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 242 000 FR 3 1/2 20 µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 311 000 FR 3 1/2 50µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 312 000 FR 3 1/2 50µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 321 000 FR 3 1/2 50µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 322 000 FR 3 1/2 50µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 331 000 FR 3 1/2 50µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 332 000 FR 3 1/2 50µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 341 000 FR 3 1/2 50µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 305 342 000 FR 3 1/2 50µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 1/2" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 111 000 FR 3 3/4 5 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 112 000 FR 3 3/4 5 µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 121 000 FR 3 3/4 5 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 122 000 FR 3 3/4 5 µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 131 000 FR 3 3/4 5 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 132 000 FR 3 3/4 5 µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 141 000 FR 3 3/4 5 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 142 000 FR 3 3/4 5 µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 211 000 FR 3 3/4 20 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 212 000 FR 3 3/4 20 µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 221 000 FR 3 3/4 20 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 222 000 FR 3 3/4 20 µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 231 000 Download FR 3 3/4 20 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 232 000 FR 3 3/4 20 µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 241 000 FR 3 3/4 20 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 242 000 FR 3 3/4 20 µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 311 000 FR 3 3/4 50µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 312 000 FR 3 3/4 50µm 0÷2 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 321 000 FR 3 3/4 50µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 322 000 FR 3 3/4 50µm 0÷4 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 331 000 FR 3 3/4 50µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 332 000 FR 3 3/4 50µm 0÷8 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 341 000 FR 3 3/4 50µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 307 342 000 FR 3 3/4 50µm 0÷12 Bar 4500 Nl/min Automatic 106 273 70 100 3/4" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 111 000 FR 3 1" 5 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 112 000 FR 3 1" 5 µm 0÷2 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 121 000 FR 3 1" 5 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 122 000 FR 3 1" 5 µm 0÷4 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 131 000 FR 3 1" 5 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 132 000 FR 3 1" 5 µm 0÷8 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 141 000 FR 3 1" 5 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 142 000 FR 3 1" 5 µm 0÷12 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 211 000 FR 3 1" 20 µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 212 000 FR 3 1" 20 µm 0÷2 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 221 000 FR 3 1" 20 µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 222 000 FR 3 1" 20 µm 0÷4 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 231 000 Download FR 3 1" 20 µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 232 000 Download FR 3 1" 20 µm 0÷8 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 241 000 FR 3 1" 20 µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 242 000 FR 3 1" 20 µm 0÷12 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 311 000 FR 3 1" 50µm 0÷2 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 312 000 FR 3 1" 50µm 0÷2 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 321 000 FR 3 1" 50µm 0÷4 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 322 000 FR 3 1" 50µm 0÷4 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 331 000 FR 3 1" 50µm 0÷8 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 332 000 FR 3 1" 50µm 0÷8 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 341 000 FR 3 1" 50µm 0÷12 Bar 4500 Nl/min Semiautomatic/Manual 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
T030 309 342 000 FR 3 1" 50µm 0÷12 Bar 4500 Nl/min Automatic 111 273 70 100 1" 32.5 35 50.5 50 65 79 38 Ø X M6 M47X1,5 75.5 38.5 45 1/8
Print selected labels ()×
