1612

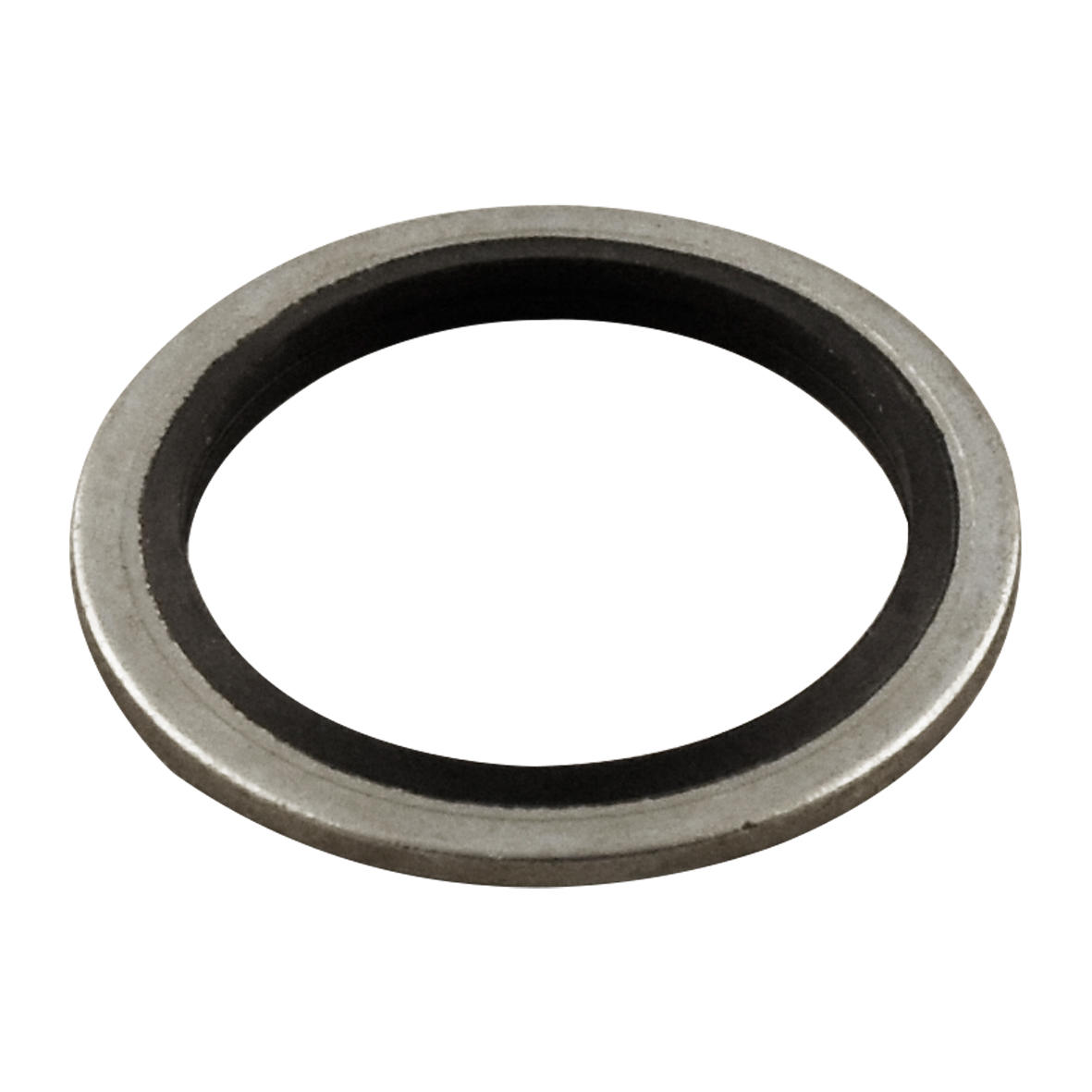

STEEL AND NBR BIMATERIAL WASHER
Technical characteristics / catalogAignep Scan Labels Certifications

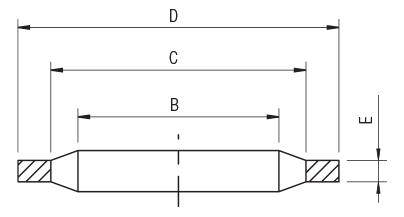

| Code | Draw | Size | B | C | D | E | °C Min | °C Max | Bag |
|---|---|---|---|---|---|---|---|---|---|
| 01612 00 001 | Download | 1/8 | 10,4 | 12 | 14.7 | 1.25 | -30 | +100 | 20 |
| 01612 00 002 | Download | 1/4 | 13,85 | 15.75 | 18.7 | 1.25 | -30 | +100 | 20 |
| 01612 00 003 | Download | 3/8 | 17,35 | 19.25 | 22.7 | 1.25 | -30 | +100 | 20 |
| 01612 00 004 | Download | 1/2 | 21,65 | 23.55 | 26.7 | 1.25 | -30 | +100 | 20 |
| 01612 00 005 | Download | 3/4 | 27,3 | 29.2 | 32.5 | 1.25 | -30 | +100 | 20 |
| 01612 00 006 | Download | 1" | 34,2 | 36.1 | 39.5 | 2 | -30 | +100 | 20 |
