6069

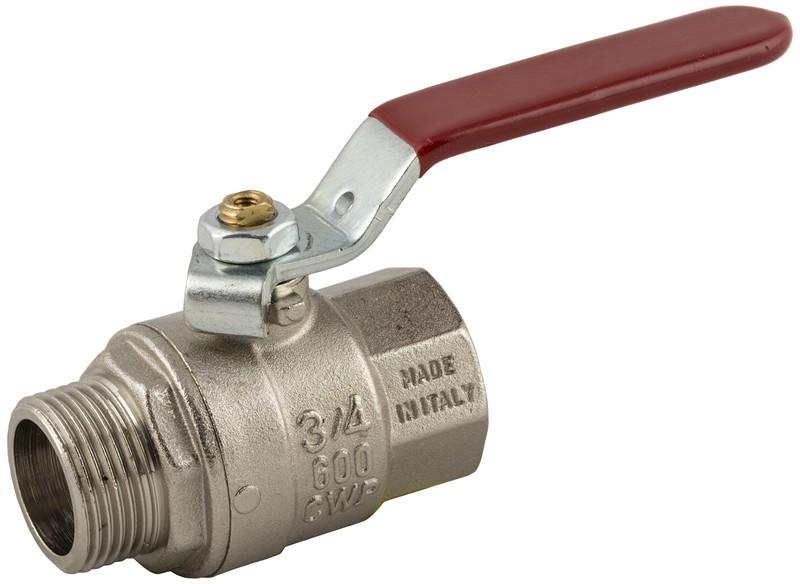

VALVOLA A SFERA MASCHIO G ISO 228 - FEMMINA G ISO 228
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Certificati

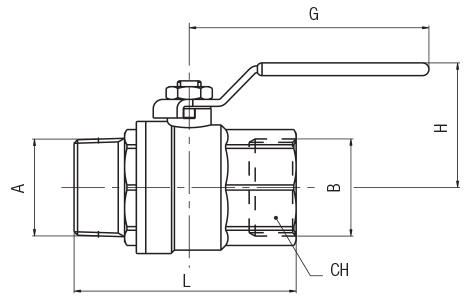

| Codice | Disegno 3D | A | B | D.N. | CH | L | G | H | Confezione |
|---|---|---|---|---|---|---|---|---|---|
| 06069 00 001 | Download | 1/2 | 1/2 | 15 | 25 | 56 | 88 | 47.5 | 10 |
| 06069 00 002 | Download | 3/4 | 3/4 | 20 | 31 | 63,5 | 88 | 51 | 10 |
| 06069 00 003 | Download | 1" | 1" | 25 | 38 | 74 | 105 | 63 | 5 |
| 06069 00 004 | Download | 1" 1/4 | 1" 1/4 | 32 | 48 | 85 | 105 | 68.5 | 2 |
| 06069 00 005 | Download | 1" 1/2 | 1" 1/2 | 40 | 54 | 100 | 134 | 84.5 | 1 |
| 06069 00 006 | Download | 2" | 2" | 50 | 67 | 121,5 | 134 | 92,5 | 1 |
