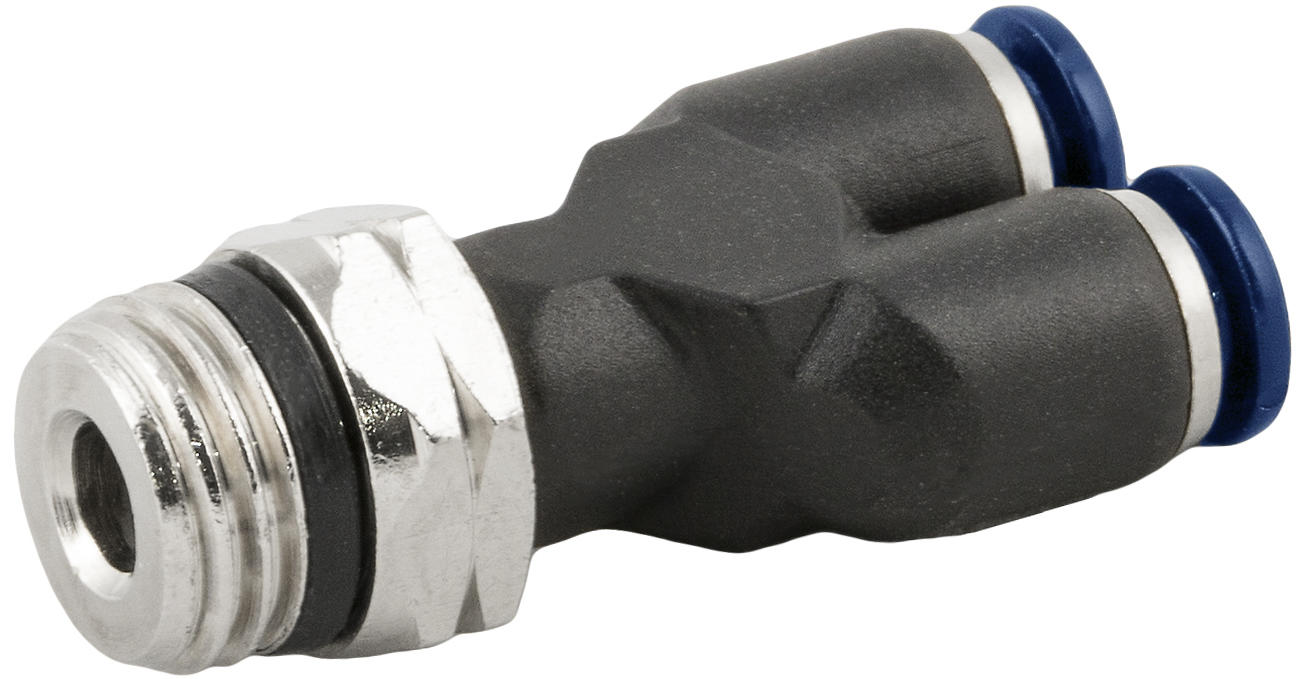

RACCORDO A Y ORIENTABILE MASCHIO "UNIVERSAL SHORT"
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Certificati

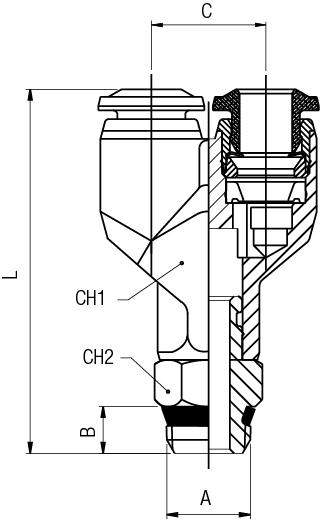

| Codice | Disegno 3D | Tubo | A | B | C | L | CH1 | CH2 | Confezione |
|---|---|---|---|---|---|---|---|---|---|
| 85320 00 001 | Download | 5/32 | 1/8 | 5.5 | 11 | 38 | 10 | 11 | 10 |
| 85320 00 002 | Download | 5/32 | 1/4 | 7 | 11 | 40.5 | 10 | 14 | 10 |
| 85320 00 003 | Download | 1/4 | 1/8 | 5.5 | 13.5 | 43 | 12 | 11 | 10 |
| 85320 00 004 | Download | 1/4 | 1/4 | 7 | 13.5 | 45.5 | 12 | 14 | 10 |
| 85320 00 005 | Download | 5/16 | 1/8 | 5.5 | 15.5 | 46.5 | 14 | 11 | 10 |
| 85320 00 006 | Download | 5/16 | 1/4 | 7 | 15.5 | 49 | 14 | 14 | 10 |
| 85320 00 007 | Download | 5/16 | 3/8 | 7.5 | 15.5 | 49.5 | 14 | 17 | 10 |
| 85320 00 008 | Download | 3/8 | 1/4 | 7 | 19 | 56.5 | 17 | 14 | 10 |
| 85320 00 009 | Download | 3/8 | 3/8 | 7.5 | 19 | 57.5 | 17 | 17 | 10 |
| 85320 00 010 | Download | 3/8 | 1/2 | 9 | 19 | 60 | 17 | 21 | 10 |
| 85320 00 011 | Download | 1/2 | 3/8 | 7.5 | 22 | 66.5 | 20 | 17 | 10 |
| 85320 00 012 | Download | 1/2 | 1/2 | 9 | 22 | 68 | 20 | 21 | 10 |
