50055N

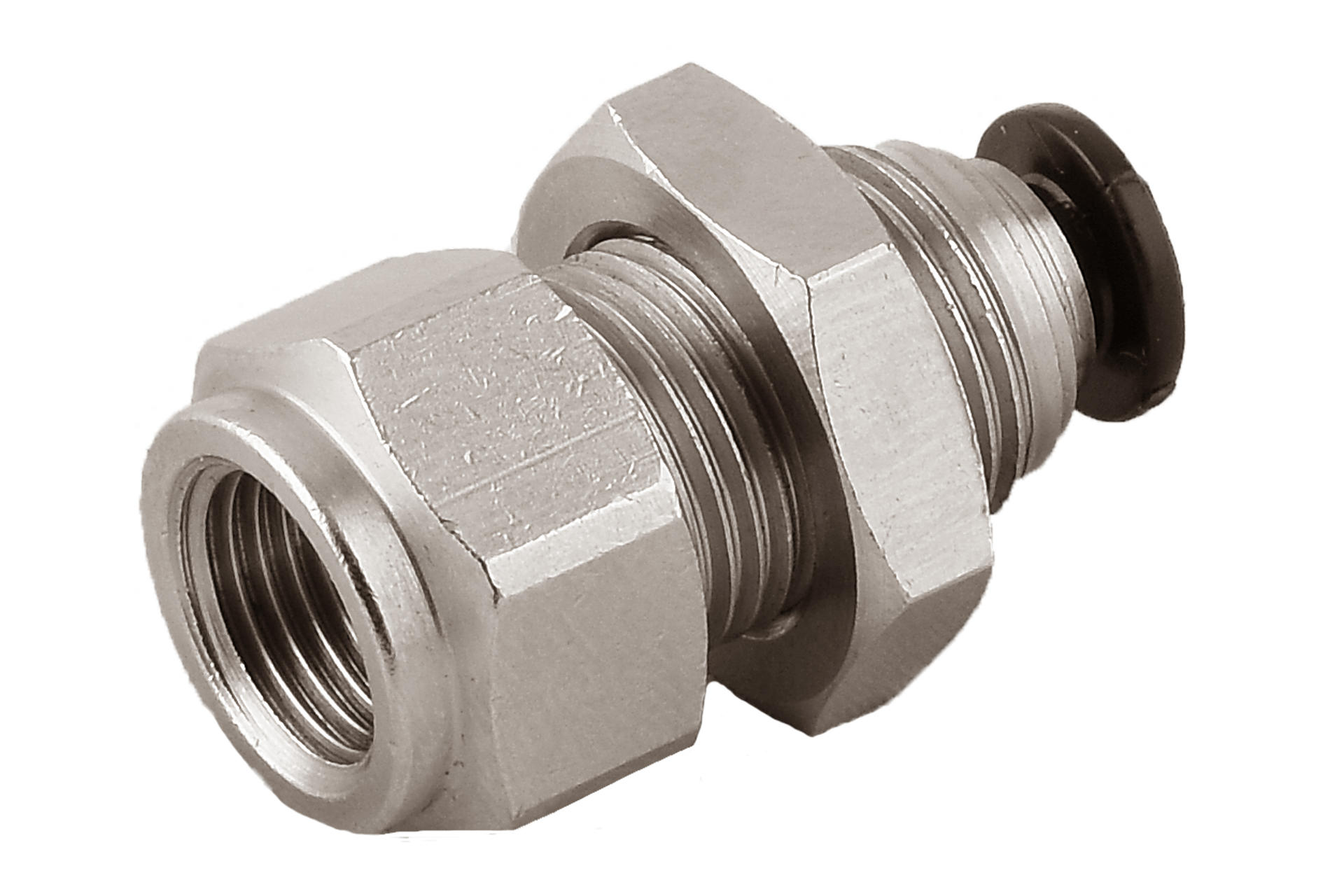

RACCORDO DIRITTO DI ATTRAVERSAMENTO FEMMINA
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Certificati

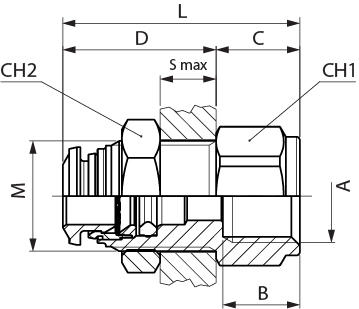

| Codice | Disegno 3D | Tubo | A | B | M | S Max | CH1 | CH2 | C | D | L | Confezione |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50055 00 N01 | Download | 4 | 1/8 | 8,5 | M12X1 | 7 | 15 | 17 | 10 | 19 | 29 | 10 |
| 50055 00 N02 | Download | 6 | 1/8 | 8,5 | M14X1 | 8 | 16 | 17 | 10 | 21 | 31 | 10 |
| 50055 00 N03 | Download | 6 | 1/4 | 11 | M14X1 | 8 | 16 | 17 | 12 | 21 | 33 | 10 |
| 50055 00 N04 | Download | 8 | 1/8 | 8,5 | M16X1 | 8 | 18 | 19 | 10 | 22 | 32 | 10 |
| 50055 00 N05 | Download | 8 | 1/4 | 11 | M16X1 | 8 | 18 | 19 | 12 | 22 | 34 | 10 |
| 50055 00 N06 | Download | 10 | 3/8 | 12 | M20X1 | 9,5 | 24 | 24 | 14 | 25,5 | 39,5 | 10 |
| 50055 00 N07 | Download | 12 | 3/8 | 12 | M22X1 | 10,5 | 24 | 26 | 15 | 27,5 | 42,5 | 10 |
| 50055 00 N08 | Download | 12 | 1/2 | 15 | M22X1 | 10,5 | 24 | 26 | 17 | 27,5 | 44,5 | 10 |
