50920N

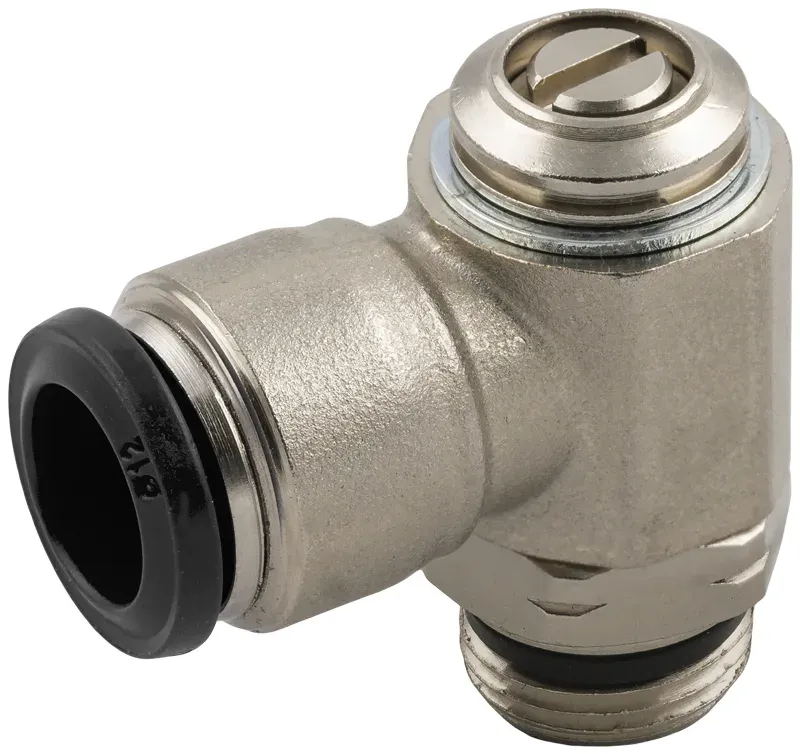

REGOLATORE BIDIREZIONALE ORIENTABILE “UNIVERSAL SHORT” CON SPINTORE NERO, REGOLAZIONE A CACCIAVITE
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Certificati

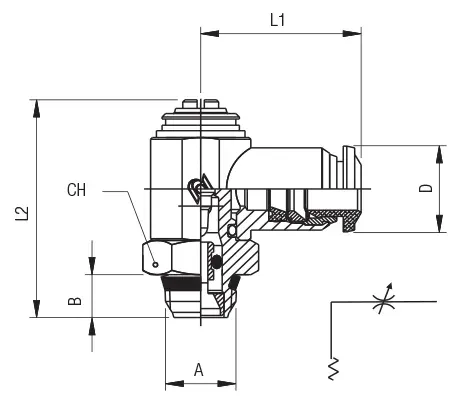

| Codice | Disegno 3D | Tubo | A | B | L1 | L2 | CH | D | Confezione |
|---|---|---|---|---|---|---|---|---|---|
| 50920 00 N01 | Download | 3 | M5 | 4 | 19 | 29.5 | 8 | 10 | 10 |
| 50920 00 N02 | Download | 4 | M5 | 4 | 19 | 29.5 | 8 | 10 | 10 |
| 50920 00 N03 | Download | 4 | 1/8 | 5,5 | 21 | 31 | 14 | 10 | 10 |
| 50920 00 N04 | Download | 5 | M5 | 4 | 20 | 29,5 | 8 | 12.5 | 10 |
| 50920 00 N05 | Download | 5 | 1/8 | 5,5 | 21,5 | 31 | 14 | 12.5 | 10 |
| 50920 00 N06 | Download | 5 | 1/4 | 7 | 24,5 | 36,5 | 17 | 12.5 | 10 |
| 50920 00 N07 | Download | 6 | M5 | 4 | 20,5 | 29,5 | 8 | 12.5 | 10 |
| 50920 00 N08 | Download | 6 | 1/8 | 5,5 | 22,5 | 31 | 14 | 12.5 | 10 |
| 50920 00 N09 | Download | 6 | 1/4 | 7 | 25 | 36,5 | 17 | 12.5 | 10 |
| 50920 00 N10 | Download | 8 | 1/8 | 5,5 | 24 | 31 | 14 | 14 | 10 |
| 50920 00 N11 | Download | 8 | 1/4 | 7 | 26 | 36,5 | 17 | 14 | 10 |
| 50920 00 N16 | Download | 8 | 3/8 | 7,5 | 28,5 | 42,5 | 20 | 14 | 10 |
| 50920 00 N17 | Download | 10 | 1/4 | 7 | 28,5 | 36,5 | 17 | 17 | 10 |
| 50920 00 N12 | Download | 10 | 3/8 | 7,5 | 30,5 | 42,5 | 20 | 17 | 10 |
| 50920 00 N13 | Download | 12 | 3/8 | 7,5 | 32,5 | 42,5 | 20 | 21.5 | 10 |
| 50920 00 N14 | Download | 12 | 1/2 | 9 | 35 | 47 | 24 | 21.5 | 10 |
| 50920 00 N15 | Download | 14 | 1/2 | 9 | 35,5 | 47 | 24 | 21.5 | 10 |
