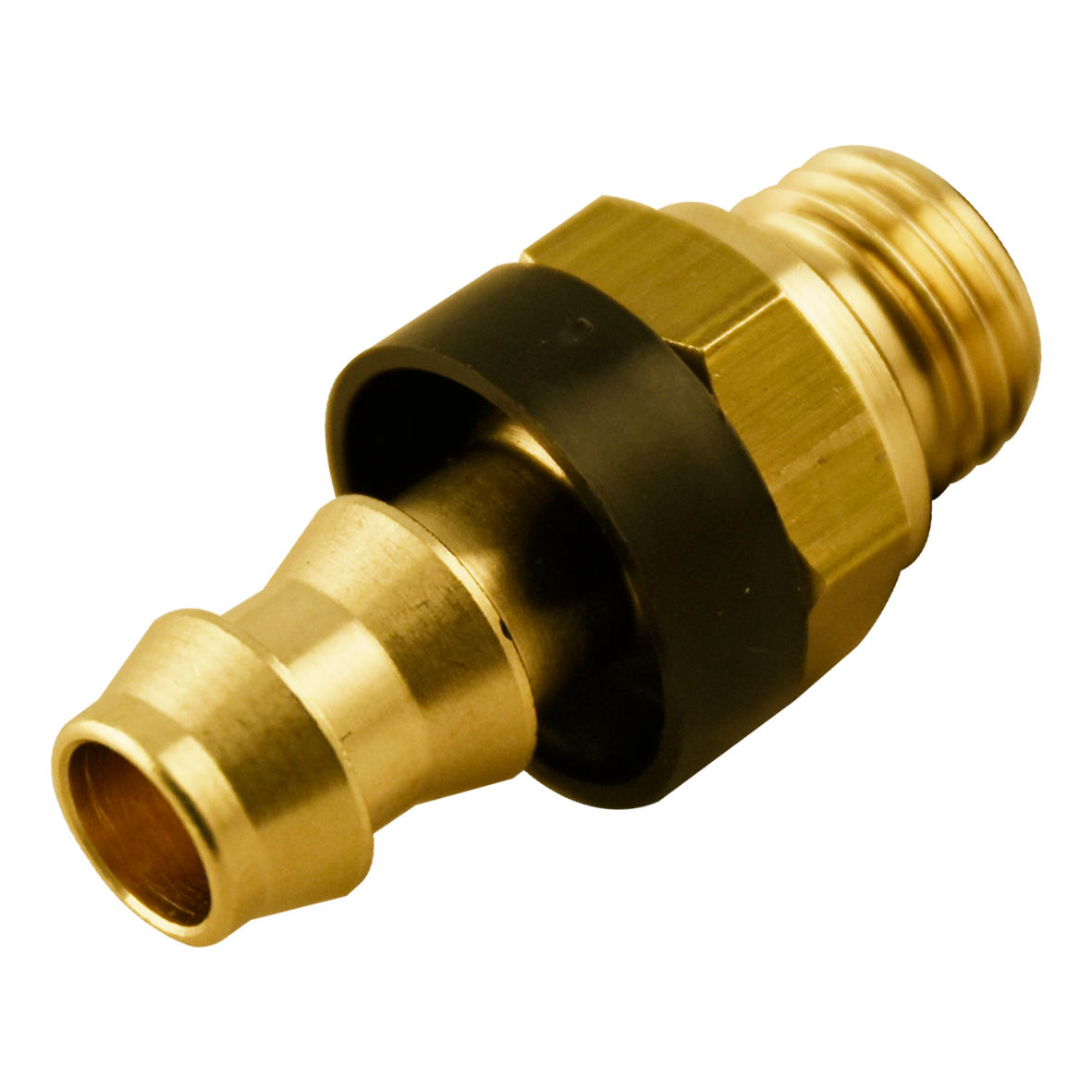

RACCORDO PORTAGOMMA MASCHIO PER TUBO AUTOBLOCCANTE
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Certificati

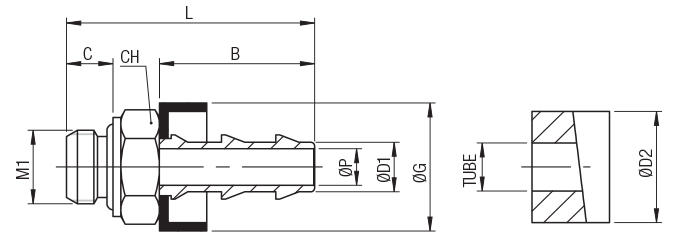

| Codice | Disegno 3D | Tubo | M1 | Ø D1 | Ø D2 | CH | Ø G | L | B | C | Ø P | Confezione |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13810 00 001 | Download | 1/4 | 1/8 | 6.5 | 13 | 13 | 16.7 | 32 | 20 | 6 | 4,8 | 10 |
| 13810 00 002 | Download | 1/4 | 1/4 | 6.5 | 13 | 17 | 16.7 | 35,5 | 20 | 8 | 4,8 | 10 |
| 13810 00 003 | Download | 3/8 | 1/4 | 9.5 | 16 | 17 | 19.5 | 39,5 | 24 | 8 | 7,5 | 10 |
| 13810 00 004 | Download | 3/8 | 3/8 | 9.5 | 16 | 22 | 19.5 | 41 | 24 | 9 | 7,5 | 10 |
| 13810 00 005 | Download | 1/2 | 3/8 | 12.7 | 19 | 22 | 23.5 | 45 | 28 | 9 | 10 | 10 |
| 13810 00 006 | Download | 1/2 | 1/2 | 12.7 | 19 | 27 | 23.5 | 47 | 28 | 10 | 10 | 10 |
| 13810 00 007 | Download | 5/8 | 1/2 | 15.7 | 23 | 27 | 27.3 | 55 | 36,5 | 10 | 13,5 | 10 |
| 13810 00 008 | Download | 5/8 | 3/4 | 15.7 | 23 | 32 | 27.3 | 58,5 | 36,5 | 12 | 13,5 | 10 |
| 13810 00 019 | Download | 3/4 | 1/2 | 18.8 | 27 | 30 | 30.8 | 65 | 43 | 10 | 16 | 10 |
| 13810 00 009 | Download | 3/4 | 3/4 | 18.8 | 27 | 32 | 30.8 | 65 | 43 | 12 | 16 | 10 |
