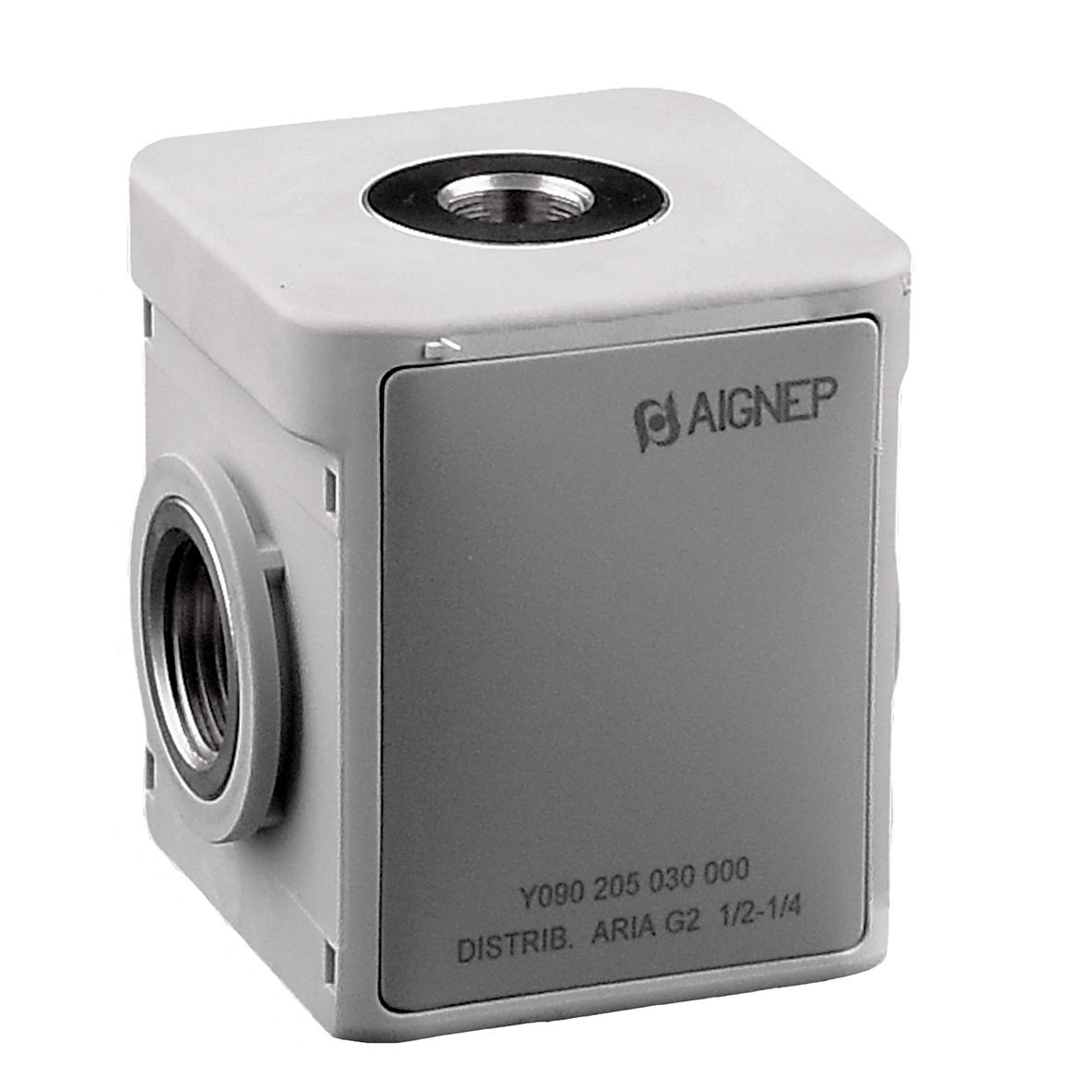

Y090
DISTRIBUTORE D'ARIA
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Istruzioni / Esempio applicativo Certificati

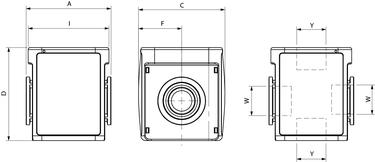

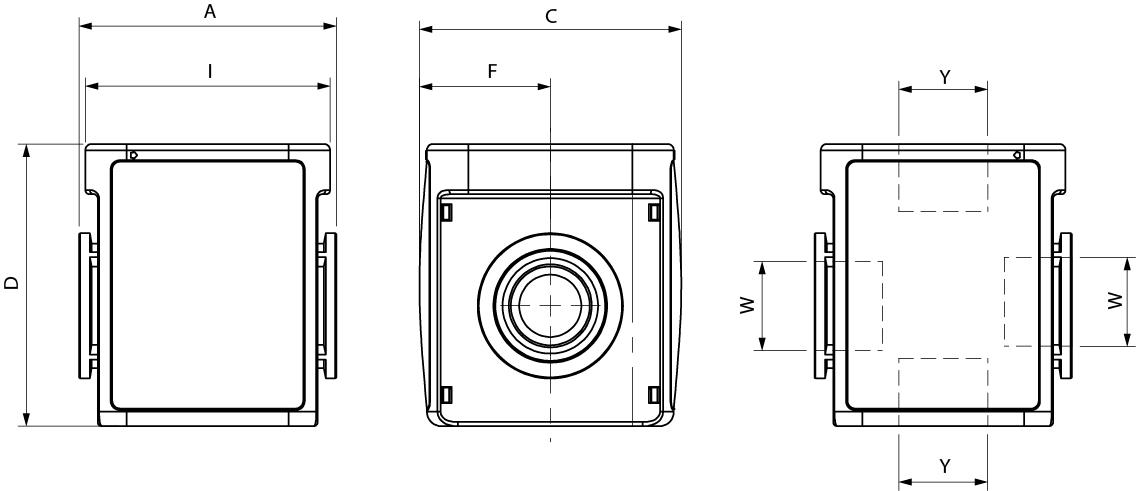

| Codice | Disegno 3D | Misura | Filetto | Portata | A | C | D | W | F | I | Y |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Y090 103 030 000 | Download | DIS 1 | 1/4 - 1/4 | 3400 Nl/min | 51 | 51 | 57 | 1/4 - 3/8 | 25,5 | 47,5 | 1/4 - 3/8 |
| Y090 104 030 000 | DIS 1 | 3/8 - 1/4 | 3400 Nl/min | 51 | 51 | 57 | 1/4 - 3/8 | 25,5 | 47,5 | 1/4 - 3/8 | |
| Y090 104 040 000 | DIS 1 | 3/8 - 3/8 | 3400 Nl/min | 51 | 51 | 57 | 1/4 - 3/8 | 25,5 | 47,5 | 1/4 - 3/8 | |
| Y090 204 030 000 | DIS 2 | 3/8 - 1/4 | 6100 Nl/min | 62 | 63 | 68 | 3/8 - 1/2 | 31,5 | 59 | 1/4 - 3/8 - 1/2 | |
| Y090 204 040 000 | Download | DIS 2 | 3/8 - 3/8 | 6100 Nl/min | 62 | 63 | 68 | 3/8 - 1/2 | 31,5 | 59 | 1/4 - 3/8 - 1/2 |
| Y090 205 030 000 | Download | DIS 2 | 1/2 - 1/4 | 6100 Nl/min | 62 | 63 | 68 | 3/8 - 1/2 | 31,5 | 59 | 1/4 - 3/8 - 1/2 |
| Y090 205 050 000 | DIS 2 | 1/2 - 1/2 | 6100 Nl/min | 62 | 63 | 68 | 3/8 - 1/2 | 31,5 | 59 | 1/4 - 3/8 - 1/2 | |
| Y090 307 070 000 | DIS 3 | 3/4 - 3/4 | 11700 Nl/min | 90 | 92 | 89 | 3/4 - 1 | 46 | 77,5 | 3/4 - 1 | |
| Y090 309 090 000 | DIS 3 | 1 - 1 | 11700 Nl/min | 90 | 92 | 89 | 3/4 - 1 | 46 | 77,5 | 3/4 - 1 |
