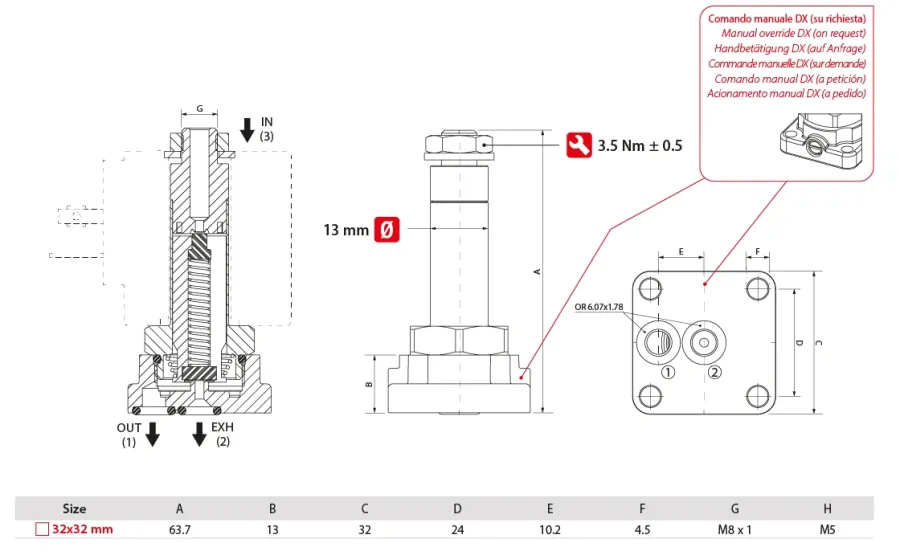

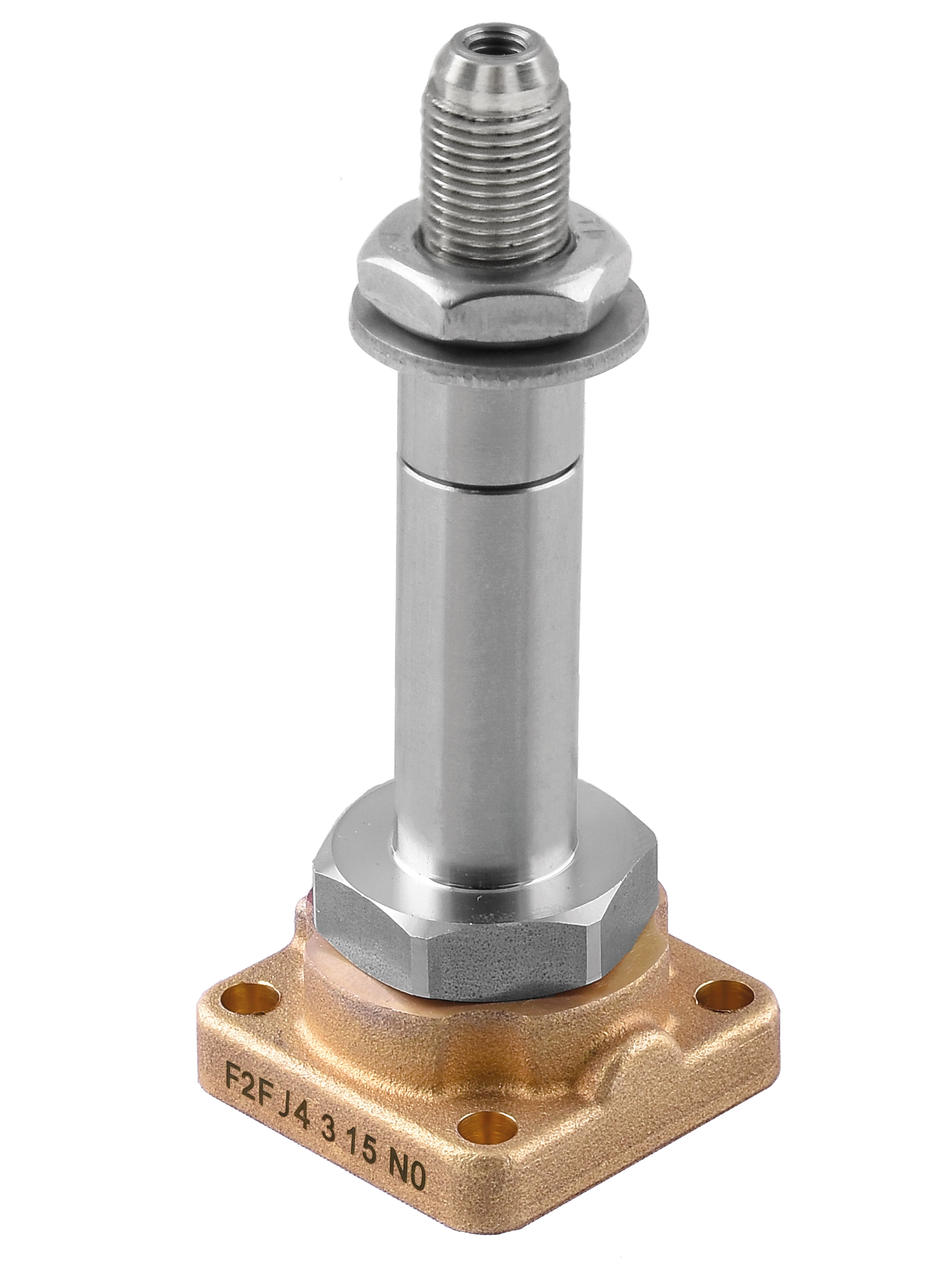

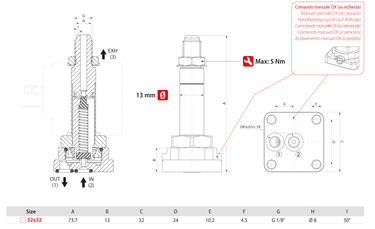

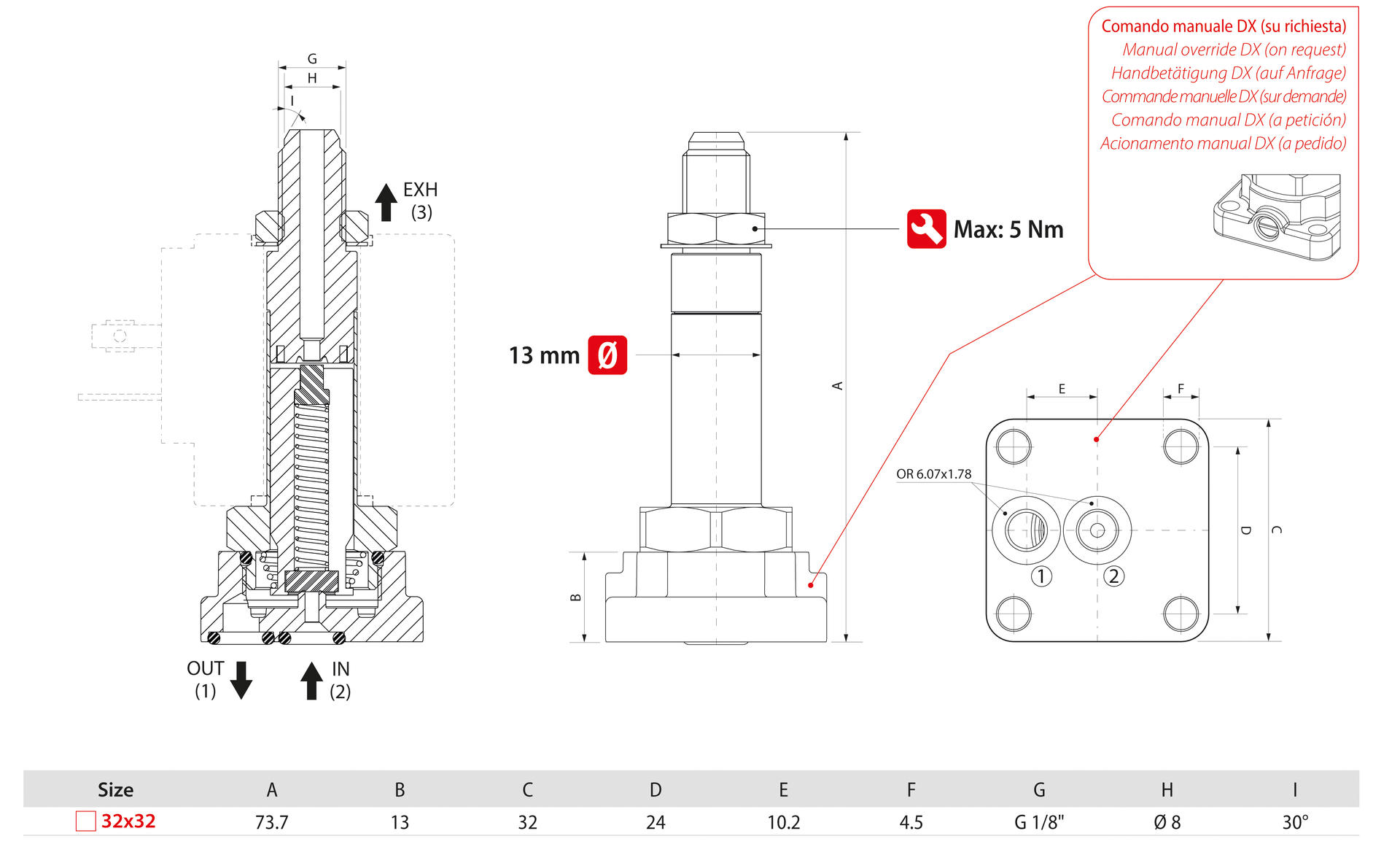

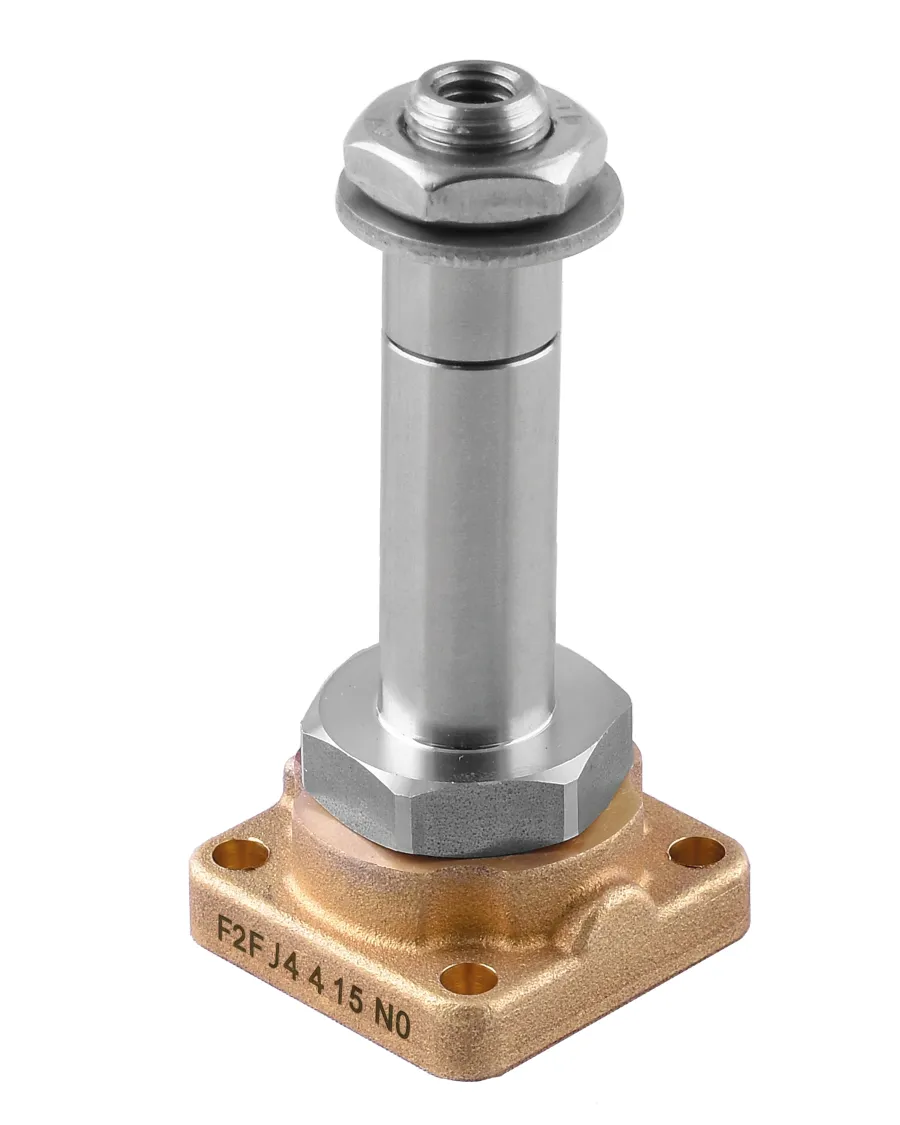

Serie F2F - 3/2 NC
ELETTROVALVOLE AD AZIONAMENTO DIRETTO CON FISSAGGIO A FLANGIA
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Istruzioni Certificati
| Codice | Disegno 3D | Materiale tenuta | Temperatura | Connessioni | Ø Orifizio - IN/EXH (mm) | Viscosità (cSt) | Kv - IN/EXH (m3/h) | OPD (ΔP) - DC (8 W) | OPD (ΔP) - DC (14 W) | OPD (ΔP) - DC (22 W) | OPD (ΔP) - AC (14 VA) | OPD (ΔP) - AC (21 VA) | OPD (ΔP) - AC (31 VA) | Confezione |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F2F J9 3 15 N 0 | Download | NBR | -10°C +90°C | Flangia 32x32 mm | 1.5 / 2.3 | 25 | 0.06 / 0.13 | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 1 |
| F2F J9 3 15 V 0 | Download | FKM | -10°C +140°C | Flangia 32x32 mm | 1.5 / 2.3 | 25 | 0.06 / 0.13 | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 1 |
| F2F J9 3 15 E 0 | Download | EPDM | -10°C +140°C | Flangia 32x32 mm | 1.5 / 2.3 | 25 | 0.06 / 0.13 | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 0 - 25 bar | 1 |
| F2F J9 3 15 R 3 | Download | RUBY | -40°C +180°C | Flangia 32x32 mm | 1.5 / 2.3 | 25 | 0.06 / 0.13 | 0 - 15 bar | 0 - 15 bar | 0 - 15 bar | 0 - 15 bar | 0 - 15 bar | 0 - 15 bar | 1 |
| F2F J9 3 02 N 0 | Download | NBR | -10°C +90°C | Flangia 32x32 mm | 2 / 2.3 | 37 | 0.10 / 0.13 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 1 |
| F2F J9 3 02 V 0 | Download | FKM | -10°C +140°C | Flangia 32x32 mm | 2 / 2.3 | 37 | 0.10 / 0.13 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 1 |
| F2F J9 3 02 E 0 | Download | EPDM | -10°C +140°C | Flangia 32x32 mm | 2 / 2.3 | 37 | 0.10 / 0.13 | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 0 - 18 bar | 1 |
| F2F J9 3 02 R 3 | Download | RUBY | -40°C +180°C | Flangia 32x32 mm | 2 / 2.3 | 37 | 0.10 / 0.13 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1 |
| F2F J9 3 25 N 0 | Download | NBR | -10°C +90°C | Flangia 32x32 mm | 2.5 / 2.3 | 37 | 0.15 / 0.13 | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 1 |
| F2F J9 3 25 V 0 | Download | FKM | -10°C +140°C | Flangia 32x32 mm | 2.5 / 2.3 | 37 | 0.15 / 0.13 | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 1 |
| F2F J9 3 25 E 0 | Download | EPDM | -10°C +140°C | Flangia 32x32 mm | 2.5 / 2.3 | 37 | 0.15 / 0.13 | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 0 - 13 bar | 1 |
| F2F J9 3 25 R 3 | Download | RUBY | -40°C +180°C | Flangia 32x32 mm | 2.5 / 2.3 | 37 | 0.15 / 0.13 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 1 |
| F2F J9 3 03 N 0 | Download | NBR | -10°C +90°C | Flangia 32x32 mm | 3 / 2.3 | 37 | 0.21 / 0.13 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1 |
| F2F J9 3 03 V 0 | Download | FKM | -10°C +140°C | Flangia 32x32 mm | 3 / 2.3 | 37 | 0.21 / 0.13 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1 |
| F2F J9 3 03 E 0 | Download | EPDM | -10°C +140°C | Flangia 32x32 mm | 3 / 2.3 | 37 | 0.21 / 0.13 | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 0 - 10 bar | 1 |
| F2F J9 3 04 N 0 | Download | NBR | -10°C +90°C | Flangia 32x32 mm | 4 / 2.3 | 37 | 0.35 / 0.13 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 1 |
| F2F J9 3 04 V 0 | Download | FKM | -10°C +140°C | Flangia 32x32 mm | 4 / 2.3 | 37 | 0.35 / 0.13 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 1 |
| F2F J9 3 04 E 0 | Download | EPDM | -10°C +140°C | Flangia 32x32 mm | 4 / 2.3 | 37 | 0.35 / 0.13 | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 0 - 6 bar | 1 |
