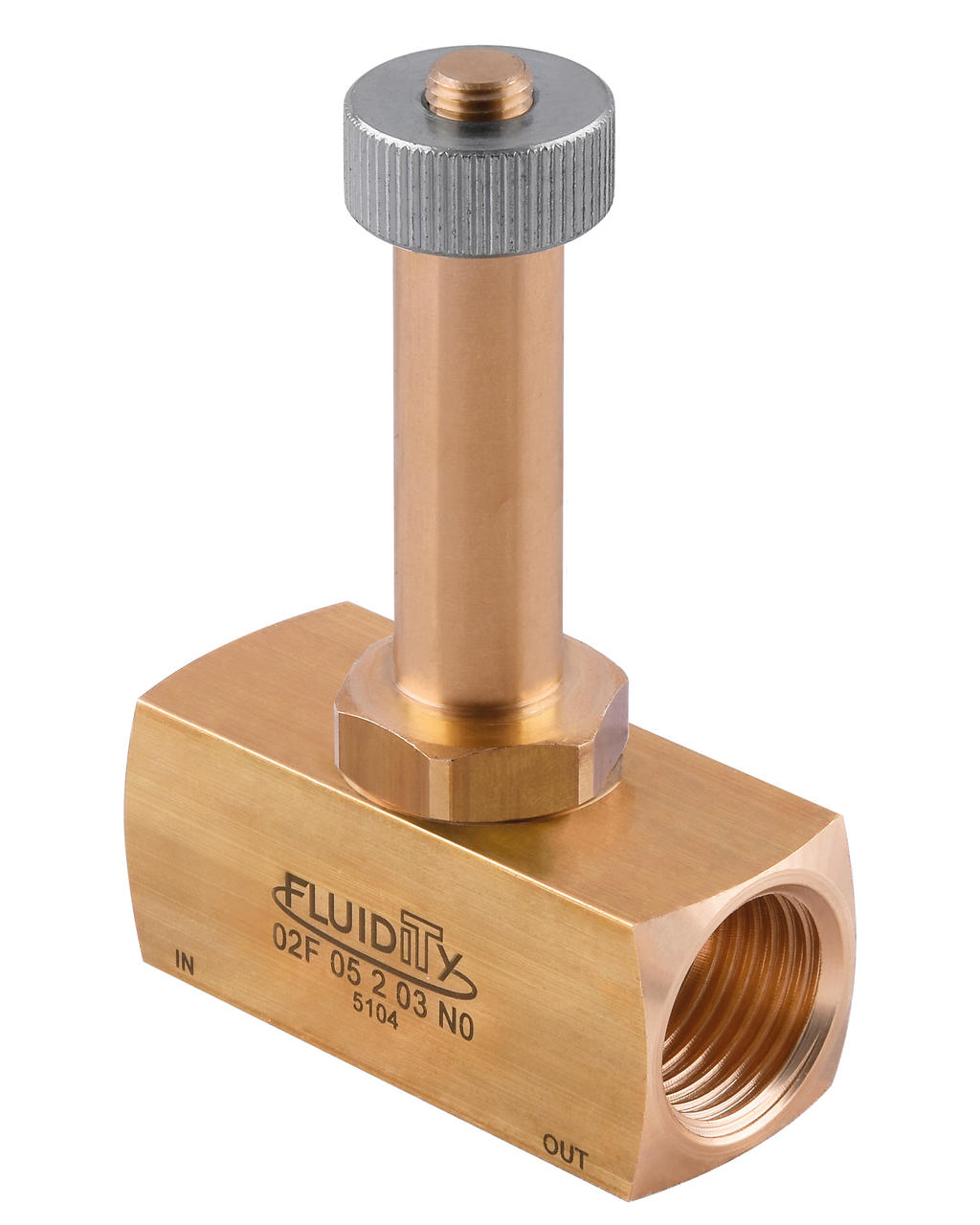

Serie 02F - 2/2 NO - 3/8"-1/2"
ELETTROVALVOLE AD AZIONAMENTO DIRETTO
Caratteristiche tecniche / CatalogoEtichette Aignep Scan Istruzioni Certificati
| Codice | Disegno 3D | Materiale tenuta | Temperatura | Connessioni | Ø Orifizio (mm) | Viscosità (cSt) | Kv (m3/h) | OPD (ΔP) - DC (14 W) | OPD (ΔP) - DC (22 W) | OPD (ΔP) - AC (14 VA) | OPD (ΔP) - AC (21 VA) | OPD (ΔP) - AC (31 VA) | Confezione |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02F 04 2 03 N 0 | Download | NBR | -10°C +90°C | 3/8" | 3 | 53 | 0.21 | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 1 |
| 02F 04 2 03 V 0 | Download | FKM | -10°C +140°C | 3/8" | 3 | 53 | 0.21 | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 1 |
| 02F 04 2 03 E 0 | Download | EPDM | -10°C +140°C | 3/8" | 3 | 53 | 0.21 | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 1 |
| 02F 04 2 04 N 0 | Download | NBR | -10°C +90°C | 3/8" | 4 | 53 | 0.35 | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 1 |
| 02F 04 2 04 V 0 | Download | FKM | -10°C +140°C | 3/8" | 4 | 53 | 0.35 | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 1 |
| 02F 04 2 04 E 0 | Download | EPDM | -10°C +140°C | 3/8" | 4 | 53 | 0.35 | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 1 |
| 02F 04 2 05 N 0 | Download | NBR | -10°C +90°C | 3/8" | 5 | 53 | 0.51 | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 1 |
| 02F 04 2 05 V 0 | Download | FKM | -10°C +140°C | 3/8" | 5 | 53 | 0.51 | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 1 |
| 02F 04 2 05 E 0 | Download | EPDM | -10°C +140°C | 3/8" | 5 | 53 | 0.51 | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 1 |
| 02F 05 2 03 N 0 | Download | NBR | -10°C +90°C | 1/2" | 3 | 53 | 0.21 | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 1 |
| 02F 05 2 03 V 0 | Download | FKM | -10°C +140°C | 1/2" | 3 | 53 | 0.21 | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 1 |
| 02F 05 2 03 E 0 | Download | EPDM | -10°C +140°C | 1/2" | 3 | 53 | 0.21 | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 0 - 7.5 bar | 1 |
| 02F 05 2 04 N 0 | Download | NBR | -10°C +90°C | 1/2" | 4 | 53 | 0.35 | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 1 |
| 02F 05 2 04 V 0 | Download | FKM | -10°C +140°C | 1/2" | 4 | 53 | 0.35 | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 1 |
| 02F 05 2 04 E 0 | Download | EPDM | -10°C +140°C | 1/2" | 4 | 53 | 0.35 | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 0 - 4.5 bar | 1 |
| 02F 05 2 05 N 0 | Download | NBR | -10°C +90°C | 1/2" | 5 | 53 | 0.51 | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 1 |
| 02F 05 2 05 V 0 | Download | FKM | -10°C +140°C | 1/2" | 5 | 53 | 0.51 | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 1 |
| 02F 05 2 05 E 0 | Download | EPDM | -10°C +140°C | 1/2" | 5 | 53 | 0.51 | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 0 - 2.5 bar | 1 |
