Push-In Fittings>

87-88 – INCH Series

>87210
87210

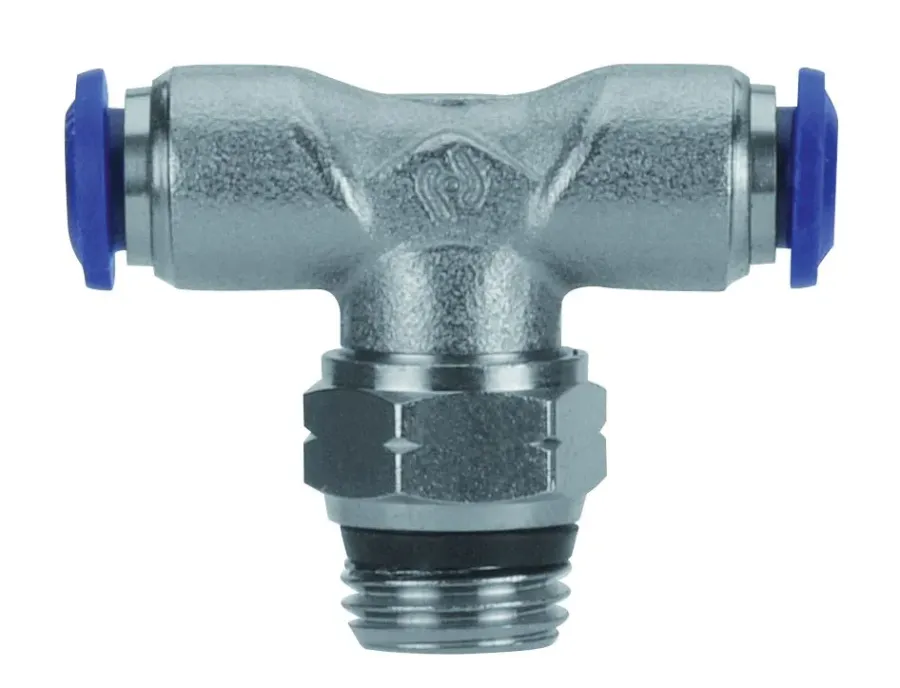

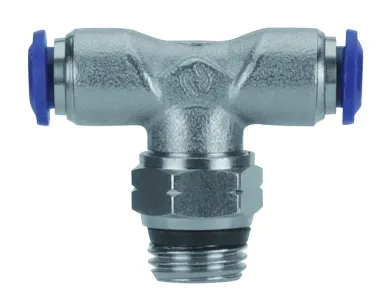

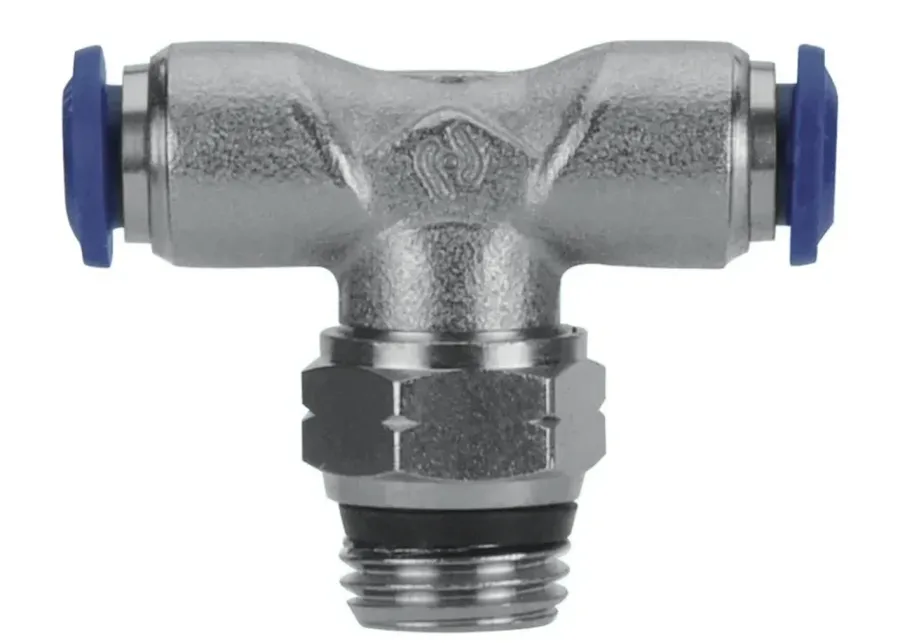

SWIVEL BRANCH TEE - SWIFTFIT

Technical characteristics / catalogAignep Scan Labels Certifications
SWIVEL BRANCH TEE - SWIFTFIT
SWIVEL BRANCH TEE - SWIFTFIT

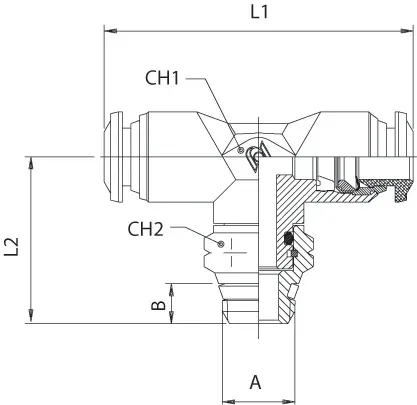

Code USA REF  Draw Tube A B L1 L2 CH1 CH2 Bag
87210 00 001     87210-02-02 Download 1/8 1/8 0.217 (5.5) 1.299 (33) 0.846 (21.5) 0.354 (9) 0.512 (13) 10
87210 00 002     87210-02-04 Download 1/8 1/4 0.276 (7) 1.299 (33) 1.004 (25.5) 0.354 (9) 0.591 (15) 10
87210 00 003     87210-53-02 Download 5/32 (4) 1/8 0.217 (5.5) 1.339 (34) 0.846 (21.5) 0.354 (9) 0.512 (13) 10
87210 00 004     87210-53-04 Download 5/32 (4) 1/4 0.276 (7) 1.299 (33) 1.004 (25.5) 0.354 (9) 0.591 (15) 10
87210 00 005     87210-04-02 Download 1/4 1/8 0.217 (5.5) 1.693 (43) 0.925 (23.5) 0.433 (11) 0.512 (13) 10
87210 00 006     87210-04-04 Download 1/4 1/4 0.276 (7) 1.693 (43) 1.063 (27) 0.433 (11) 0.591 (15) 10
87210 00 014     87210-04-06 Download 1/4 3/8 0.295 (7.5) 2.087 (53) 1.102 (28) 0.630 (16) 0.669 (17) 10
87210 00 013     87210-06-02 Download 3/8 1/8 0.217 (5.5) 2.047 (52) 1.083 (27.5) 0.630 (16) 0.591 (15) 10
87210 00 007     87210-06-04 Download 3/8 1/4 0.276 (7) 2.087 (53) 1.181 (30) 0.630 (16) 0.512 (13) 10
87210 00 008     87210-06-06 Download 3/8 3/8 0.295 (7.5) 2.087 (53) 1.181 (30) 0.630 (16) 0.669 (17) 10
87210 00 009     87210-06-08 Download 3/8 1/2 0.354 (9) 2.087 (53) 1.299 (33) 0.630 (16) 0.827 (21) 10
87210 00 010     87210-08-04 Download 1/2 1/4 0.276 (7) 2.402 (61) 1.240 (31.5) 0.748 (19) 0.591 (15) 10
87210 00 011     87210-08-06 Download 1/2 3/8 0.295 (7.5) 2.402 (61) 1.299 (33) 0.748 (19) 0.669 (17) 10
87210 00 012     87210-08-08 Download 1/2 1/2 0.354 (9) 2.402 (61) 1.417 (36) 0.748 (19) 0.827 (21) 10
Code Draw Tube A B L1 L2 CH1 CH2 Bag
87210 00 001 Download 1/8 1/8 0.217 (5.5) 1.299 (33) 0.846 (21.5) 0.354 (9) 0.512 (13) 10
87210 00 002 Download 1/8 1/4 0.276 (7) 1.299 (33) 1.004 (25.5) 0.354 (9) 0.591 (15) 10
87210 00 003 Download 5/32 (4) 1/8 0.217 (5.5) 1.339 (34) 0.846 (21.5) 0.354 (9) 0.512 (13) 10
87210 00 004 Download 5/32 (4) 1/4 0.276 (7) 1.299 (33) 1.004 (25.5) 0.354 (9) 0.591 (15) 10
87210 00 005 Download 1/4 1/8 0.217 (5.5) 1.693 (43) 0.925 (23.5) 0.433 (11) 0.512 (13) 10
87210 00 006 Download 1/4 1/4 0.276 (7) 1.693 (43) 1.063 (27) 0.433 (11) 0.591 (15) 10
87210 00 014 Download 1/4 3/8 0.295 (7.5) 2.087 (53) 1.102 (28) 0.630 (16) 0.669 (17) 10
87210 00 013 Download 3/8 1/8 0.217 (5.5) 2.047 (52) 1.083 (27.5) 0.630 (16) 0.591 (15) 10
87210 00 007 Download 3/8 1/4 0.276 (7) 2.087 (53) 1.181 (30) 0.630 (16) 0.512 (13) 10
87210 00 008 Download 3/8 3/8 0.295 (7.5) 2.087 (53) 1.181 (30) 0.630 (16) 0.669 (17) 10
87210 00 009 Download 3/8 1/2 0.354 (9) 2.087 (53) 1.299 (33) 0.630 (16) 0.827 (21) 10
87210 00 010 Download 1/2 1/4 0.276 (7) 2.402 (61) 1.240 (31.5) 0.748 (19) 0.591 (15) 10
87210 00 011 Download 1/2 3/8 0.295 (7.5) 2.402 (61) 1.299 (33) 0.748 (19) 0.669 (17) 10
87210 00 012 Download 1/2 1/2 0.354 (9) 2.402 (61) 1.417 (36) 0.748 (19) 0.827 (21) 10
