Pneumatic Actuators>

X Series ISO 15552

FC

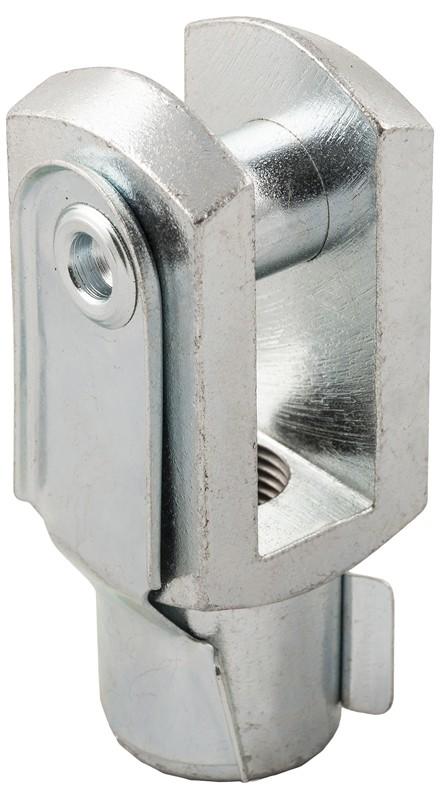

ROD CLEVIS WITH LOCKABLE PIN - STEEL

Technical characteristics / catalog Aignep Scan Labels Certifications

ROD CLEVIS WITH LOCKABLE PIN - STEEL

ROD CLEVIS WITH LOCKABLE PIN - STEEL

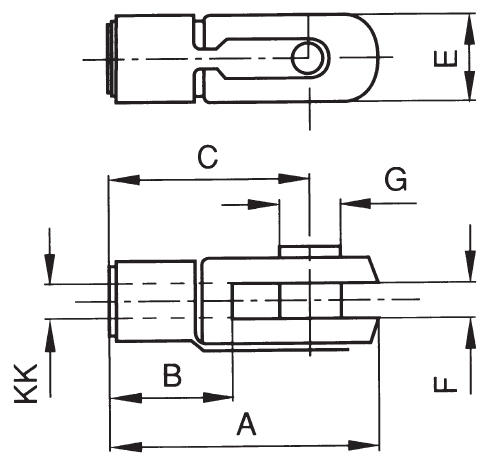

Code	USA REF			Draw	KK	A mm	B mm	C mm	E mm	F mm	G mm	*
FC 040	FC040			Download	M12X1,25	62	24	48	24	12	12
FC 050	FC050			Download	M16X1,5	83	32	64	32	16	16
FC 080	FC080			Download	M20X1,5	105	40	80	40	20	20
FC 125	FC125			Download	M27X2	148	56	110	55	30	30	With Pin and Seeger

Code	Draw	KK	A mm	B mm	C mm	E mm	F mm	G mm	*
FC 040	Download	M12X1,25	62	24	48	24	12	12
FC 050	Download	M16X1,5	83	32	64	32	16	16
FC 080	Download	M20X1,5	105	40	80	40	20	20
FC 125	Download	M27X2	148	56	110	55	30	30	With Pin and Seeger
