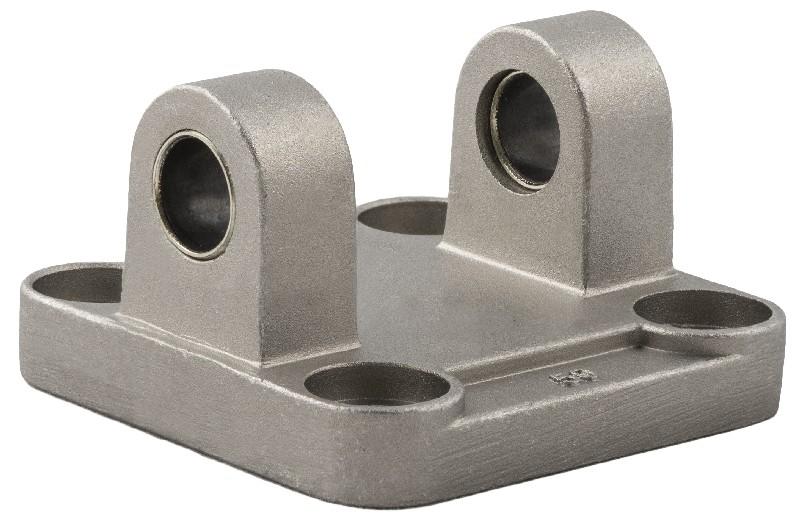

FEMALE HINGE WITH SELF-LUBRICATING BUSHES - ALUMINIUM

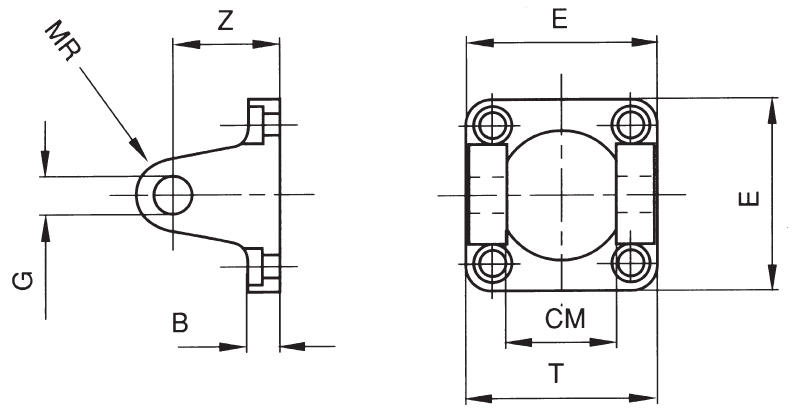

Code	USA REF	Draw	Ø mm	B mm	E mm	G mm	T mm	Z mm	CM mm	MR mm
VCF 032	VCF032	Download	32	9	45	10	45	22	26	10
VCF 040	VCF040	Download	40	9	52	12	52	25	28	12
VCF 050	VCF050	Download	50	11	65	12	60	27	32	12
VCF 063	VCF063	Download	63	11	75	16	70	32	40	16
VCF 080	VCF080	Download	80	14	95	16	90	36	50	16
VCF 100	VCF100	Download	100	14	115	20	110	41	60	20

Code	Draw	Ø mm	B mm	E mm	G mm	T mm	Z mm	CM mm	MR mm
VCF 032	Download	32	9	45	10	45	22	26	10
VCF 040	Download	40	9	52	12	52	25	28	12
VCF 050	Download	50	11	65	12	60	27	32	12
VCF 063	Download	63	11	75	16	70	32	40	16
VCF 080	Download	80	14	95	16	90	36	50	16
VCF 100	Download	100	14	115	20	110	41	60	20

W Series - ISO 21287
