Function Fittings>

FUNCTIONAL Series

>82650
82650

QUICK EXHAUST VALVE - FEMALE NPTF

Technical characteristics / catalogAignep Scan Labels Certifications

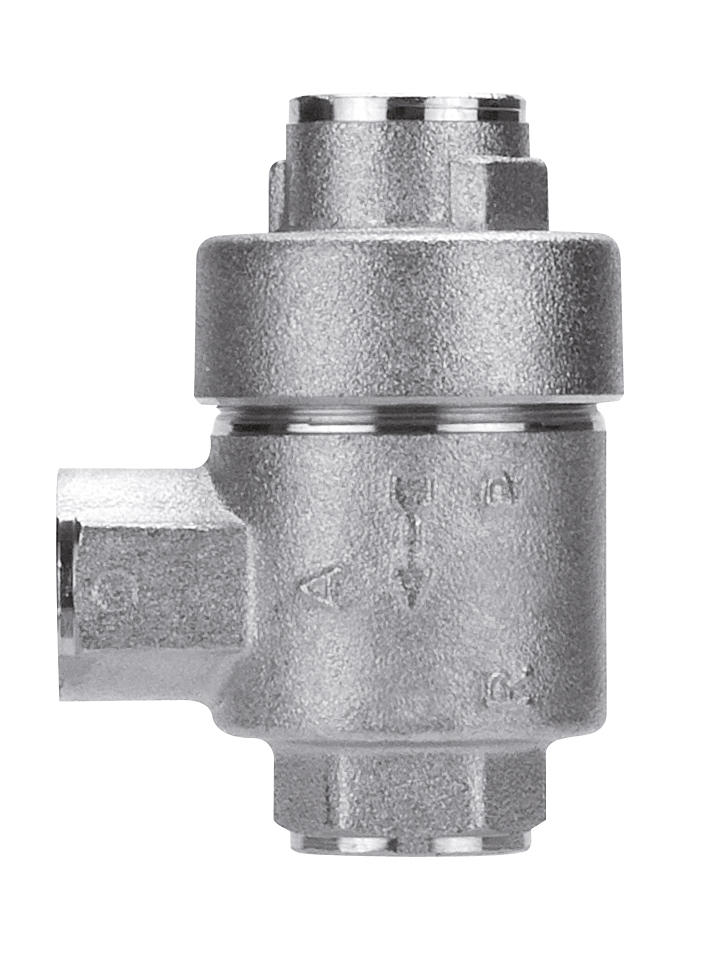

QUICK EXHAUST VALVE - FEMALE NPTF
QUICK EXHAUST VALVE - FEMALE NPTF

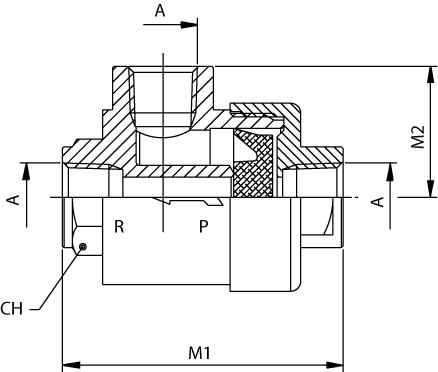

Code USA REF   A NPTF M1 M2 CH Pack
82650 00 001     82650-02 1/8 1.654 (42) 0.768 (19.5) 0.591 (15) 10
82650 00 002     82650-04 1/4 2.126 (54) 0.984 (25) 0.748 (19) 10
82650 00 003     82650-06 3/8 2.382 (60.5) 1.043 (26.5) 0.866 (22) 10
82650 00 004     82650-08 1/2 2.835 (72) 1.260 (32) 1.024 (26) 10
82650 00 005     82650-12 3/4 3.465 (88) 1.457 (37) 1.260 (32) 10
82650 00 006     82650-16 1 4.291 (109) 1.890 (48) 1.811 (46) 5
Code A NPTF M1 M2 CH Pack
82650 00 001 1/8 1.654 (42) 0.768 (19.5) 0.591 (15) 10
82650 00 002 1/4 2.126 (54) 0.984 (25) 0.748 (19) 10
82650 00 003 3/8 2.382 (60.5) 1.043 (26.5) 0.866 (22) 10
82650 00 004 1/2 2.835 (72) 1.260 (32) 1.024 (26) 10
82650 00 005 3/4 3.465 (88) 1.457 (37) 1.260 (32) 10
82650 00 006 1 4.291 (109) 1.890 (48) 1.811 (46) 5
