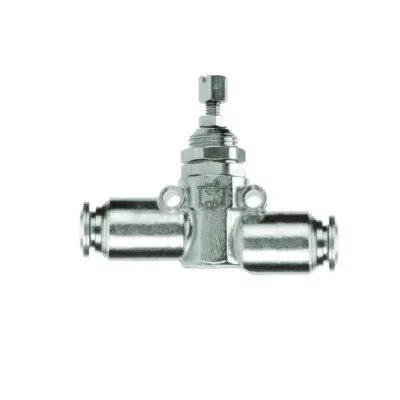

INLINE FLOW CONTROL - MANUAL REGULATION

Technical characteristics / catalogAignep Scan Labels Certifications
INLINE FLOW CONTROL - MANUAL REGULATION
INLINE FLOW CONTROL - MANUAL REGULATION

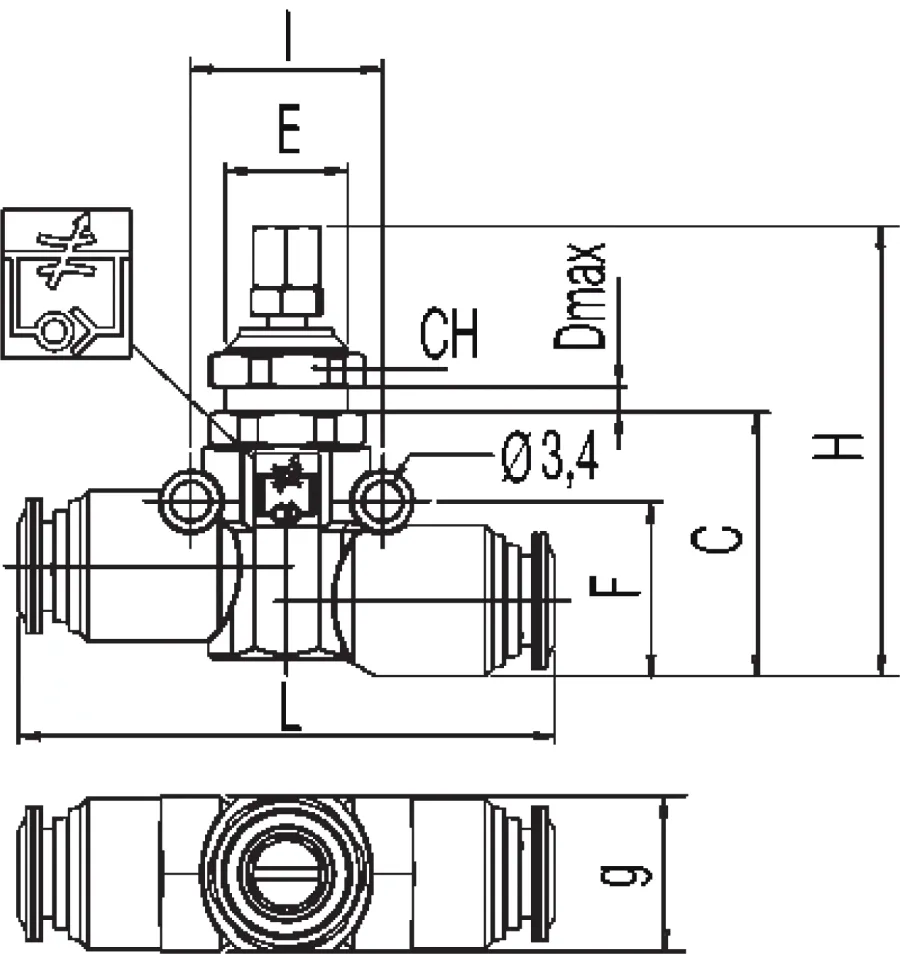

Code USA REF  Draw Tube C D E F G Hmin Hmax I L CH Pack
82815 00 003     82815-04 1/4 0.925 (23.5) 0.157 (4) M11X1 0.610 (15.5) 0.551 (14) 1.594 (40.5) 1.831 (46.5) 0.669 (17) 1.890 (48) 0.512 (13) 10
82815 00 004     82815-06 Download 3/8 1.004 (25.5) 0.177 (4.5) M16X1 0.807 (20.5) 0.807 (20.5) 1.929 (49) 2.165 (55) 0.787 (20) 2.264 (57.5) 0.709 (18) 10
Code Draw Tube C D E F G Hmin Hmax I L CH Pack
82815 00 003 1/4 0.925 (23.5) 0.157 (4) M11X1 0.610 (15.5) 0.551 (14) 1.594 (40.5) 1.831 (46.5) 0.669 (17) 1.890 (48) 0.512 (13) 10
82815 00 004 Download 3/8 1.004 (25.5) 0.177 (4.5) M16X1 0.807 (20.5) 0.807 (20.5) 1.929 (49) 2.165 (55) 0.787 (20) 2.264 (57.5) 0.709 (18) 10
