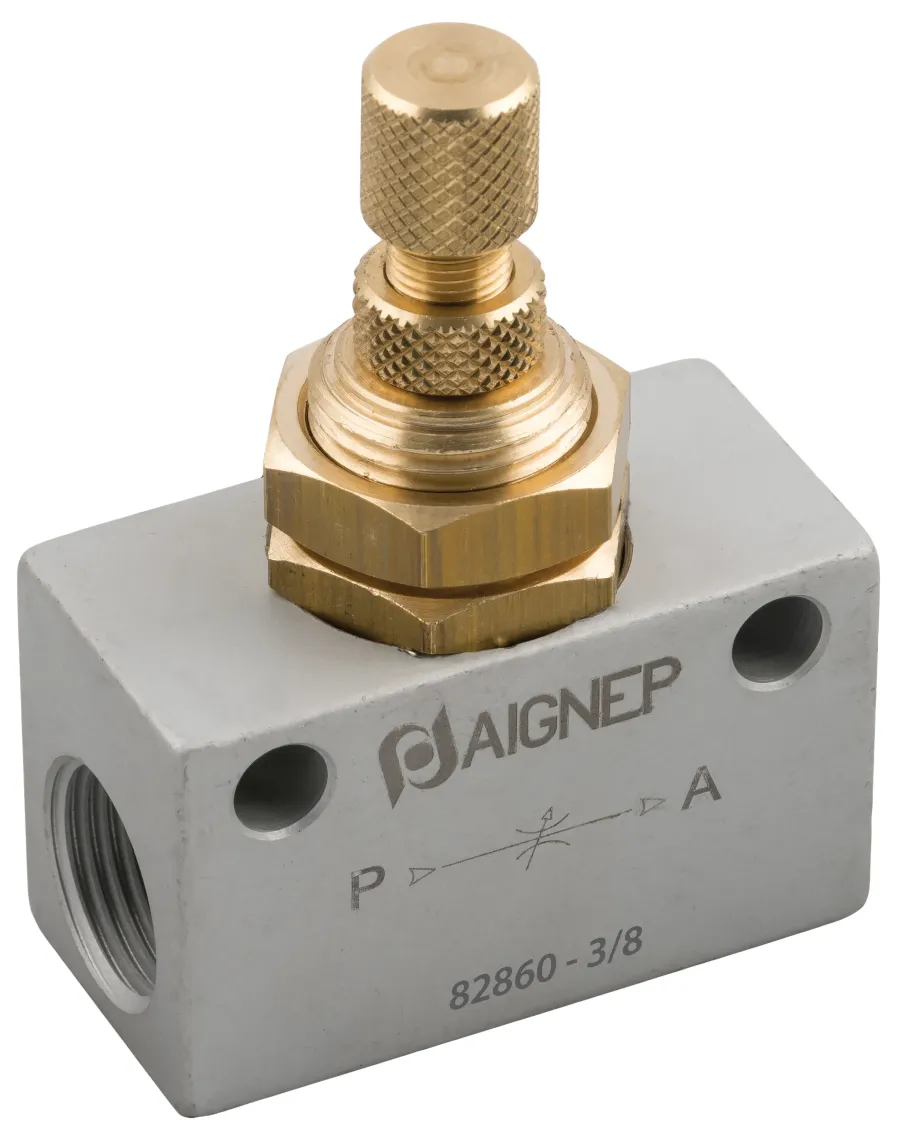

Bl-DIRECTIONAL INLINE NEEDLE VALVE - FEMALE NPTF

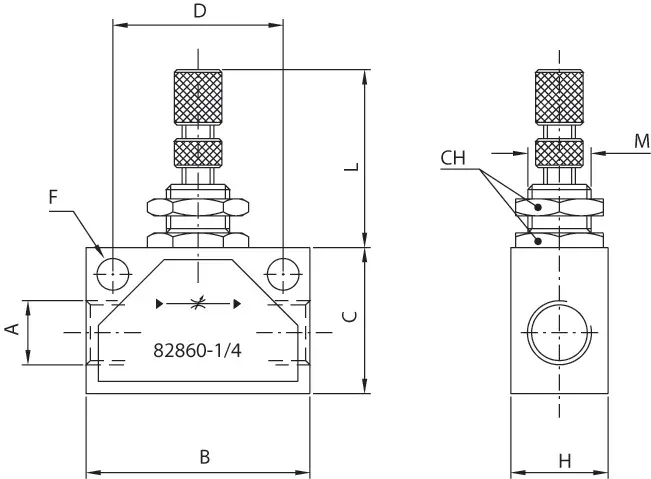

Code	USA REF	A NPTF	B	C	H	D	F	Lmin	Lmax	M	CH	Pack
82860 00 001	82860-02	1/8	1.378 (35)	0.866 (22)	0.709 (18)	0.984 (25)	0.177 (4.5)	1.024 (26)	1.417 (36)	M12X0,75	0.591 (15)	10
82860 00 002	82860-04	1/4	1.811 (46)	1.181 (30)	0.787 (20)	1.378 (35)	0.256 (6.5)	1.024 (26)	1.417 (36)	M12X0,75	0.591 (15)	10
82860 00 003	82860-06	3/8	1.969 (50)	1.181 (30)	0.984 (25)	1.378 (35)	0.256 (6.5)	1.260 (32)	1.654 (42)	M18X1,5	0.866 (22)	10
82860 00 004	82860-08	1/2	2.362 (60)	1.575 (40)	0.984 (25)	1.732 (44)	0.256 (6.5)	1.260 (32)	1.732 (44)	M18X1,5	0.866 (22)	10

Code	A NPTF	B	C	H	D	F	Lmin	Lmax	M	CH	Pack
82860 00 001	1/8	1.378 (35)	0.866 (22)	0.709 (18)	0.984 (25)	0.177 (4.5)	1.024 (26)	1.417 (36)	M12X0,75	0.591 (15)	10
82860 00 002	1/4	1.811 (46)	1.181 (30)	0.787 (20)	1.378 (35)	0.256 (6.5)	1.024 (26)	1.417 (36)	M12X0,75	0.591 (15)	10
82860 00 003	3/8	1.969 (50)	1.181 (30)	0.984 (25)	1.378 (35)	0.256 (6.5)	1.260 (32)	1.654 (42)	M18X1,5	0.866 (22)	10
82860 00 004	1/2	2.362 (60)	1.575 (40)	0.984 (25)	1.732 (44)	0.256 (6.5)	1.260 (32)	1.732 (44)	M18X1,5	0.866 (22)	10

FUNCTIONAL Series
