Automatic Quick Couplings>

80620 Series "Safety Couplers"

80622

FEMALE SAFETY COUPLER - NPTF

Technical characteristics / catalog Aignep Scan Labels Certifications

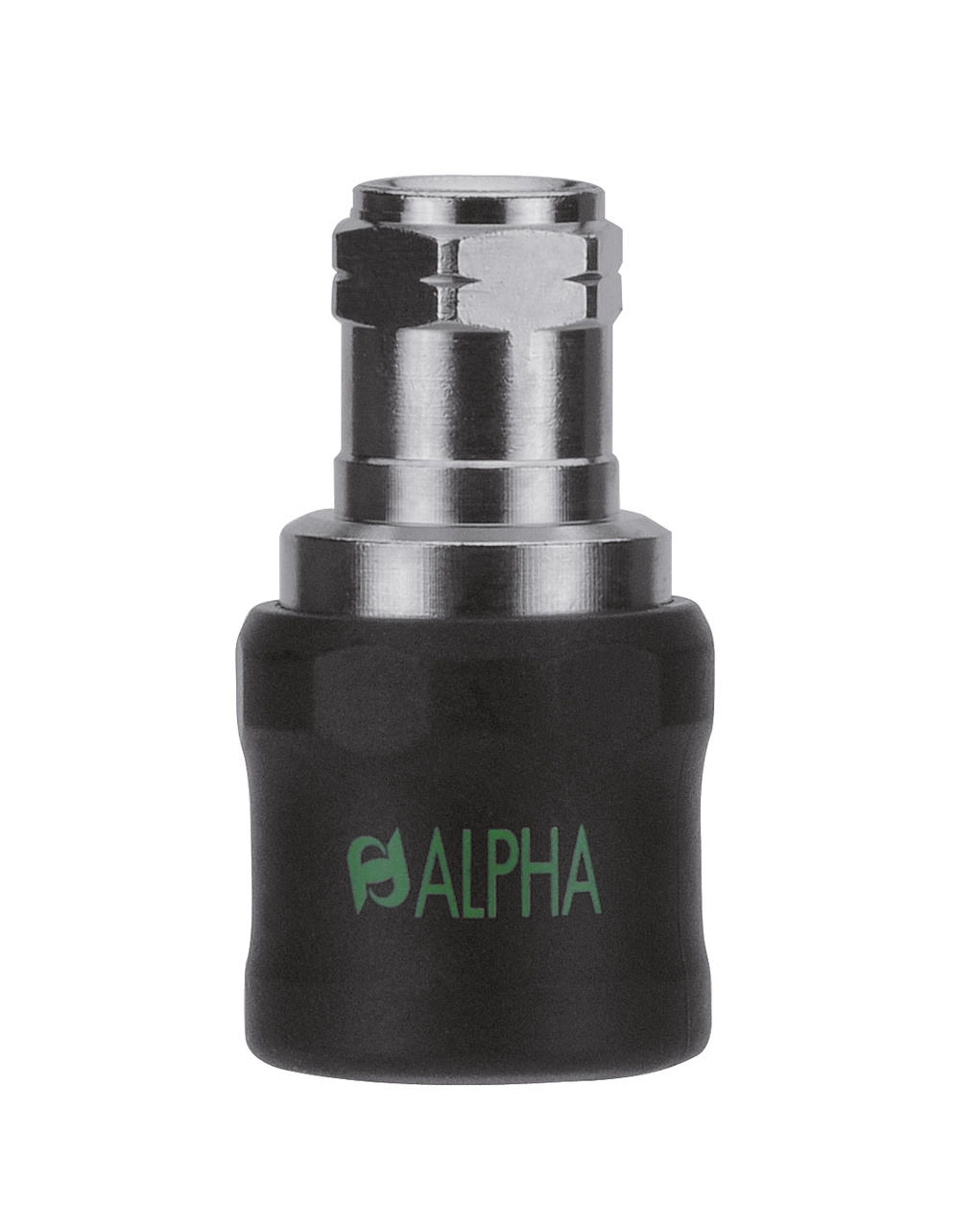

FEMALE SAFETY COUPLER - NPTF

FEMALE SAFETY COUPLER - NPTF

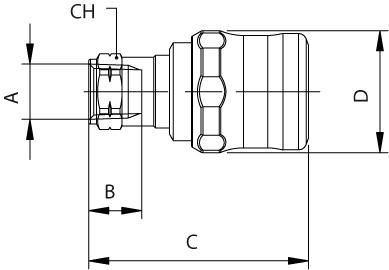

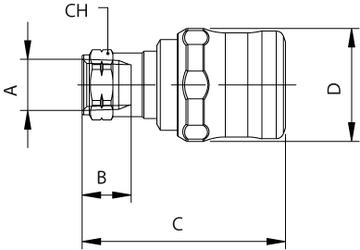

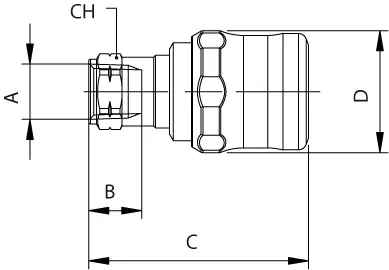

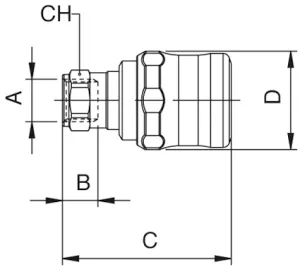

Code	USA REF			Draw	A NPTF	B	C	D	CH	Bag
80622 00 001	80622-04			Download	1/4	0.531 (13.5)	2.165 (55)	1.201 (30.5)	0.669 (17)	10
80622 00 002	80622-06			Download	3/8	0.531 (13.5)	2.146 (54.5)	1.201 (30.5)	0.787 (20)	10
80622 00 003	80622-08			Download	1/2	0.689 (17.5)	2.323 (59)	1.201 (30.5)	0.945 (24)	10

Code	Draw	A NPTF	B	C	D	CH	Bag
80622 00 001	Download	1/4	0.531 (13.5)	2.165 (55)	1.201 (30.5)	0.669 (17)	10
80622 00 002	Download	3/8	0.531 (13.5)	2.146 (54.5)	1.201 (30.5)	0.787 (20)	10
80622 00 003	Download	1/2	0.689 (17.5)	2.323 (59)	1.201 (30.5)	0.945 (24)	10
