Air Pipeline "INFINITY" Series

90012

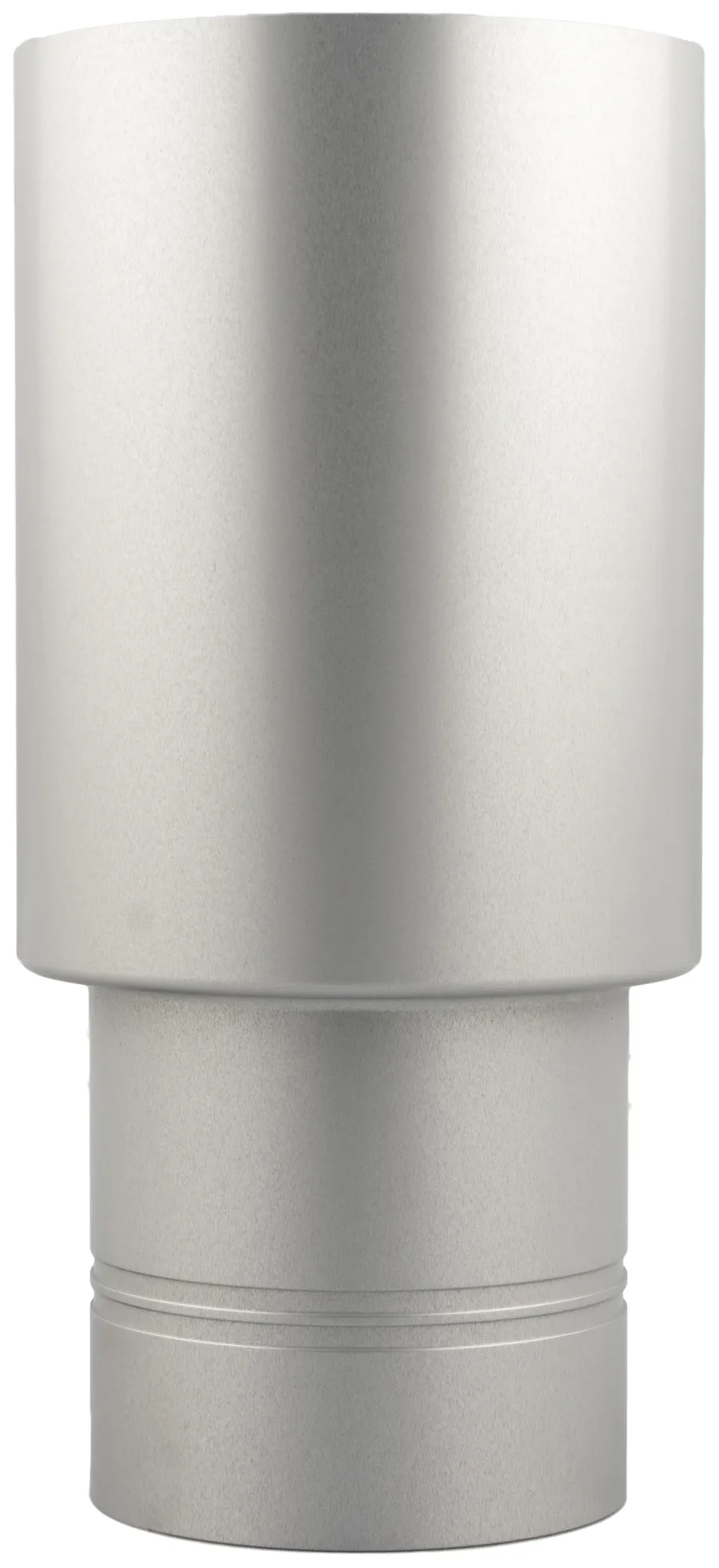

TUBE - TUBE REDUCER

Technical characteristics / catalog File BIM Aignep Scan Labels Instructions Certifications

TUBE - TUBE REDUCER

TUBE - TUBE REDUCER

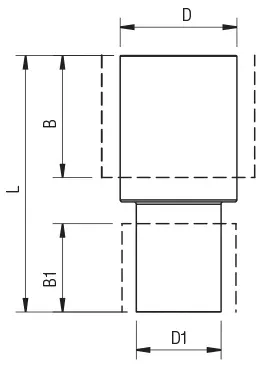

Code	USA REF			Draw	D	D1	B	B1	L	Bag
90012 00 003	90012-80-50			Download	80	1.969 (50)	91	3.583 (91)	6.575 (167)	1
90012 00 001	90012-80-63			Download	80	2.480 (63)	91	3.583 (91)	6.614 (168)	1
90012 00 002	90012-110-80			Download	110	3.150 (80)	125,5	4.941 (125.5)	9.724 (247)	1
90012 00 004	90012-168-110			Download	168	4.331 (110)	194	7.638 (194)	15.118 (384)	1

Code	Draw	D	D1	B	B1	L	Bag
90012 00 003	Download	80	1.969 (50)	91	3.583 (91)	6.575 (167)	1
90012 00 001	Download	80	2.480 (63)	91	3.583 (91)	6.614 (168)	1
90012 00 002	Download	110	3.150 (80)	125,5	4.941 (125.5)	9.724 (247)	1
90012 00 004	Download	168	4.331 (110)	194	7.638 (194)	15.118 (384)	1
