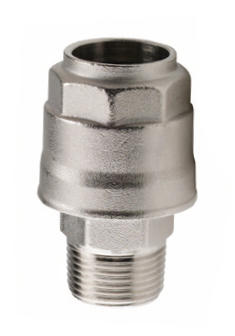

STRAIGHT MALE ADAPTOR - NPTF

Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications
STRAIGHT MALE ADAPTOR - NPTF
STRAIGHT MALE ADAPTOR - NPTF

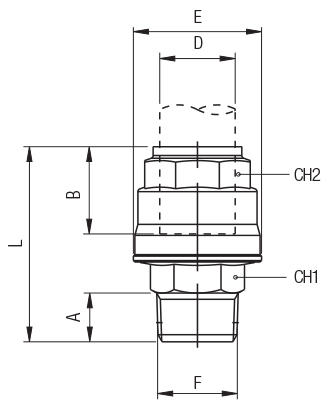

Code USA REF  Draw D F (NPTF) A B E L CH1 CH2 * Bag
90011 00 001     90011-20-08 Download 20 1/2 0.551 (14) 1.240 (31.5) 1.358 (34.5) 2.205 (56) 0.866 (22) 1.181 (30) 5
90011 00 009     90011-20-12 Download 20 3/4 0.689 (17.5) 1.240 (31.5) 1.358 (34.5) 2.461 (62.5) 0.866 (22) 1.181 (30) 5
90011 00 002     90011-25-12 Download 25 3/4 0.650 (16.5) 1.516 (38.5) 1.673 (42.5) 2.598 (66) 1.063 (27) 1.378 (35) 5
90011 00 010     90011-25-16 Download 25 1" 0.846 (21.5) 1.673 (42.5) 1.673 (42.5) 2.835 (72) 1.063 (27) 1.378 (35) 2
90011 00 003     90011-32-16 Download 32 1" 0.748 (19) 1.811 (46) 2.047 (52) 3.012 (76.5) 1.339 (34) 1.772 (45) 2
90011 00 004     90011-40-24 Download 40 1" 1/2 0.846 (21.5) 2.047 (52) 2.480 (63) 3.524 (89.5) 1.772 (45) 2.165 (55) 2
90011 00 005     90011-50-24 Download 50 1" 1/2 0.846 (21.5) 2.500 (63.5) 2.874 (73) 4.134 (105) 1.969 (50) 2.559 (65) 2
90011 00 012     90011-50-32 Download 50 2" 0.945 (24) 2.500 (63.5) 4.134 (105) 4.370 (111) 2.362 (60) 2.559 (65) 2
90011 00 006     90011-63-32 63 2" 0.945 (24) 2.323 (59) 3.622 (92) 4.232 (107.5) 2.559 (65) 2.756 (70) 2
90011 00 005 A     90011A-50-24 Download 50 1" 1/2 0.886 (22.5) 2.303 (58.5) 3.307 (84) 4.528 (115) 1.969 (50) 2.677 (68) Aluminium 2
90011 00 012 A     90011A-50-32 Download 50 2" 0.925 (23.5) 2.303 (58.5) 3.307 (84) 4.567 (116) 1.969 (50) 2.677 (68) Aluminium 2
90011 00 006 A     90011A-63-32 Download 63 2" 0.925 (23.5) 2.264 (57.5) 3.701 (94) 4.311 (109.5) 2.362 (60) 2.953 (75) Aluminium 2
90011 00 008 A     90011A-63-40 Download 63 2" 1/2 1.378 (35) 2.264 (57.5) 3.701 (94) 4.744 (120.5) 2.953 (75) 2.953 (75) Aluminium 2
Code Draw D F (NPTF) A B E L CH1 CH2 * Bag
90011 00 001 Download 20 1/2 0.551 (14) 1.240 (31.5) 1.358 (34.5) 2.205 (56) 0.866 (22) 1.181 (30) 5
90011 00 009 Download 20 3/4 0.689 (17.5) 1.240 (31.5) 1.358 (34.5) 2.461 (62.5) 0.866 (22) 1.181 (30) 5
90011 00 002 Download 25 3/4 0.650 (16.5) 1.516 (38.5) 1.673 (42.5) 2.598 (66) 1.063 (27) 1.378 (35) 5
90011 00 010 Download 25 1" 0.846 (21.5) 1.673 (42.5) 1.673 (42.5) 2.835 (72) 1.063 (27) 1.378 (35) 2
90011 00 003 Download 32 1" 0.748 (19) 1.811 (46) 2.047 (52) 3.012 (76.5) 1.339 (34) 1.772 (45) 2
90011 00 004 Download 40 1" 1/2 0.846 (21.5) 2.047 (52) 2.480 (63) 3.524 (89.5) 1.772 (45) 2.165 (55) 2
90011 00 005 Download 50 1" 1/2 0.846 (21.5) 2.500 (63.5) 2.874 (73) 4.134 (105) 1.969 (50) 2.559 (65) 2
90011 00 012 Download 50 2" 0.945 (24) 2.500 (63.5) 4.134 (105) 4.370 (111) 2.362 (60) 2.559 (65) 2
90011 00 006 63 2" 0.945 (24) 2.323 (59) 3.622 (92) 4.232 (107.5) 2.559 (65) 2.756 (70) 2
90011 00 005 A Download 50 1" 1/2 0.886 (22.5) 2.303 (58.5) 3.307 (84) 4.528 (115) 1.969 (50) 2.677 (68) Aluminium 2
90011 00 012 A Download 50 2" 0.925 (23.5) 2.303 (58.5) 3.307 (84) 4.567 (116) 1.969 (50) 2.677 (68) Aluminium 2
90011 00 006 A Download 63 2" 0.925 (23.5) 2.264 (57.5) 3.701 (94) 4.311 (109.5) 2.362 (60) 2.953 (75) Aluminium 2
90011 00 008 A Download 63 2" 1/2 1.378 (35) 2.264 (57.5) 3.701 (94) 4.744 (120.5) 2.953 (75) 2.953 (75) Aluminium 2
