90014

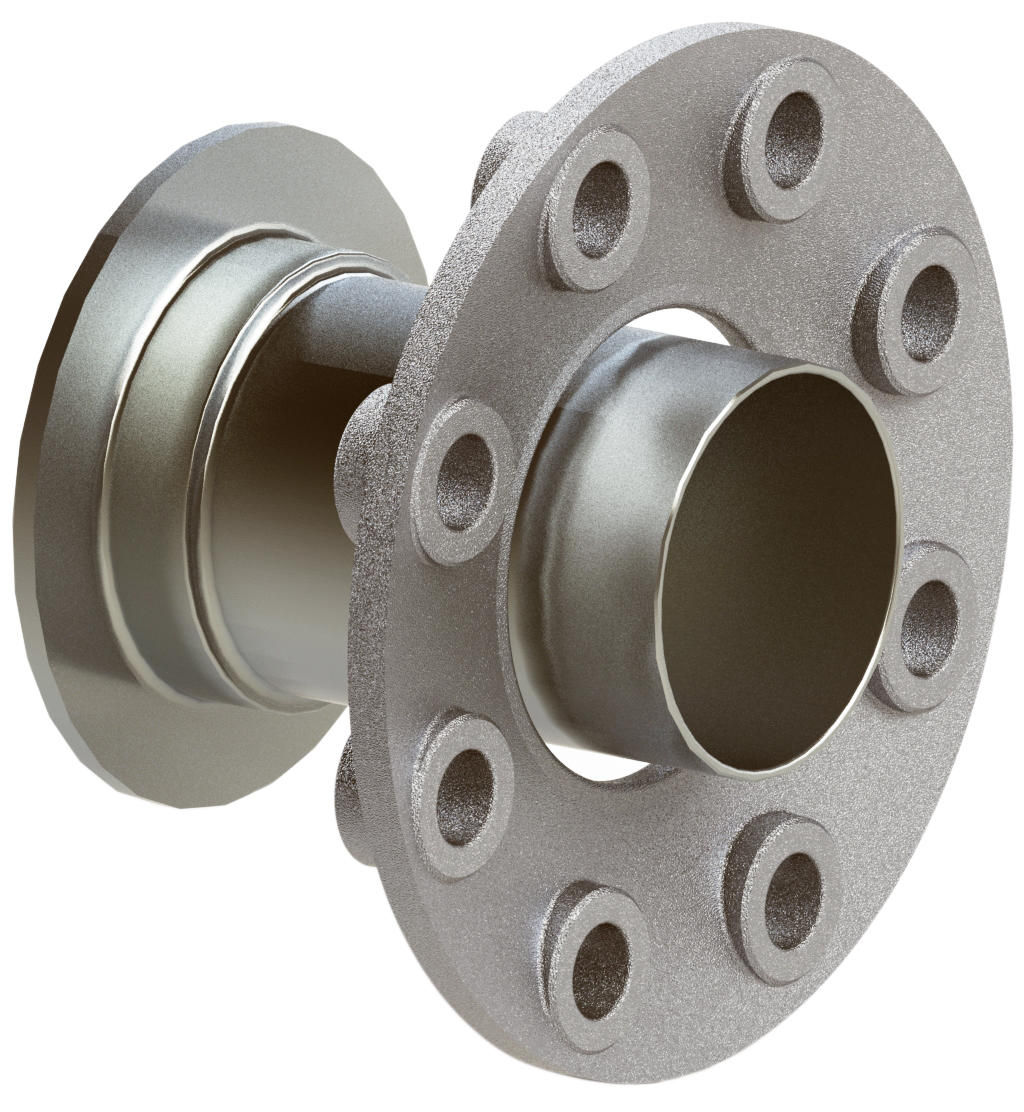

FLANGED ADAPTER - ANSI 150-LB
Technical characteristics / catalogFile BIM Aignep Scan Labels Instructions Certifications

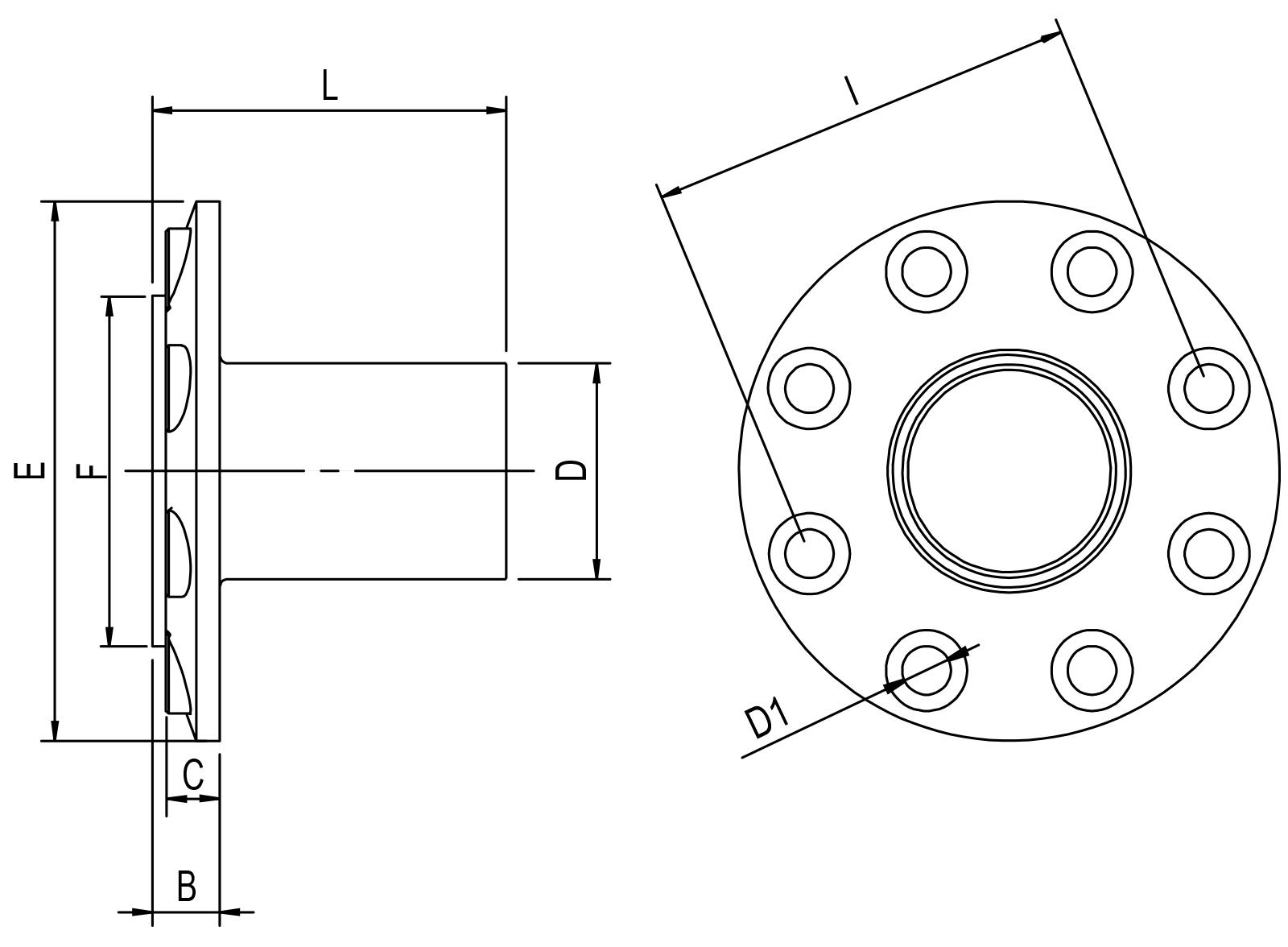

| Code | Draw | D | B | C | E | F | L | D1 | I | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 90014 00 001 | Download | 80 | 0.984 (25) | 0.787 (20) | 7.500 (190.5) | 5.118 (130) | 5.157 (131) | 0.748 (19) | 6.000 (152.4) | 1 | |
| 90014 00 002 | Download | 110 | 0.984 (25) | 0.787 (20) | 9.000 (228.6) | 6.220 (158) | 6.535 (166) | 0.748 (19) | 7.500 (190.5) | 1 | |
| 90014 00 003 | Download | 168 | 1.063 (27) | 0.866 (22) | 11.004 (279.5) | 8.504 (216) | 10.472 (266) | 0.866 (22) | 9.508 (241.5) | 1 |
The connection dimensions of the flange are designed in conformity with standard ANSI 150-LB (Flange made in aluminium alloy).
