90000AZ-6MT

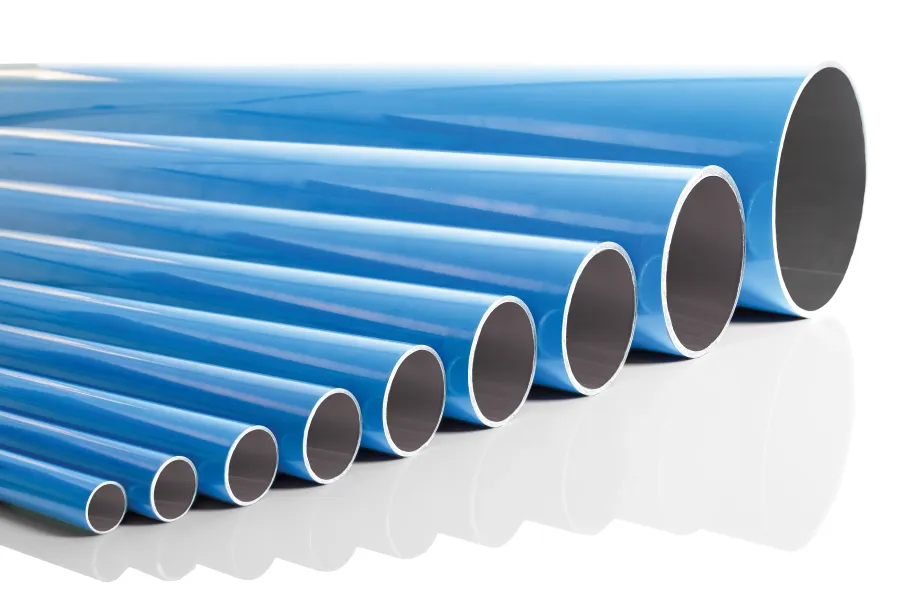

CALIBRATED ALUMINIUM TUBES LIGHT BLUE COLOUR - 6 MT

Code	USA REF	Draw	Ø Ext.	Wall Thickness	Max Pressure	Weight	Lenght	Bag
90000 6 020 AZ	90000LB-6-20	Download	20 mm	0.059 (1.5 )	16 Bar	235 gr/m	5,95 m (0.234)	8
90000 6 025 AZ	90000LB-6-25	Download	25 mm	0.059 (1.5 )	16 Bar	298 gr/m	5,95 m (0.234)	8
90000 6 032 AZ	90000LB-6-32	Download	32 mm	0.059 (1.5 )	16 Bar	387 gr/m	5,95 m (0.234)	9
90000 6 040 AZ	90000LB-6-40	Download	40 mm	0.059 (1.5 )	16 Bar	490 gr/m	5,95 m (0.234)	4
90000 6 050 AZ	90000LB-6-50	Download	50 mm	0.079 (2 )	16 Bar	814 gr/m	5,95 m (0.234)	4
90000 6 063 AZ	90000LB-6-63	Download	63 mm	0.079 (2 )	16 Bar	1034 gr/m	5,95 m (0.234)	2
90000 6 080 AZ	90000LB-6-80	Download	80 mm	0.079 (2 )	16 Bar	1283 gr/m	5,95 m (0.234)	2
90000 6 110 AZ	90000LB-6-110	Download	110 mm	0.098 (2.5 )	16 Bar	2280 gr/m	5,95 m (0.234)	1
90000 6 168 AZ	90000LB-6-168	Download	168 mm	0.157 (4 )	16 Bar	5700 gr/m	5,95 m (0.234)	1

Code	Draw	Ø Ext.	Wall Thickness	Max Pressure	Weight	Lenght	Bag
90000 6 020 AZ	Download	20 mm	0.059 (1.5 )	16 Bar	235 gr/m	5,95 m (0.234)	8
90000 6 025 AZ	Download	25 mm	0.059 (1.5 )	16 Bar	298 gr/m	5,95 m (0.234)	8
90000 6 032 AZ	Download	32 mm	0.059 (1.5 )	16 Bar	387 gr/m	5,95 m (0.234)	9
90000 6 040 AZ	Download	40 mm	0.059 (1.5 )	16 Bar	490 gr/m	5,95 m (0.234)	4
90000 6 050 AZ	Download	50 mm	0.079 (2 )	16 Bar	814 gr/m	5,95 m (0.234)	4
90000 6 063 AZ	Download	63 mm	0.079 (2 )	16 Bar	1034 gr/m	5,95 m (0.234)	2
90000 6 080 AZ	Download	80 mm	0.079 (2 )	16 Bar	1283 gr/m	5,95 m (0.234)	2
90000 6 110 AZ	Download	110 mm	0.098 (2.5 )	16 Bar	2280 gr/m	5,95 m (0.234)	1
90000 6 168 AZ	Download	168 mm	0.157 (4 )	16 Bar	5700 gr/m	5,95 m (0.234)	1

Air Pipeline "INFINITY" Series
