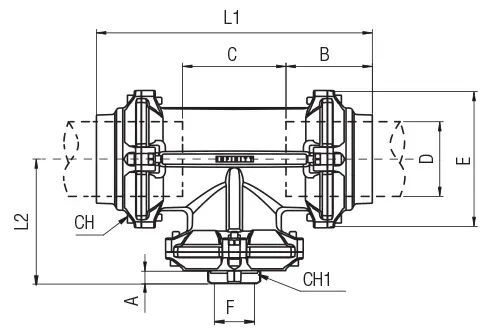

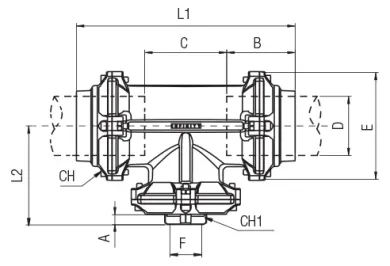

| Code | 3D-Zeichnungen | Nummer | D | F | A | B | C | E | L1 | L2 | CH | CH1 | * | Verpackung | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9023600009 | Zugang anfordern | 90236 00 009 | 80 | 3/4 | 14.5 | 91 | 109 | 145 | 291.5 | 138 | 6 | 42 | Hakenschlüssel Abmessungen | 1 | |
| 9023600010 | Zugang anfordern | 90236 00 010 | 80 | 1" | 17 | 91 | 109 | 145 | 291.5 | 138 | 6 | 49 | Hakenschlüssel Abmessungen | 1 | |
| 9023600011 | Zugang anfordern | 90236 00 011 | 80 | 1" 1/2 | 20 | 91 | 109 | 145 | 291.5 | 138 | 6 | 66 | Hakenschlüssel Abmessungen | 1 | |
| 9023600012 | Zugang anfordern | 90236 00 012 | 80 | 2" | 22 | 91 | 109 | 145 | 291.5 | 138 | 6 | 80 | Hakenschlüssel Abmessungen | 1 | |
| 9023600013 | Zugang anfordern | 90236 00 013 | 110 | 3/4 | 14.5 | 125.5 | 150.5 | 200 | 401 | 180 | 8 | 42 | Hakenschlüssel Abmessungen | 1 | |
| 9023600014 | Zugang anfordern | 90236 00 014 | 110 | 1" | 17 | 125.5 | 150.5 | 200 | 401 | 180 | 8 | 49 | Hakenschlüssel Abmessungen | 1 | |
| 9023600015 | Zugang anfordern | 90236 00 015 | 110 | 1" 1/2 | 20 | 125.5 | 150.5 | 200 | 401 | 180 | 8 | 66 | Hakenschlüssel Abmessungen | 1 | |
| 9023600026 | Zugang anfordern | 90236 00 026 | 110 | 3" | 24 | 125.5 | 150.5 | 200 | 401 | 187.5 | 8 | 120 | Hakenschlüssel Abmessungen | 1 | |
| 9023600016 | Zugang anfordern | 90236 00 016 | 110 | 2" | 22 | 125.5 | 150.5 | 200 | 401 | 180 | 8 | 80 | Hakenschlüssel Abmessungen | 1 | |
| 9023600021 | Zugang anfordern | 90236 00 021 | 168 | 3/4 | 14.5 | 194 | 235 | 306 | 623 | 275 | 10 | *41,5 | Hakenschlüssel Abmessungen | 1 | |
| 9023600022 | Zugang anfordern | 90236 00 022 | 168 | 1" | 17 | 194 | 235 | 306 | 623 | 277 | 10 | *48 | Hakenschlüssel Abmessungen | 1 | |
| 9023600023 | Zugang anfordern | 90236 00 023 | 168 | 2" | 22 | 194 | 235 | 306 | 623 | 277 | 10 | *78 | Hakenschlüssel Abmessungen | 1 | |
| 9023600024 | Zugang anfordern | 90236 00 024 | 168 | 3" | 24 | 194 | 235 | 306 | 623 | 277 | 10 | *119 | Hakenschlüssel Abmessungen | 1 | |
| 9023600025 | Zugang anfordern | 90236 00 025 | 168 | 4" | 24 | 194 | 235 | 306 | 623 | 286 | 10 | *124 | Hakenschlüssel Abmessungen | 1 |
