8925

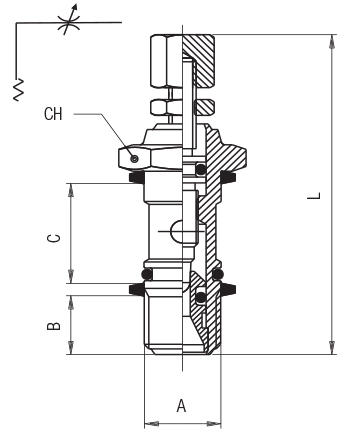

Code | Dessin 3D | A | B | C | L Min | L Max | CH | Conditionnement | ||
---|---|---|---|---|---|---|---|---|---|---|
08925 00 001 | Download | M5 | 4 | 12,5 | 33 | 37.5 | 8 | 10 | ||
08925 00 002 | Download | 1/8 | 5,5 | 15 | 41 | 46.5 | 14 | 10 | ||
08925 00 003 | Download | 1/4 | 8,5 | 17 | 46,5 | 52.5 | 17 | 10 | ||
08925 00 004 | Download | 3/8 | 9 | 20 | 56,5 | 63,5 | 20 | 10 | ||
08925 00 005 | Download | 1/2 | 10 | 24 | 62 | 69,5 | 24 | 10 |
Code | Dessin 3D | A | B | C | L Min | L Max | CH | Conditionnement |
---|---|---|---|---|---|---|---|---|
08925 00 001 | Download | M5 | 4 | 12,5 | 33 | 37.5 | 8 | 10 |
08925 00 002 | Download | 1/8 | 5,5 | 15 | 41 | 46.5 | 14 | 10 |
08925 00 003 | Download | 1/4 | 8,5 | 17 | 46,5 | 52.5 | 17 | 10 |
08925 00 004 | Download | 3/8 | 9 | 20 | 56,5 | 63,5 | 20 | 10 |
08925 00 005 | Download | 1/2 | 10 | 24 | 62 | 69,5 | 24 | 10 |
