13220

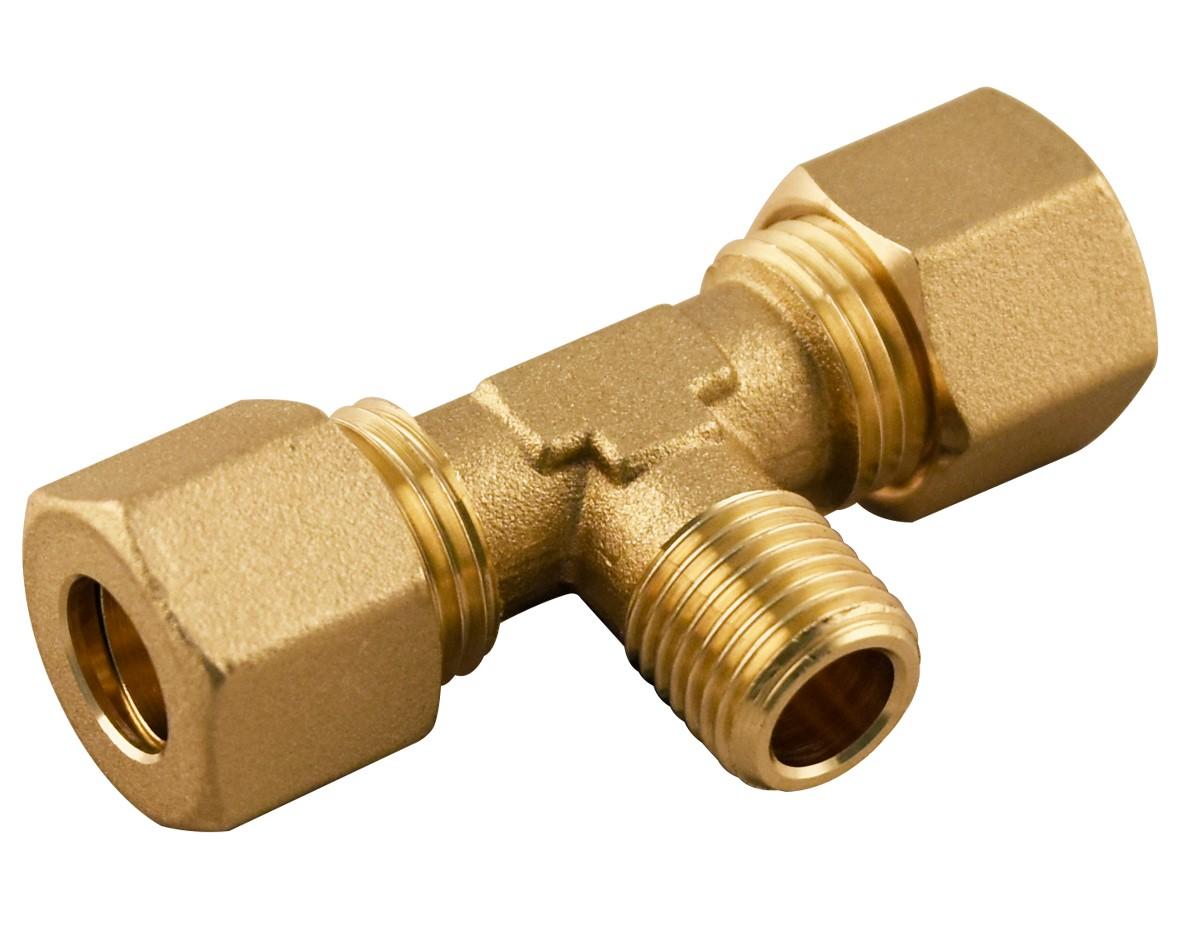

TÉ À PIQUAGE MÂLE CENTRAL, CONIQUE
Caractéristiques Techniques / CatalogueEtiquettes Aignep Scan Certificats

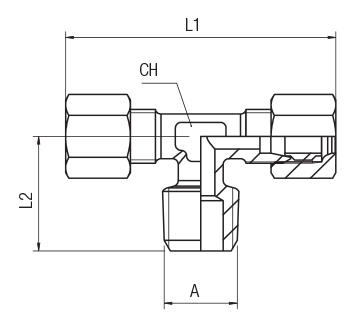

| Code | Dessin 3D | Tube | A | L1 | L2 | CH | Conditionnement |
|---|---|---|---|---|---|---|---|
| 13220 00 001 | Download | 4 | 1/8 | 45 | 15 | 8 | 10 |
| 13220 00 002 | Download | 6 | 1/8 | 48 | 16,5 | 9 | 10 |
| 13220 00 003 | Download | 6 | 1/4 | 48 | 20,5 | 9 | 10 |
| 13220 00 004 | Download | 8 | 1/8 | 57 | 16,5 | 12 | 10 |
| 13220 00 005 | Download | 8 | 1/4 | 57 | 20,5 | 12 | 10 |
| 13220 00 006 | Download | 8 | 3/8 | 61 | 23 | 13 | 10 |
| 13220 00 007 | Download | 10 | 1/4 | 64 | 22,5 | 13 | 10 |
| 13220 00 008 | Download | 10 | 3/8 | 64 | 23,5 | 13 | 10 |
| 13220 00 009 | Download | 10 | 1/2 | 68 | 27 | 14 | 10 |
| 13220 00 010 | Download | 12 | 1/4 | 69 | 24,5 | 14 | 10 |
| 13220 00 011 | Download | 12 | 3/8 | 69 | 25 | 14 | 10 |
| 13220 00 012 | Download | 12 | 1/2 | 69 | 26,5 | 14 | 10 |
| 13220 00 013 | Download | 14 | 3/8 | 74 | 26 | 16 | 10 |
| 13220 00 014 | Download | 14 | 1/2 | 77 | 31 | 18 | 10 |
| 13220 00 015 | Download | 15 | 1/2 | 78 | 31 | 18 | 10 |
| 13220 00 016 | Download | 16 | 1/2 | 78,5 | 29 | 17 | 10 |
| 13220 00 017 | Download | 18 | 1/2 | 83 | 29,5 | 20 | 10 |
| 13220 00 018 | Download | 18 | 3/4 | 83 | 32,5 | 20 | 10 |
| 13220 00 019 | Download | 22 | 3/4 | 89 | 34 | 27 | 10 |
