13550

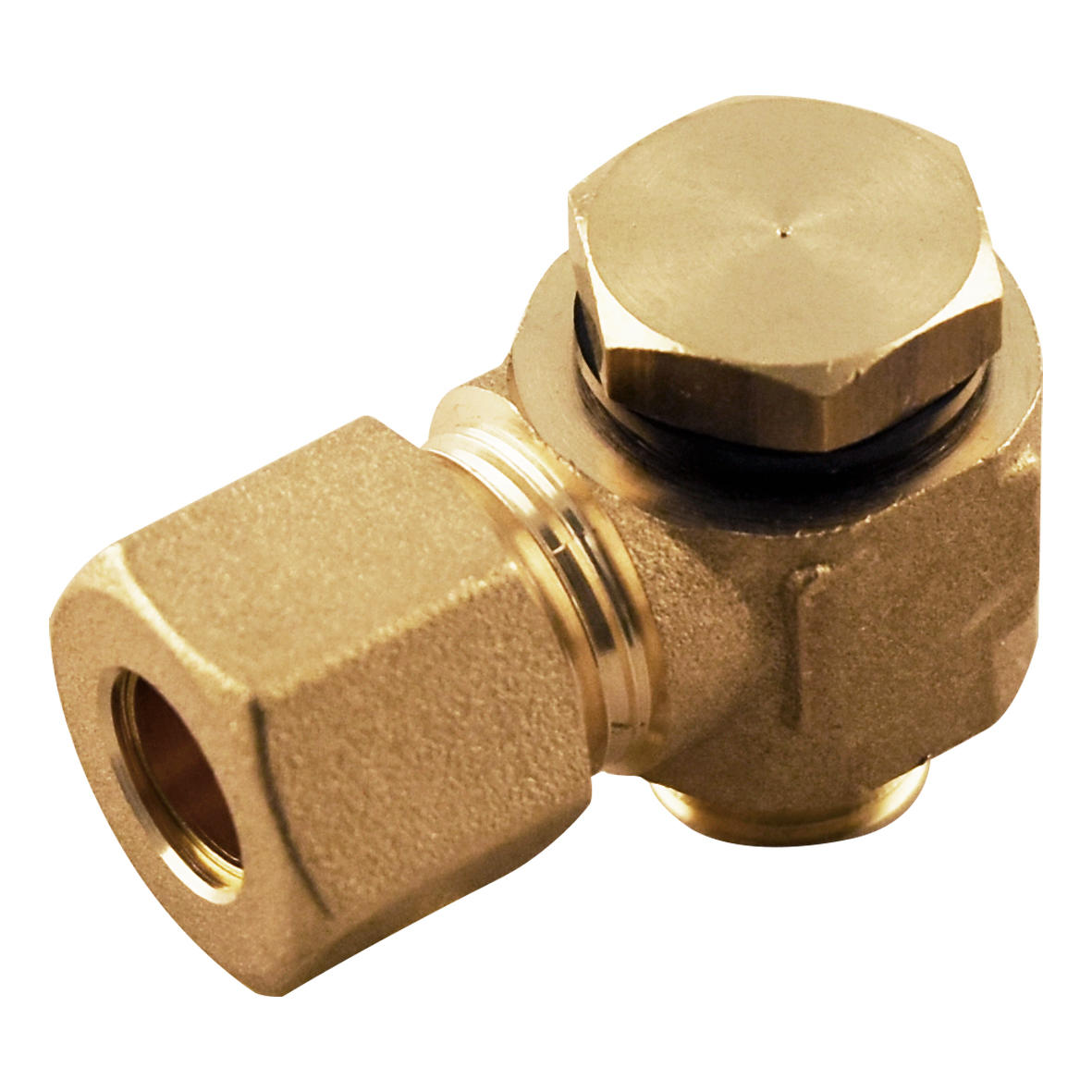

EQUERRE MÂLE BANJO, ORIENTABLE
Caractéristiques Techniques / CatalogueEtiquettes Aignep Scan Certificats

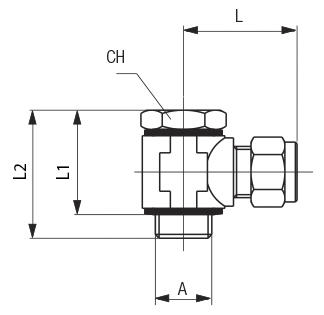

| Code | Dessin 3D | Tube | A | L | L2 | L1 | CH | °C Min | °C Max | Conditionnement |
|---|---|---|---|---|---|---|---|---|---|---|
| 13550 00 001 | Download | 4 | 1/8 | 22,5 | 31 | 24,5 | 14 | -20 | +80 | 10 |
| 13550 00 002 | Download | 6 | 1/8 | 23,5 | 31 | 24,5 | 14 | -20 | +80 | 10 |
| 13550 00 003 | Download | 6 | 1/4 | 26,5 | 32 | 25 | 17 | -20 | +80 | 10 |
| 13550 00 004 | Download | 8 | 1/8 | 28,5 | 31 | 24,5 | 14 | -20 | +80 | 10 |
| 13550 00 005 | Download | 8 | 1/4 | 28,5 | 32 | 25 | 17 | -20 | +80 | 10 |
| 13550 00 006 | Download | 8 | 3/8 | 30 | 36 | 27,5 | 19 | -20 | +80 | 10 |
| 13550 00 007 | Download | 10 | 1/4 | 32,5 | 32 | 25 | 17 | -20 | +80 | 10 |
| 13550 00 008 | Download | 10 | 3/8 | 32,5 | 36 | 27,5 | 19 | -20 | +80 | 10 |
| 13550 00 009 | Download | 14 | 1/4 | 37 | 44 | 38 | 17 | -20 | +80 | 10 |
| 13550 00 010 | Download | 14 | 3/8 | 37 | 46 | 38 | 22 | -20 | +80 | 10 |
| 13550 00 011 | Download | 14 | 1/2 | 37 | 49 | 39,5 | 24 | -20 | +80 | 10 |
| 13550 00 012 | Download | 22 | 3/4 | 47 | 64 | 55 | 32 | -20 | +80 | 10 |
