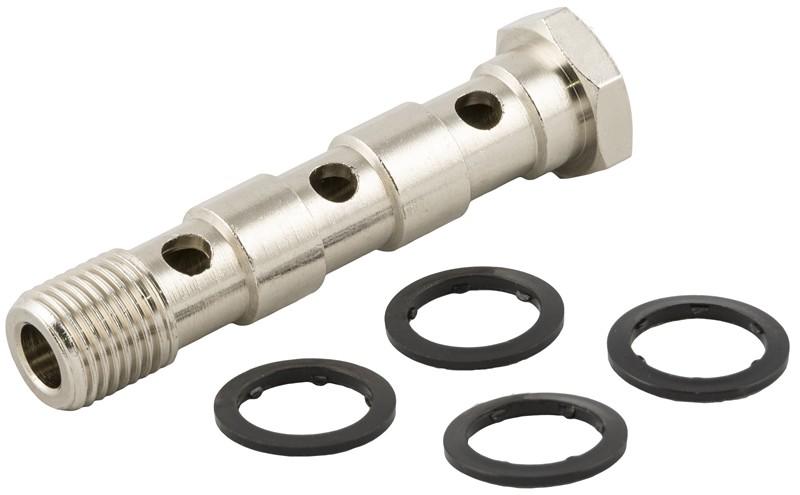

Livré avec joints en PA66 (ART. 1610).

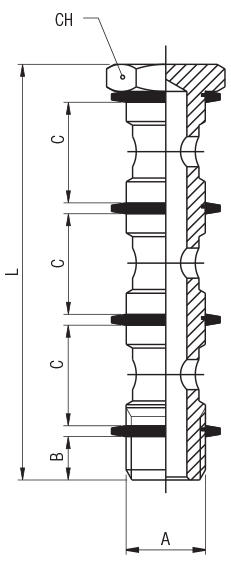

Code | Dessin 3D | A | B | C | L | CH | Conditionnement | ||
---|---|---|---|---|---|---|---|---|---|
51430 00 011 | Download | 1/8 | 6 | 15 | 61 | 14 | 10 | ||
51430 00 012 | Download | 1/4 | 8 | 17 | 69 | 17 | 10 | ||
51430 00 013 | Download | 3/8 | 9 | 20 | 80 | 19 | 10 | ||
51430 00 014 | Download | 1/2 | 10 | 24 | 94 | 24 | 10 |
Code | Dessin 3D | A | B | C | L | CH | Conditionnement |
---|---|---|---|---|---|---|---|
51430 00 011 | Download | 1/8 | 6 | 15 | 61 | 14 | 10 |
51430 00 012 | Download | 1/4 | 8 | 17 | 69 | 17 | 10 |
51430 00 013 | Download | 3/8 | 9 | 20 | 80 | 19 | 10 |
51430 00 014 | Download | 1/2 | 10 | 24 | 94 | 24 | 10 |
