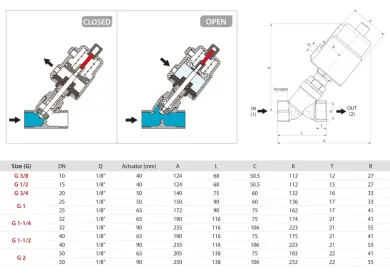

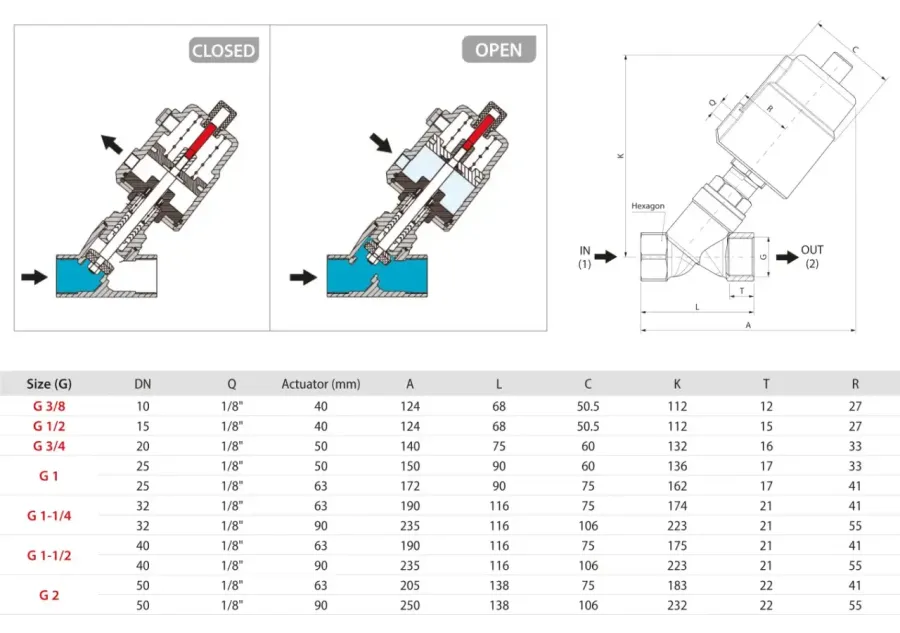

Serie X1Y - 2/2 NC

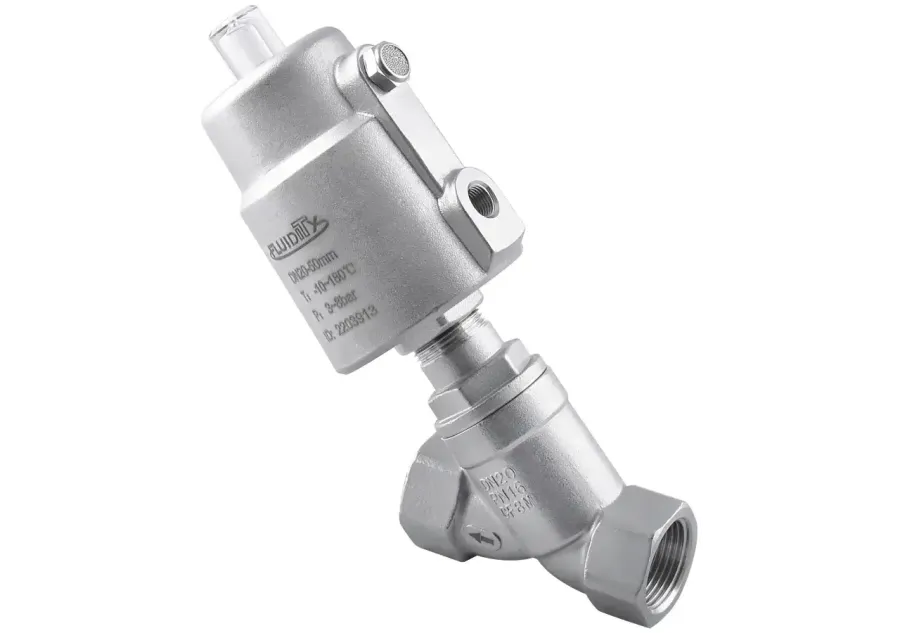

VÁLVULAS DE ASIENTO INCLINADO - ENTRADA POR DEBAJO DEL ASIENTO - ACTUADOR ACERO INOXIDABLE
Características técnicas / catálogoEtiquetas aignep scan Certificaciones
| Código | Diseño 3D | Material juntas | Temperatura | Conexiones | DN (mm) | Ø Orificio (mm) | Viscosidad (cSt) | Kv (m3/h) | Tamaño de actuator (mm) | Control de presión | OPD (ΔP) | Embute |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X1Y 04 1 040 0 | Download | PTFE | -10°C +180°C | 3/8" | 10 | 13 | 600 | 3.9 | 40 | ≥ 4 bar | 0 - 13 bar | 1 |
| X1Y 05 1 040 0 | Download | PTFE | -10°C +180°C | 1/2" | 15 | 13 | 600 | 4.3 | 40 | ≥ 4 bar | 0 - 13 bar | 1 |
| X1Y 07 1 050 0 | Download | PTFE | -10°C +180°C | 3/4" | 20 | 18 | 600 | 7.6 | 50 | ≥ 4.5 bar | 0 - 14 bar | 1 |
| X1Y 09 1 050 0 | Download | PTFE | -10°C +180°C | 1" | 25 | 24 | 600 | 15.8 | 50 | ≥ 4.5 bar | 0 - 8 bar | 1 |
| X1Y 09 1 063 0 | Download | PTFE | -10°C +180°C | 1" | 25 | 24 | 600 | 15.8 | 63 | ≥ 5 bar | 0 - 13 bar | 1 |
| X1Y XF 1 063 0 | Download | PTFE | -10°C +180°C | 1"1/4 | 32 | 31 | 600 | 26 | 63 | ≥ 5 bar | 0 - 6 bar | 1 |
| X1Y XF 1 090 0 | Download | PTFE | -10°C +180°C | 1"1/4 | 32 | 31 | 600 | 26 | 90 | ≥ 6 bar | 0 - 16 bar | 1 |
| X1Y XG 1 063 0 | Download | PTFE | -10°C +180°C | 1"1/2 | 40 | 35 | 600 | 32 | 63 | ≥ 5 bar | 0 - 5 bar | 1 |
| X1Y XG 1 090 0 | Download | PTFE | -10°C +180°C | 1"1/2 | 40 | 35 | 600 | 32 | 90 | ≥ 6 bar | 0 - 16 bar | 1 |
| X1Y XH 1 063 0 | Download | PTFE | -10°C +180°C | 2" | 50 | 45 | 600 | 52 | 63 | ≥ 5 bar | 0 - 2 bar | 1 |
| X1Y XH 1 090 0 | Download | PTFE | -10°C +180°C | 2" | 50 | 45 | 600 | 52 | 90 | ≥ 6 bar | 0 - 10 bar | 1 |
