AH

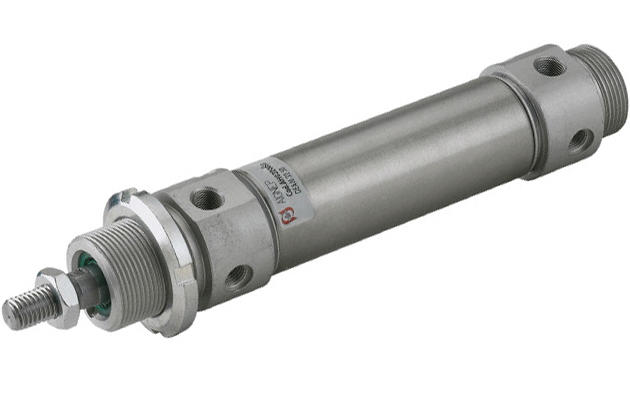

DOBLE EFECTO AMORTIGUADO MAGNÉTICO
Características técnicas / catálogoEtiquetas aignep scan Instrucción / Ejemplo de aplicación Certificaciones

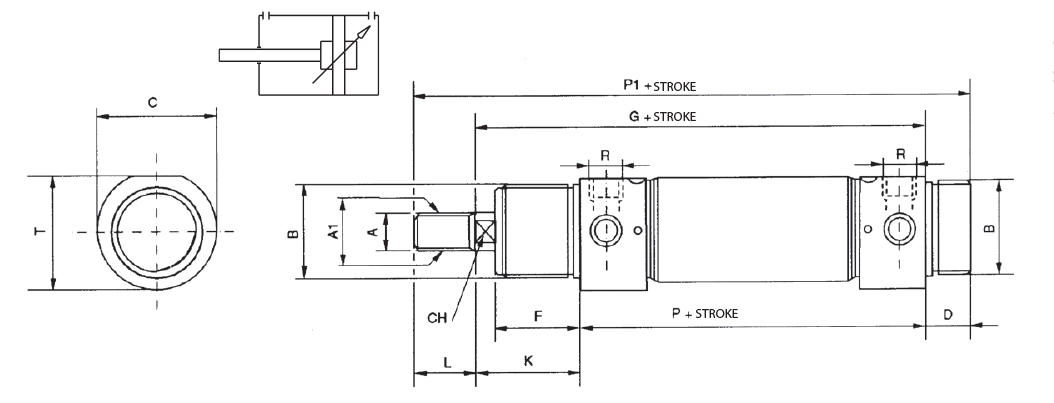

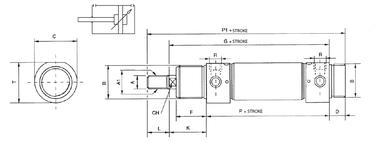

| Código | Diseño 3D | Ø | Carrera | A | A1 | B | T | C | D | F | G | K | L | P | P1 | CH | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AH 032 0025 | Download | 32 | 25 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0050 | Download | 32 | 50 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0080 | Download | 32 | 80 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0100 | Download | 32 | 100 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0125 | Download | 32 | 125 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0160 | Download | 32 | 160 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0200 | Download | 32 | 200 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0250 | Download | 32 | 250 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0320 | Download | 32 | 320 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0400 | Download | 32 | 400 | M10X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
| AH 032 0500 | Download | 32 | 500 | M12X1,25 | 12 | M30X1,5 | 36.5 | 38 | 14 | 30 | 134 | 38 | 20 | 96 | 168 | 10 | 1/8" GAS |
