01VS
SOLENOID PILOT VALVE
| Code | 3D Drawings | Ways | Reactuation | Function | Size | Bag | |
|---|---|---|---|---|---|---|---|
| 01V S4 3 NC 02 | Request access | 3/2 | MONOSTABLE PNEUMATIC RETURN | NC | 1/8 | 1 | |
| 01V S4 3 NC 03 | Request access | 3/2 | MONOSTABLE PNEUMATIC RETURN | NC | 1/4 | 1 | |

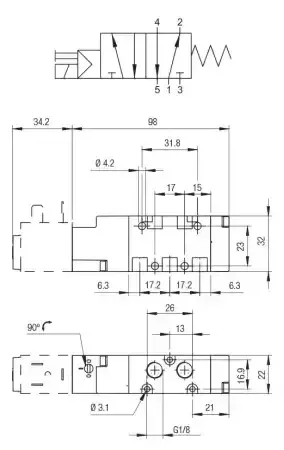

| 01V S4 5 00 02 | Request access | 5/2 | MONOSTABLE PNEUMATIC RETURN | 1/8 | 1 | ||

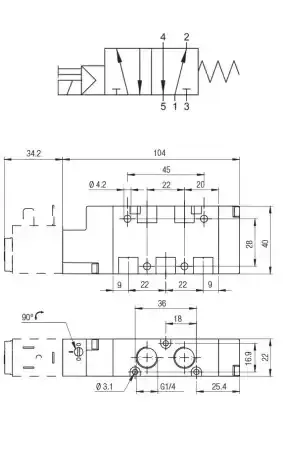

| 01V S4 5 00 03 | Request access | 5/2 | MONOSTABLE PNEUMATIC RETURN | 1/4 | 1 | ||
| 01V S5 3 NC 02 | Request access | 3/2 | SPRING PNEUMATIC RETURN | NC | 1/8 | 1 | |
| 01V S5 3 NC 03 | Request access | 3/2 | SPRING PNEUMATIC RETURN | NC | 1/4 | 1 | |
| 01V S5 5 00 02 | Request access | 5/2 | SPRING PNEUMATIC RETURN | 1/8 | 1 | ||
| 01V S5 5 00 03 | Request access | 5/2 | SPRING PNEUMATIC RETURN | 1/4 | 1 | ||
| 01V S0 3 NC 02 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NC | 1/8 | 1 | |
| 01V S0 3 NC 03 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NC | 1/4 | 1 | |
| 01V S0 3 NC 04 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NC | 3/8 | 1 | |
| 01V S0 3 NC 05 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NC | 1/2 | 1 | |
| 01V S0 3 NO 02 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NO | 1/8 | 1 | |

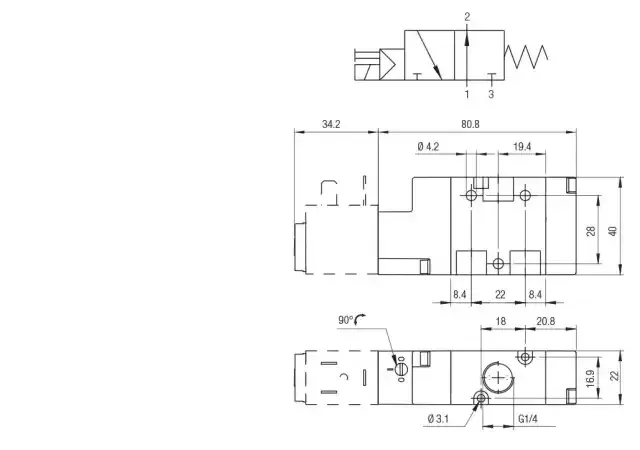

| 01V S0 3 NO 03 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NO | 1/4 | 1 | |

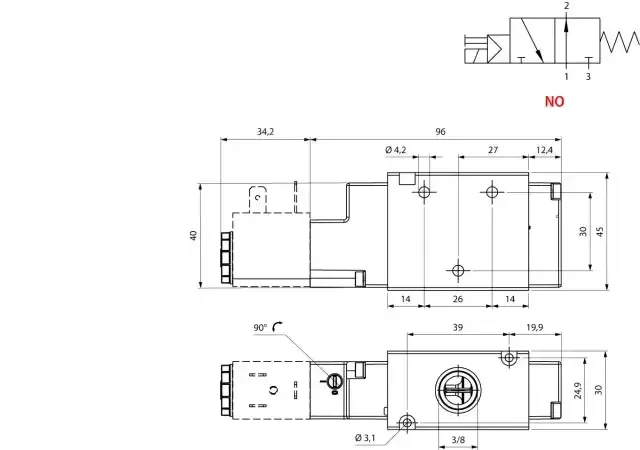

| 01V S0 3 NO 04 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NO | 3/8 | 1 | |

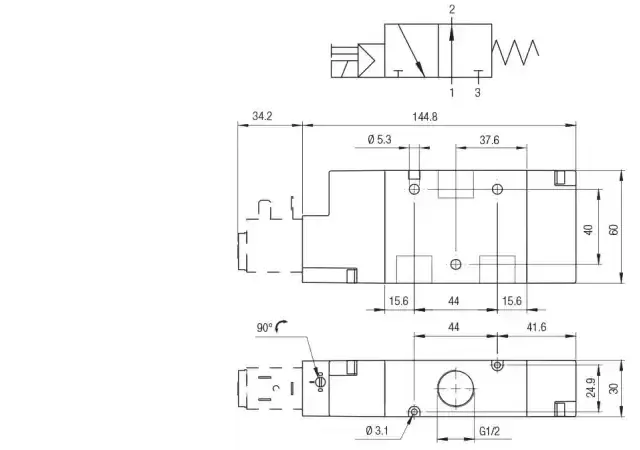

| 01V S0 3 NO 05 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NO | 1/2 | 1 | |

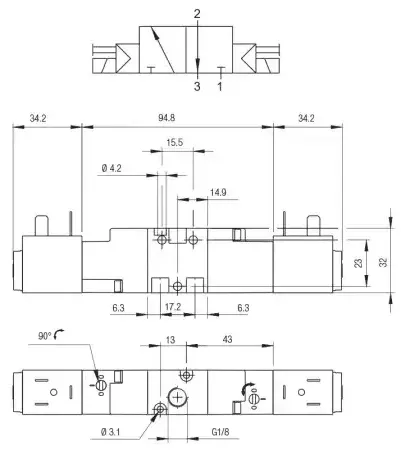

| 01V S1 3 00 02 | Request access | 3/2 | TWO STABLE POSITIONS | 1/8 | 1 | ||

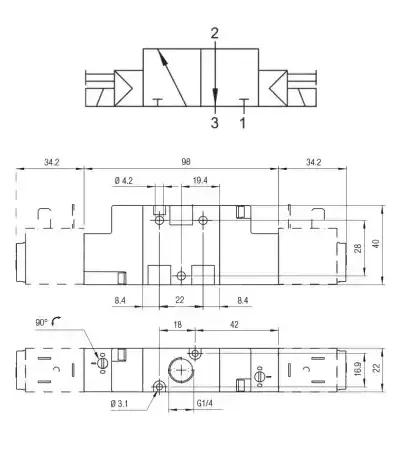

| 01V S1 3 00 03 | Request access | 3/2 | TWO STABLE POSITIONS | 1/4 | 1 | ||

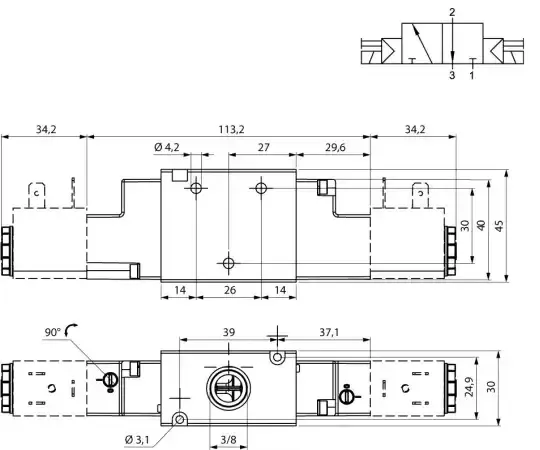

| 01V S1 3 00 04 | Request access | 3/2 | TWO STABLE POSITIONS | 3/8 | 1 | ||

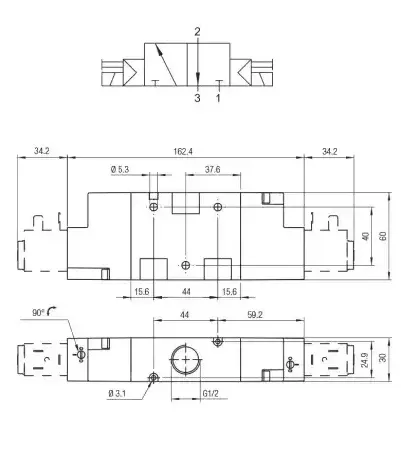

| 01V S1 3 00 05 | Request access | 3/2 | TWO STABLE POSITIONS | 1/2 | 1 | ||

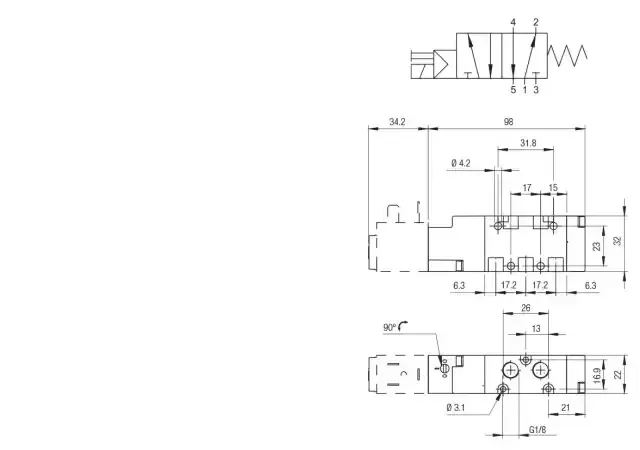

| 01V S0 5 00 02 | Request access | 5/2 | MONOSTABLE SPRING RETURN | 1/8 | 1 | ||

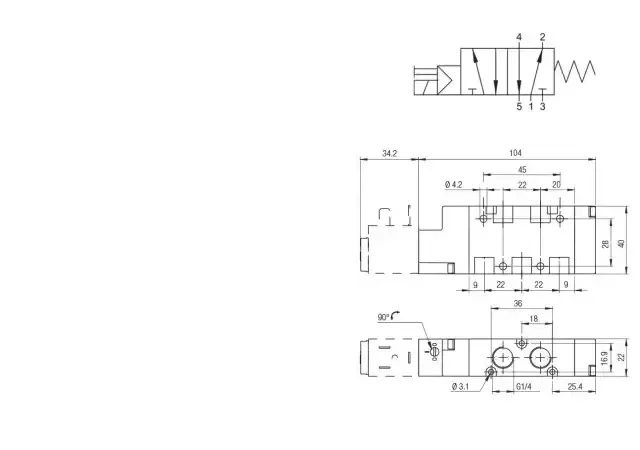

| 01V S0 5 00 03 | Request access | 5/2 | MONOSTABLE SPRING RETURN | 1/4 | 1 | ||

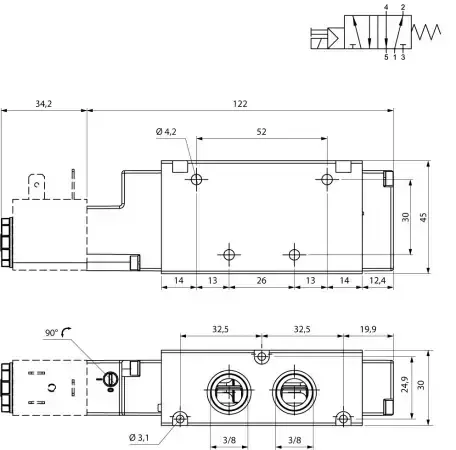

| 01V S0 5 00 04 | Request access | 5/2 | MONOSTABLE SPRING RETURN | 3/8 | 1 | ||

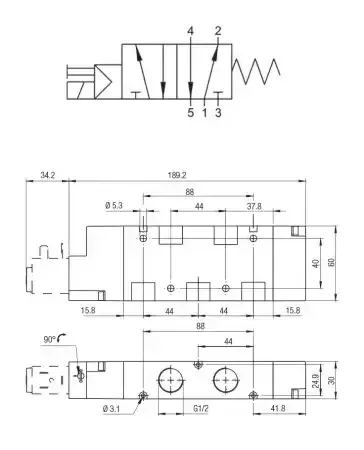

| 01V S0 5 00 05 | Request access | 5/2 | MONOSTABLE SPRING RETURN | 1/2 | 1 | ||

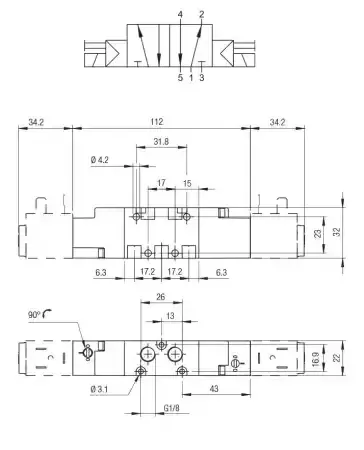

| 01V S1 5 00 02 | Request access | 5/2 | TWO STABLE POSITIONS | 1/8 | 1 | ||

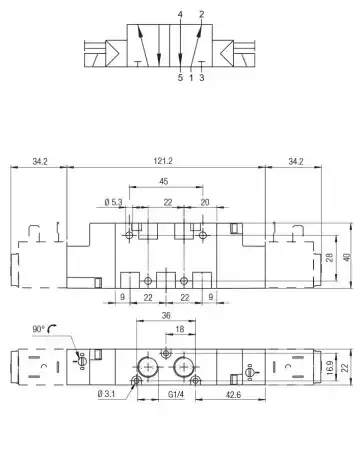

| 01V S1 5 00 03 | Request access | 5/2 | TWO STABLE POSITIONS | 1/4 | 1 | ||

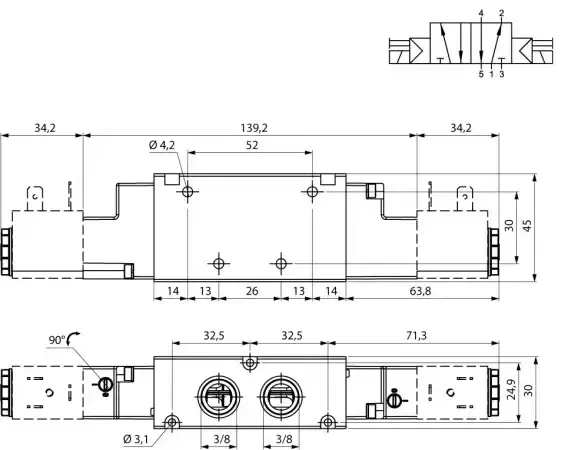

| 01V S1 5 00 04 | Request access | 5/2 | TWO STABLE POSITIONS | 3/8 | 1 | ||

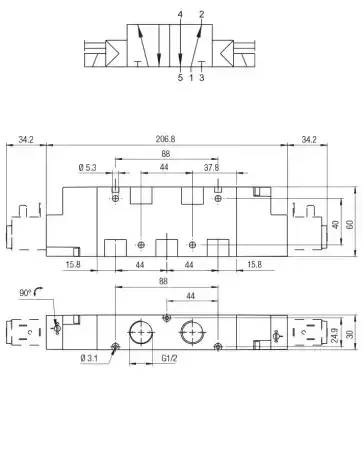

| 01V S1 5 00 05 | Request access | 5/2 | TWO STABLE POSITIONS | 1/2 | 1 | ||

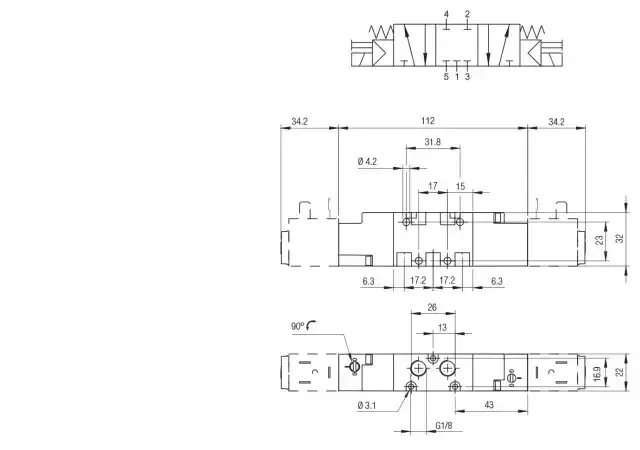

| 01V S0 7 CC 02 | Request access | 5/3 | MONOSTABLE SPRING RETURN | CC | 1/8 | 1 | |

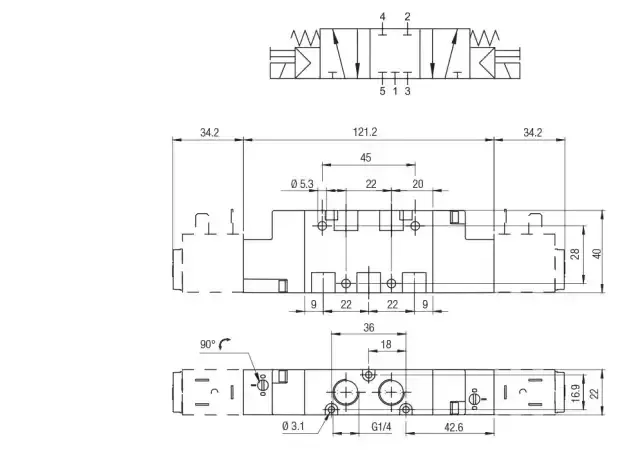

| 01V S0 7 CC 03 | Request access | 5/3 | MONOSTABLE SPRING RETURN | CC | 1/4 | 1 | |

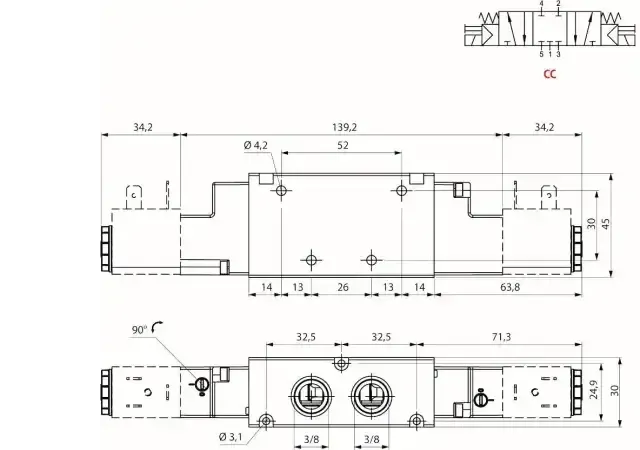

| 01V S0 7 CC 04 | Request access | 5/3 | MONOSTABLE SPRING RETURN | CC | 3/8 | 1 | |

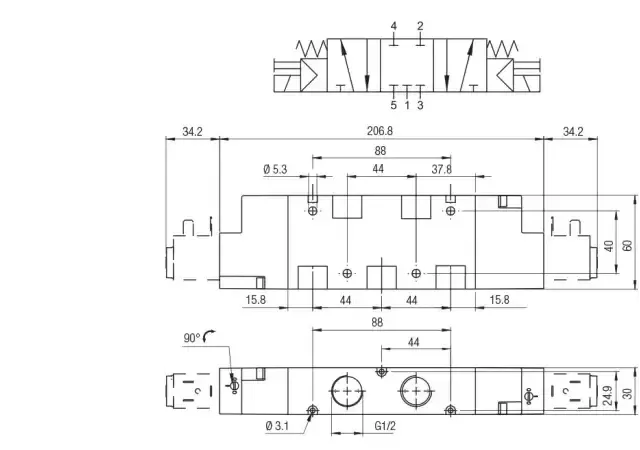

| 01V S0 7 CC 05 | Request access | 5/3 | MONOSTABLE SPRING RETURN | CC | 1/2 | 1 | |

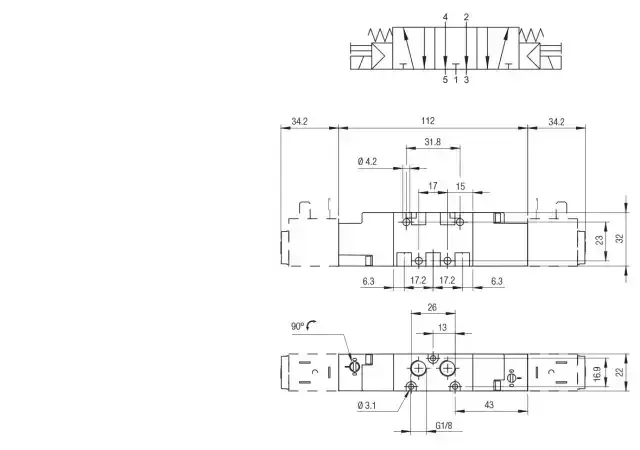

| 01V S0 7 OC 02 | Request access | 5/3 | MONOSTABLE SPRING RETURN | OC | 1/8 | 1 | |

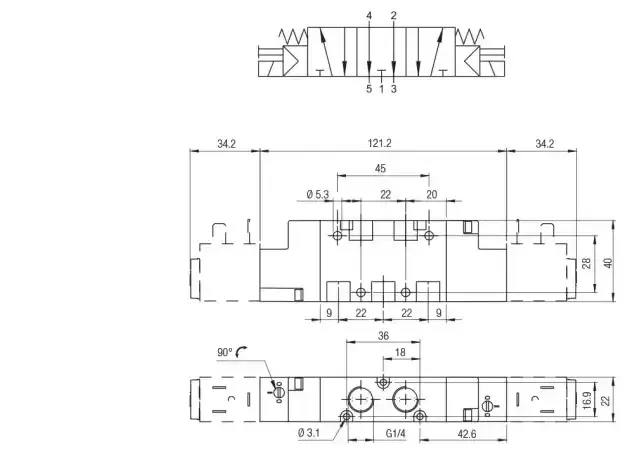

| 01V S0 7 OC 03 | Request access | 5/3 | MONOSTABLE SPRING RETURN | OC | 1/4 | 1 | |

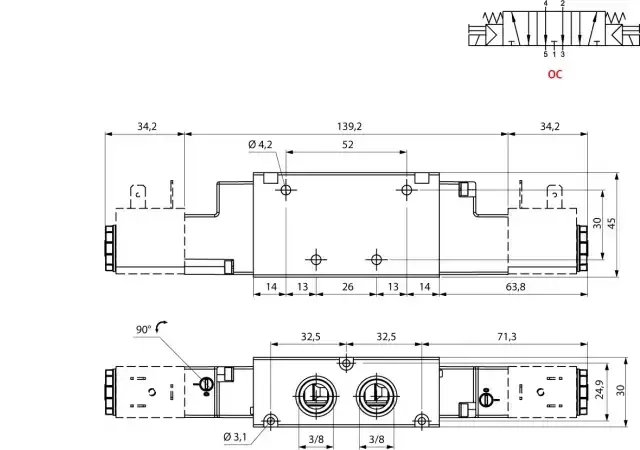

| 01V S0 7 OC 04 | Request access | 5/3 | MONOSTABLE SPRING RETURN | OC | 3/8 | 1 | |

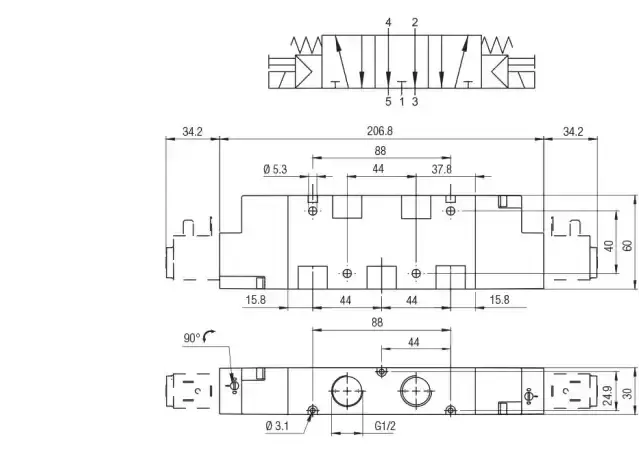

| 01V S0 7 OC 05 | Request access | 5/3 | MONOSTABLE SPRING RETURN | OC | 1/2 | 1 | |

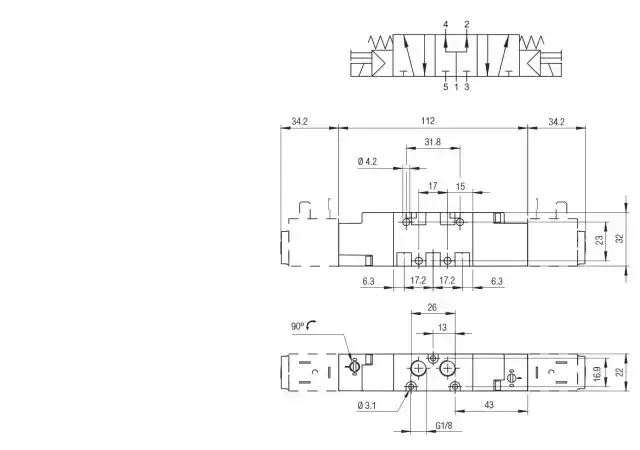

| 01V S0 7 PC 02 | Request access | 5/3 | MONOSTABLE SPRING RETURN | PC | 1/8 | 1 | |

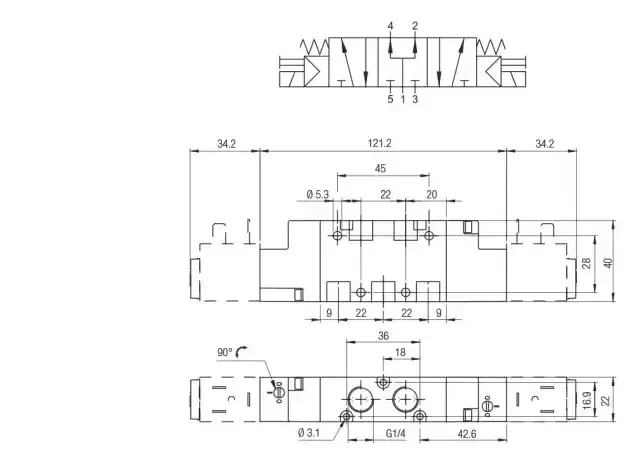

| 01V S0 7 PC 03 | Request access | 5/3 | MONOSTABLE SPRING RETURN | PC | 1/4 | 1 | |

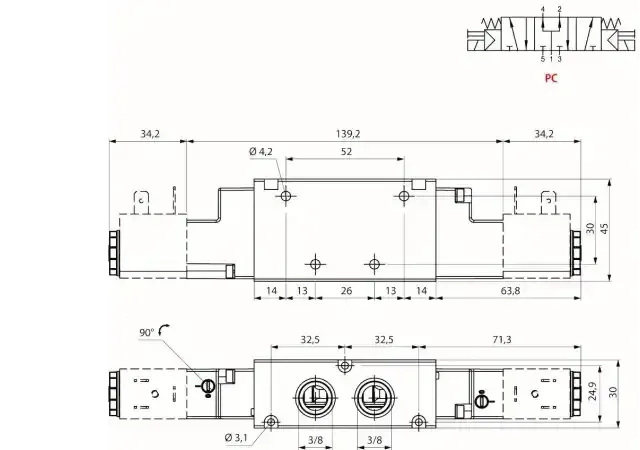

| 01V S0 7 PC 04 | Request access | 5/3 | MONOSTABLE SPRING RETURN | PC | 3/8 | 1 | |

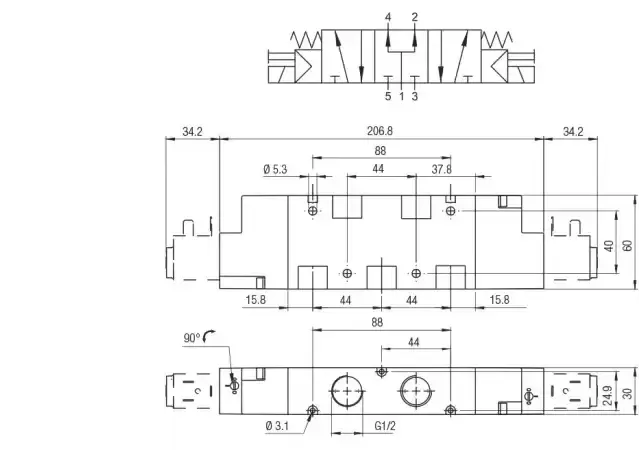

| 01V S0 7 PC 05 | Request access | 5/3 | MONOSTABLE SPRING RETURN | PC | 1/2 | 1 |
