01VL

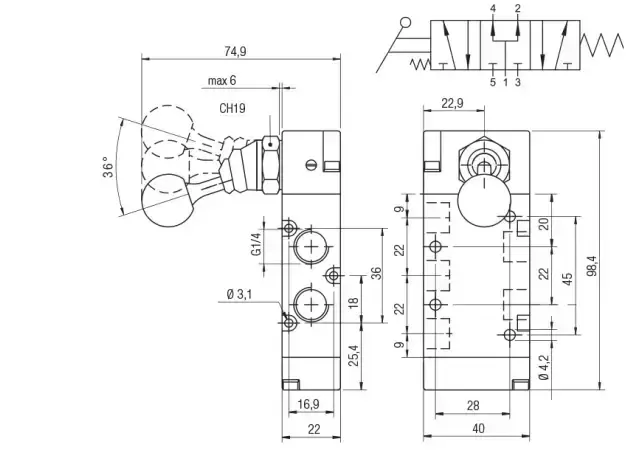

90° LEVER VALVE
| Code | 3D Drawings | Ways | Reactuation | Function | Size | Bag | |
|---|---|---|---|---|---|---|---|

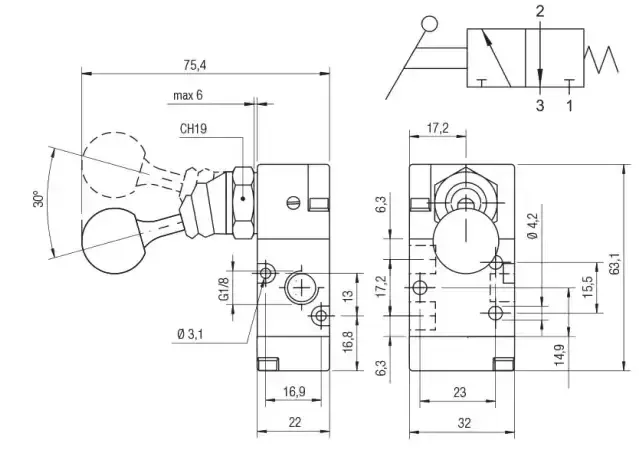

| 01V L0 3 NC 02 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NC | 1/8 | 1 | |
| 01V L0 3 NC 03 | Request access | 3/2 | MONOSTABLE SPRING RETURN | NC | 1/4 | 1 | |

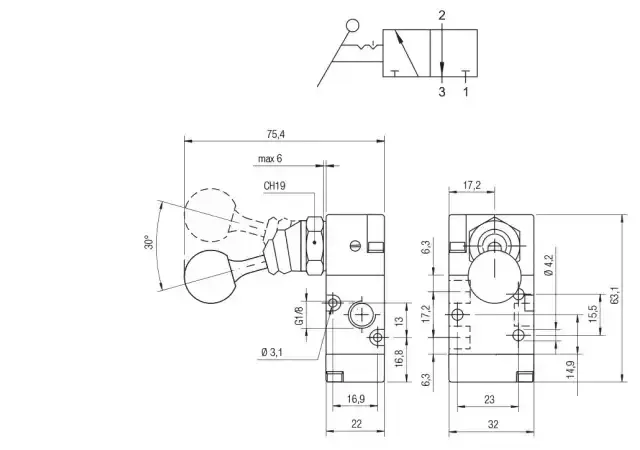

| 01V L1 3 00 02 | Request access | 3/2 | TWO STABLE POSITIONS | 1/8 | 1 | ||

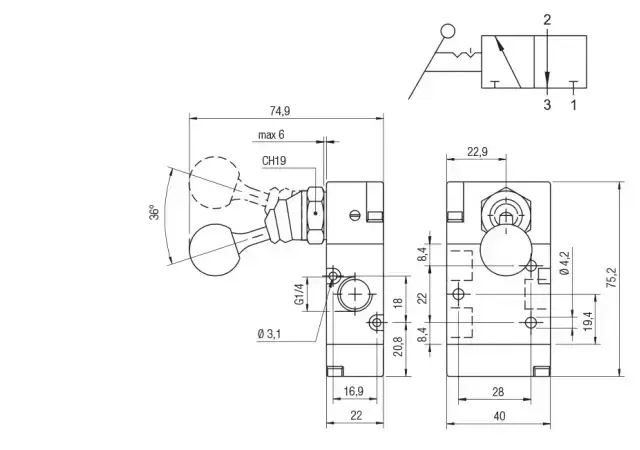

| 01V L1 3 00 03 | Request access | 3/2 | TWO STABLE POSITIONS | 1/4 | 1 | ||

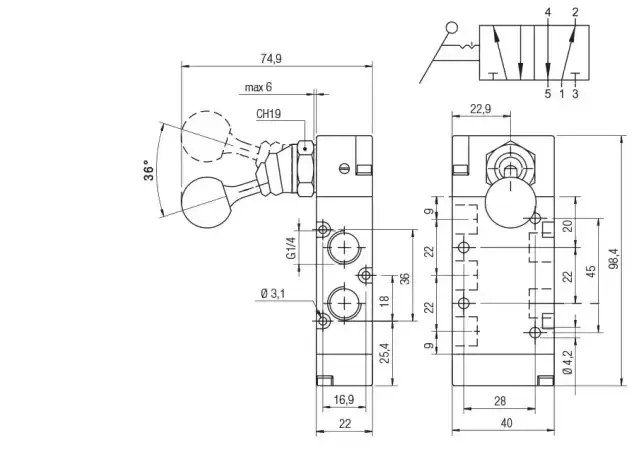

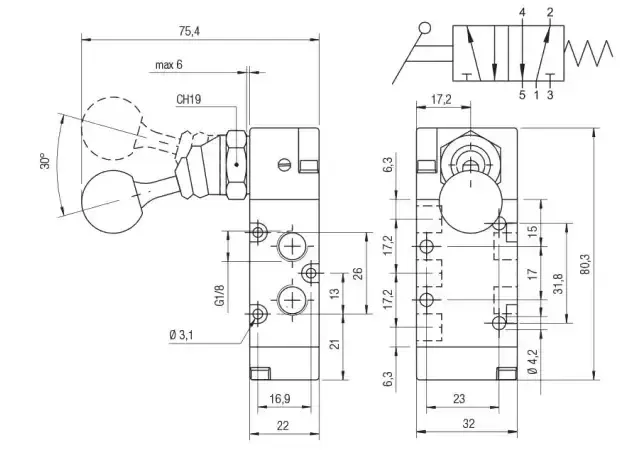

| 01V L0 5 00 02 | Request access | 5/2 | MONOSTABLE SPRING RETURN | 1/8 | 1 | ||
| 01V L0 5 00 03 | Request access | 5/2 | MONOSTABLE SPRING RETURN | 1/4 | 1 | ||

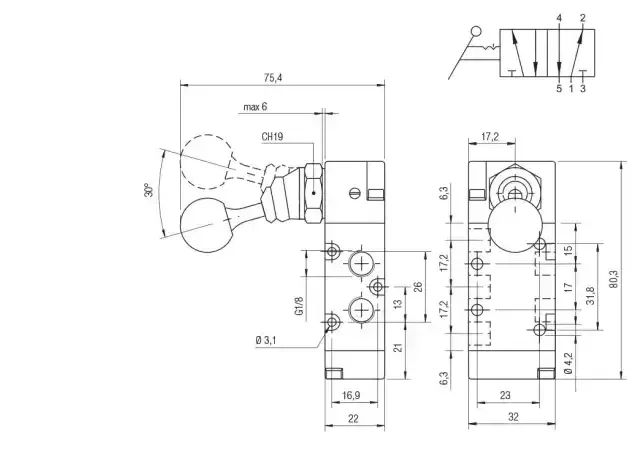

| 01V L1 5 00 02 | Request access | 5/2 | TWO STABLE POSITIONS | 1/8 | 1 | ||

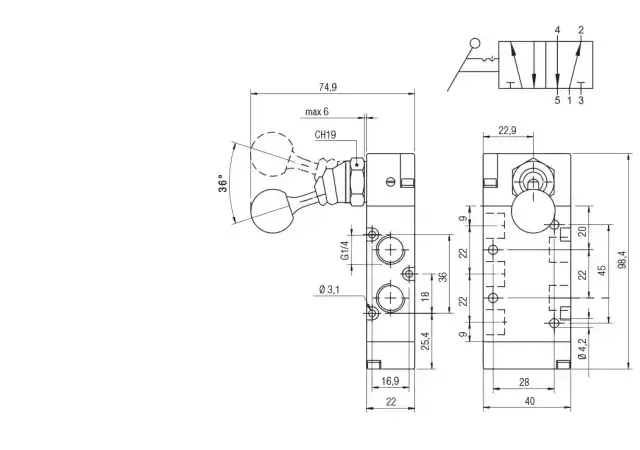

| 01V L1 5 00 03 | Request access | 5/2 | TWO STABLE POSITIONS | 1/4 | 1 | ||

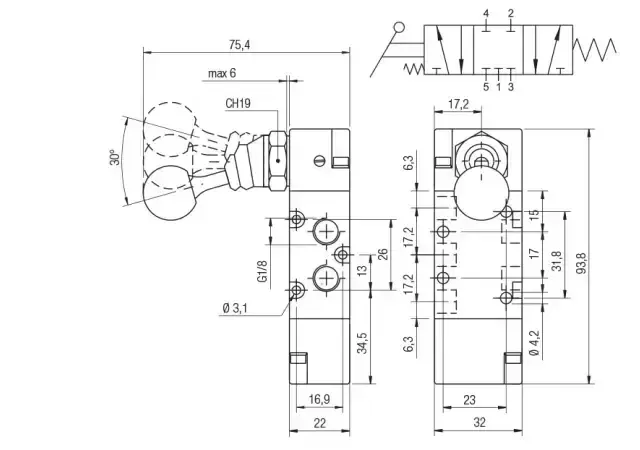

| 01V L0 7 CC 02 | Request access | 5/3 | MONOSTABLE SPRING RETURN | CC | 1/8 | 1 | |
| 01V L0 7 CC 03 | Request access | 5/3 | MONOSTABLE SPRING RETURN | CC | 1/4 | 1 | |

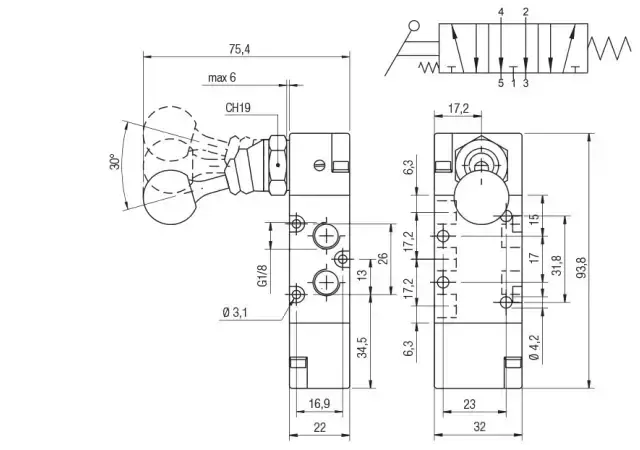

| 01V L0 7 OC 02 | Request access | 5/3 | MONOSTABLE SPRING RETURN | OC | 1/8 | 1 | |
| 01V L0 7 OC 03 | Request access | 5/3 | MONOSTABLE SPRING RETURN | OC | 1/4 | 1 | |
| 01V L0 7 PC 02 | Request access | 5/3 | MONOSTABLE SPRING RETURN | PC | 1/8 | 1 | |
| 01V L0 7 PC 03 | Request access | 5/3 | MONOSTABLE SPRING RETURN | PC | 1/4 | 1 | |

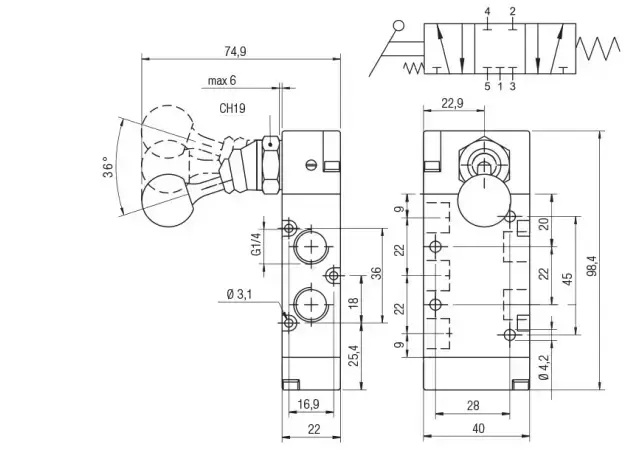

| 01V L2 7 CC 02 | Request access | 5/3 | 3 STABLE POSITIONS | CC | 1/8 | 1 | |

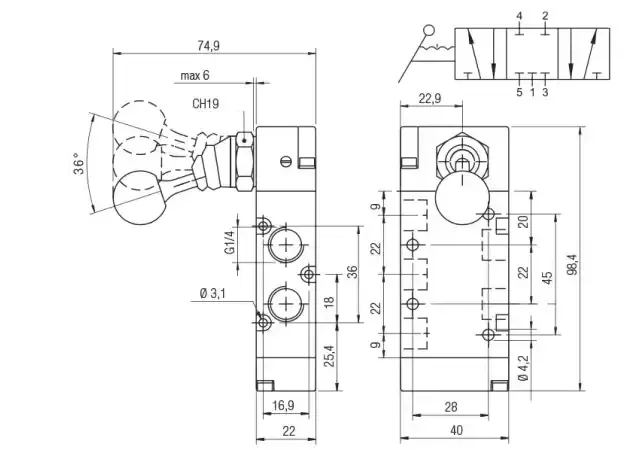

| 01V L2 7 CC 03 | Request access | 5/3 | 3 STABLE POSITIONS | CC | 1/4 | 1 | |

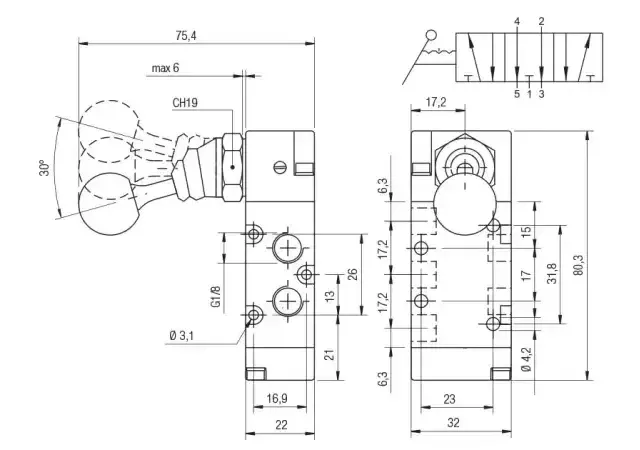

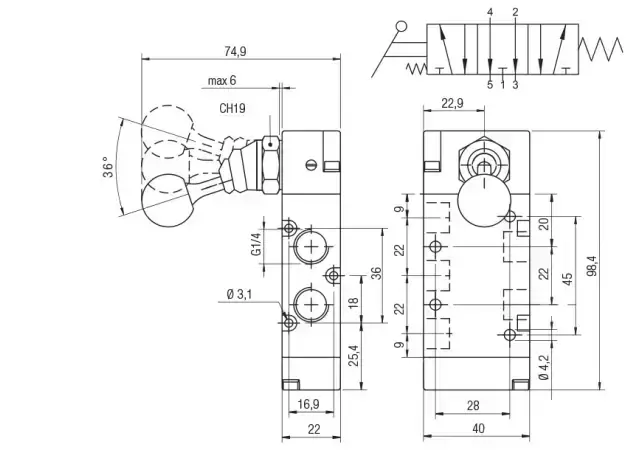

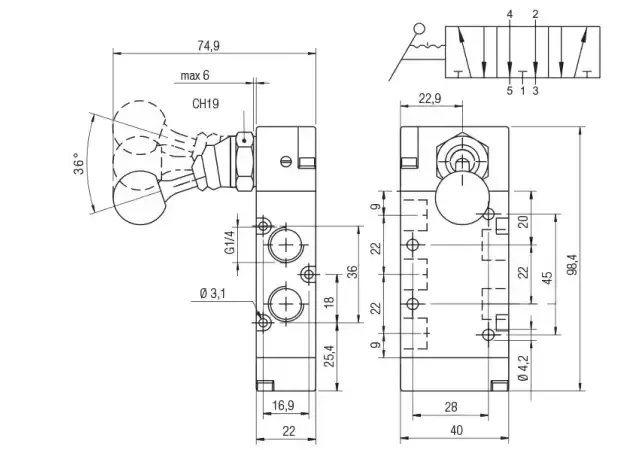

| 01V L2 7 OC 02 | Request access | 5/3 | 3 STABLE POSITIONS | OC | 1/8 | 1 | |
| 01V L2 7 OC 03 | Request access | 5/3 | 3 STABLE POSITIONS | OC | 1/4 | 1 | |

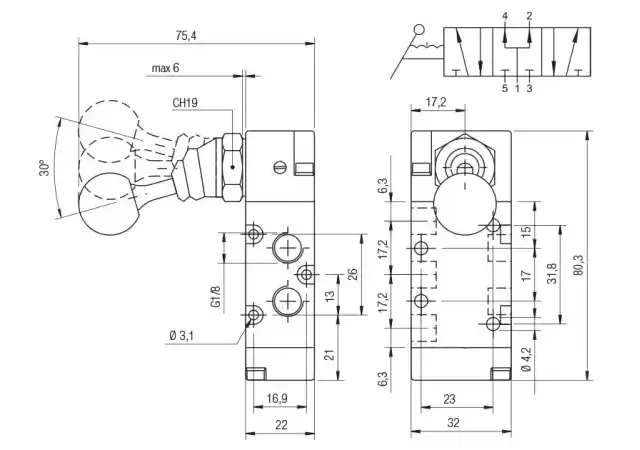

| 01V L2 7 PC 02 | Request access | 5/3 | 3 STABLE POSITIONS | PC | 1/8 | 1 | |

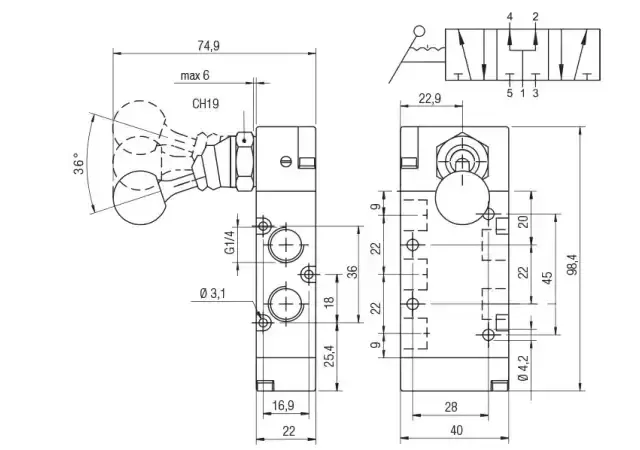

| 01V L2 7 PC 03 | Request access | 5/3 | 3 STABLE POSITIONS | PC | 1/4 | 1 |
