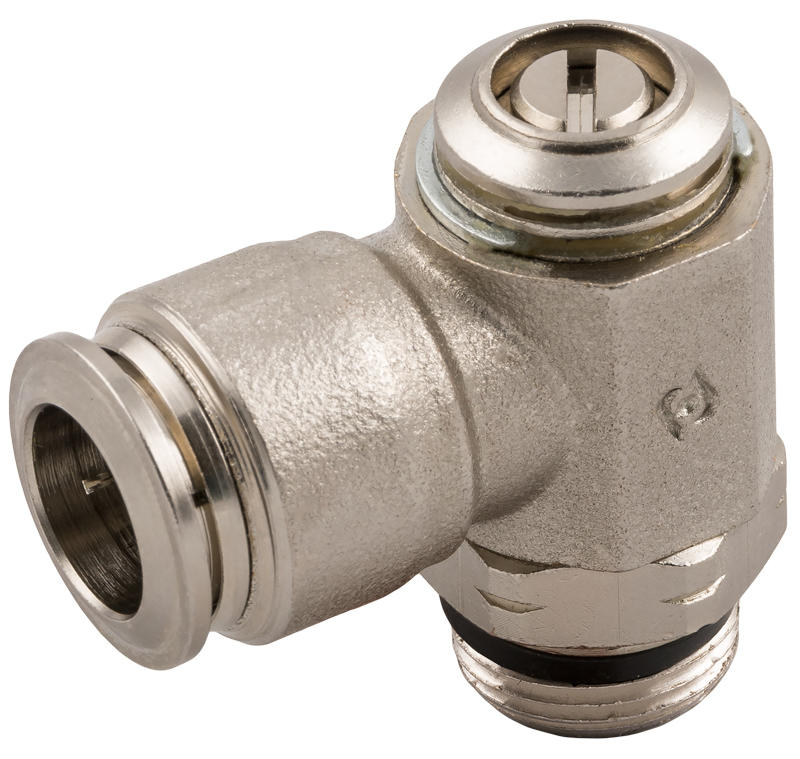

SWIVEL FLOW REGULATOR FOR CYLINDER “UNIVERSAL SHORT”

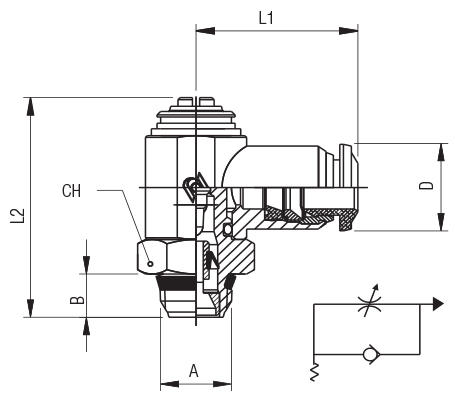

Code	3D Drawings	Tube	A	B	L1	L2 Min	L2 Max	CH	D	Bag
57905 00 002	Request access	4	M5	4	19	39.5	43.5	8	10	10
57905 00 003	Request access	4	1/8	5,5	21	44	49	14	10	10
57905 00 004	Request access	5	M5	4	20	39.5	43.5	8	12.5	10
57905 00 005	Request access	5	1/8	5,5	21,5	44	49	14	12.5	10
57905 00 006	Request access	5	1/4	7	24,5	48.5	55	17	12.5	10
57905 00 007	Request access	6	M5	4	20,5	39.5	43.5	8	12.5	10
57905 00 008	Request access	6	1/8	5,5	22,5	44	49	14	12.5	10
57905 00 009	Request access	6	1/4	7	25	48.5	55	17	12.5	10
57905 00 010	Request access	8	1/8	5,5	24	44	49	14	14	10
57905 00 011	Request access	8	1/4	7	26	48.5	55	17	14	10
57905 00 016	Request access	8	3/8	7,5	28,5	56	65	20	14	10
57905 00 017	Request access	10	1/4	7	28,5	48.5	55	17	17	10
57905 00 012	Request access	10	3/8	7,5	30,5	56	65	20	17	10
57905 00 013	Request access	12	3/8	7,5	32,5	56	65	20	21.5	10
57905 00 014	Request access	12	1/2	9	35	62	69	24	21.5	10
57905 00 015	Request access	14	1/2	9	35,5	62	69	24	21.5	10
