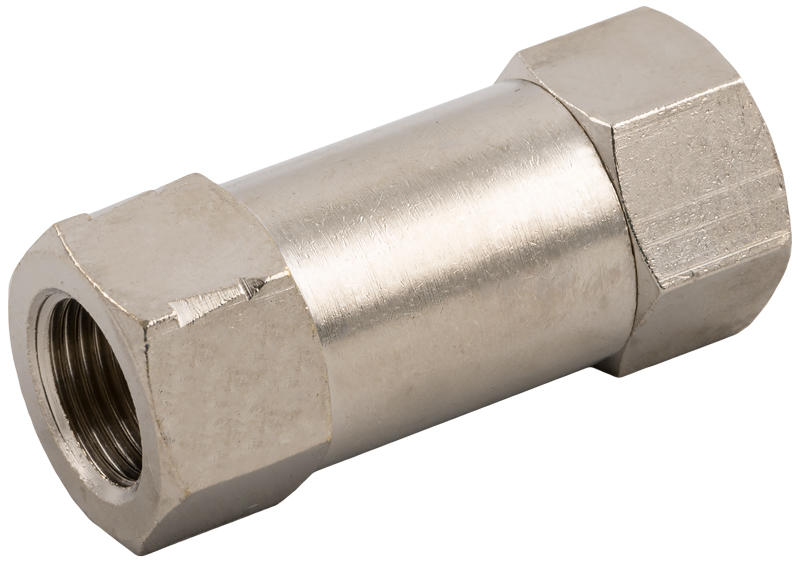

FEMALE-FEMALE NON RETURN VALVE

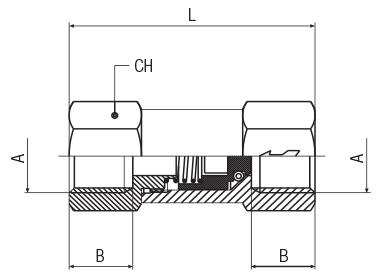

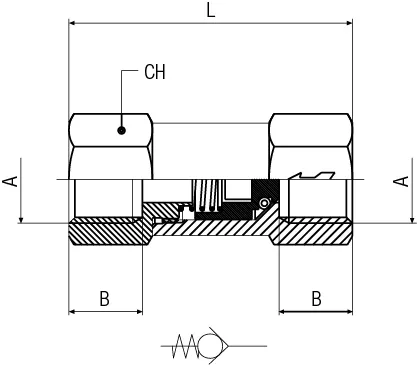

Code	3D Drawings	A	B	L	CH	Seal	Bag
06062 00 001	Request access	M5	5,5	26,5	8	NBR	10
06062 00 002	Request access	1/8	8,5	35,5	13	NBR	10
06062 00 003	Request access	1/4	11	43	17	NBR	10
06062 00 004	Request access	3/8	12	58	24	NBR	10
06062 00 005	Request access	1/2	15	63	24	NBR	10
06062 00 006	Request access	M5	5,5	26,5	8	FKM	10
06062 00 007	Request access	1/8	8,5	35,5	13	FKM	10
06062 00 008	Request access	1/4	11	43	17	FKM	10
06062 00 009	Request access	3/8	12	58	24	FKM	10
06062 00 010	Request access	1/2	15	63	24	FKM	10
