Filter

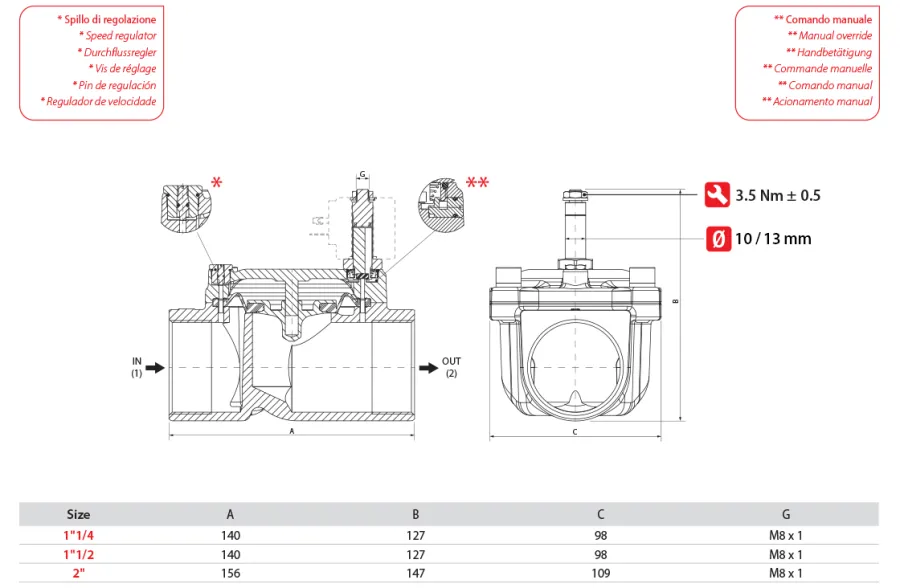

T = Without manual override
1 = With manual override
6 = Ø10 operator with regulator and without manual override
| Code | 3D Drawings | Version | Ø Operator | Sealing material | Temperature | Port size | Ø Orifice (mm) | Viscosity (cSt) | Kv (m3/h) | OPD (ΔP) - DC (8 W) | OPD (ΔP) - DC (14 W) | OPD (ΔP) - DC (22 W) | OPD (ΔP) - AC (14 VA) | OPD (ΔP) - AC (21 VA) | OPD (ΔP) - AC (31 VA) | OPD (ΔP) - DC (5,3 W) | OPD (ΔP) - AC (5,3 W) | Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04F XF 1 40 N T | Request access | T | 13 mm | NBR | -10°C +90°C | 1"1/4 | 40 | 25 | 24 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XF 1 40 V T | Request access | T | 13 mm | FKM | -10°C +140°C | 1"1/4 | 40 | 25 | 24 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XF 1 40 E T | Request access | T | 13 mm | EPDM | -10°C +140°C | 1"1/4 | 40 | 25 | 24 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XG 1 40 N T | Request access | T | 13 mm | NBR | -10°C +90°C | 1"1/2 | 40 | 25 | 25.3 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XG 1 40 V T | Request access | T | 13 mm | FKM | -10°C +140°C | 1"1/2 | 40 | 25 | 25.3 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XG 1 40 E T | Request access | T | 13 mm | EPDM | -10°C +140°C | 1"1/2 | 40 | 25 | 25.3 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XH 1 50 N T | Request access | T | 13 mm | NBR | -10°C +90°C | 2" | 50 | 25 | 41 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XH 1 50 V T | Request access | T | 13 mm | FKM | -10°C +140°C | 2" | 50 | 25 | 41 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XH 1 50 E T | Request access | T | 13 mm | EPDM | -10°C +140°C | 2" | 50 | 25 | 41 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XF 1 40 N 1 | Request access | 1 | 13 mm | NBR | -10°C +90°C | 1"1/4 | 40 | 25 | 24 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XF 1 40 V 1 | Request access | 1 | 13 mm | FKM | -10°C +140°C | 1"1/4 | 40 | 25 | 24 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XF 1 40 E 1 | Request access | 1 | 13 mm | EPDM | -10°C +140°C | 1"1/4 | 40 | 25 | 24 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XG 1 40 N 1 | Request access | 1 | 13 mm | NBR | -10°C +90°C | 1"1/2 | 40 | 25 | 25.3 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XG 1 40 V 1 | Request access | 1 | 13 mm | FKM | -10°C +140°C | 1"1/2 | 40 | 25 | 25.3 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XG 1 40 E 1 | Request access | 1 | 13 mm | EPDM | -10°C +140°C | 1"1/2 | 40 | 25 | 25.3 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XH 1 50 N 1 | Request access | 1 | 13 mm | NBR | -10°C +90°C | 2" | 50 | 25 | 41 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XH 1 50 V 1 | Request access | 1 | 13 mm | FKM | -10°C +140°C | 2" | 50 | 25 | 41 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XH 1 50 E 1 | Request access | 1 | 13 mm | EPDM | -10°C +140°C | 2" | 50 | 25 | 41 | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | 0.20 - 10 bar | - | - | 1 | |
| 04F XF 1 40 N 6 | Request access | 6 | 10 mm | NBR | -10°C +90°C | 1"1/4 | 40 | 25 | 24 | - | - | - | - | - | - | 0.20 - 5 bar | 0.20 - 10 bar | 1 | |
| 04F XF 1 40 V 6 | Request access | 6 | 10 mm | FKM | -10°C +140°C | 1"1/4 | 40 | 25 | 24 | - | - | - | - | - | - | 0.20 - 5 bar | 0.20 - 10 bar | 1 | |
| 04F XF 1 40 E 6 | Request access | 6 | 10 mm | EPDM | -10°C +140°C | 1"1/4 | 40 | 25 | 24 | - | - | - | - | - | - | 0.20 - 5 bar | 0.20 - 10 bar | 1 | |
| 04F XG 1 40 N 6 | Request access | 6 | 10 mm | NBR | -10°C +90°C | 1"1/2 | 40 | 25 | 25.3 | - | - | - | - | - | - | 0.20 - 5 bar | 0.20 - 10 bar | 1 | |
| 04F XG 1 40 V 6 | Request access | 6 | 10 mm | FKM | -10°C +140°C | 1"1/2 | 40 | 25 | 25.3 | - | - | - | - | - | - | 0.20 - 5 bar | 0.20 - 10 bar | 1 | |
| 04F XG 1 40 E 6 | Request access | 6 | 10 mm | EPDM | -10°C +140°C | 1"1/2 | 40 | 25 | 25.3 | - | - | - | - | - | - | 0.20 - 5 bar | 0.20 - 10 bar | 1 | |
| 04F XH 1 50 N 6 | Request access | 6 | 10 mm | NBR | -10°C +90°C | 2" | 50 | 25 | 41 | - | - | - | - | - | - | 0.20 - 5 bar | 0.20 - 10 bar | 1 | |
| 04F XH 1 50 V 6 | Request access | 6 | 10 mm | FKM | -10°C +140°C | 2" | 50 | 25 | 41 | - | - | - | - | - | - | 0.20 - 5 bar | 0.20 - 10 bar | 1 | |
| 04F XH 1 50 E 6 | Request access | 6 | 10 mm | EPDM | -10°C +140°C | 2" | 50 | 25 | 41 | - | - | - | - | - | - | 0.20 - 5 bar | 0.20 - 10 bar | 1 |
