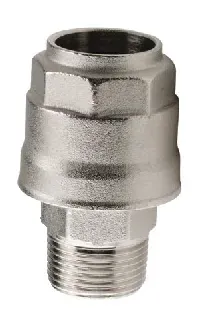

STRAIGHT MALE ADAPTOR

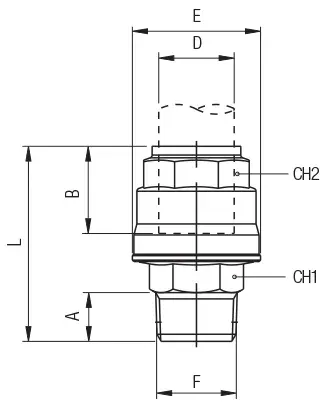

Code	3D Drawings	D	F	A	B	E	L	CH1	CH2	*	Bag
90010 00 001	Request access	20	1/2	14	31,5	34,5	56	22	30		5
90010 00 009	Request access	20	3/4	16,5	31,5	34,5	61	22	30		5
90010 00 011	Request access	25	1/2	14	38,5	42,5	65	27	35		5
90010 00 002	Request access	25	3/4	16,5	38,5	42,5	66	27	35		5
90010 00 010	Request access	25	1"	19	38,5	42,5	70.5	27	35		5
90010 00 003	Request access	32	1"	19	46	52	76.5	34	45		2
90010 00 013	Request access	40	1"	19	52	63	86.5	45	55		2
90010 00 004	Request access	40	1" 1/4	21,5	52	63	89.5	45	55		2
90010 00 007	Request access	40	1" 1/2	21,5	52	63	92	50	55		2
90010 00 014	Request access	50	1"	19	63,5	73	102.5	60	65		2
90010 00 013 A	Request access	40	1"	19	52	69	96,5	45	55	Aluminium	2
90010 00 004 A	Request access	40	1" 1/4	21,5	52	69	99	45	55	Aluminium	2
90010 00 007 A	Request access	40	1" 1/2	21,5	52	69	101,5	50	55	Aluminium	2
90010 00 014 A	Request access	50	1"	19	58,5	84	110,5	50	72	Aluminium	2
90010 00 005 A	Request access	50	1" 1/2	21,5	58,5	84	112,5	50	72	Aluminium	2
90010 00 012 A	Request access	50	2"	24	58,5	84	115,5	50	72	Aluminium	2
90010 00 006 A	Request access	63	2"	24	57,5	94	109,5	65	75	Aluminium	2
90010 00 008 A	Request access	63	2" 1/2	24	57,5	94	106,5	75	75	Aluminium	2
