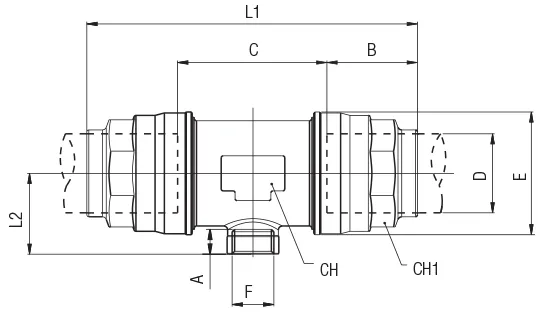

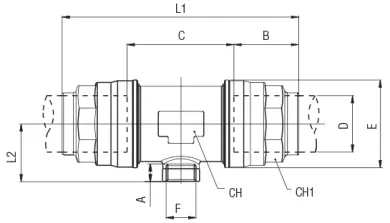

| Code | 3D Drawings | D | F | A | B | C | E | L1 | L2 | CH | CH1 | * | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 90236 00 006 | Request access | 20 | 3/8 | 11 | 31.5 | 48 | 34.5 | 109 | 25 | 28 | 30 | 3 | ||
| 90236 00 007 | Request access | 20 | 1/2 | 13.5 | 31.5 | 48 | 34.5 | 109 | 28 | 28 | 30 | 3 | ||
| 90236 00 001 | Request access | 25 | 3/8 | 11 | 38.5 | 45.5 | 42.5 | 121.5 | 29 | 35 | 35 | 3 | ||
| 90236 00 008 | Request access | 25 | 1/2 | 13.5 | 38.5 | 45.5 | 42.5 | 121.5 | 31 | 35 | 35 | 2 | ||
| 90236 00 002 | Request access | 32 | 1/2 | 13.5 | 46 | 54.5 | 52 | 146.5 | 36.5 | 45 | 45 | 2 | ||
| 90236 00 003 | Request access | 40 | 1/2 | 13.5 | 52.5 | 60 | 63 | 165.5 | 41.5 | 55 | 55 | 2 | ||
| 90236 00 003 A | Request access | 40 | 1/2" | 13.5 | 52 | 85 | 69 | 187.5 | 43.5 | 57 | 55 | Aluminium | 1 | |
| 90236 00 019 A | Request access | 50 | 1/2" | 13.5 | 58.5 | 105 | 84 | 222 | 53 | 69 | 68 | Aluminium | 1 | |
| 90236 00 004 A | Request access | 50 | 3/4" | 14.5 | 58.5 | 105 | 84 | 222 | 53 | 69 | 68 | Aluminium | 1 | |
| 90236 00 020 A | Request access | 50 | 1" | 17.5 | 58.5 | 105 | 84 | 222 | 53 | 69 | 68 | Aluminium | 1 | |
| 90236 00 017 A | Request access | 63 | 1/2 | 13.5 | 57.5 | 88 | 94 | 203 | 53 | 80 | 75 | Aluminium | 1 | |
| 90236 00 005 A | Request access | 63 | 3/4 | 14.5 | 57.5 | 88 | 94 | 203 | 54 | 80 | 75 | Aluminium | 1 | |
| 90236 00 018 A | Request access | 63 | 1" | 17.5 | 57.5 | 88 | 94 | 203 | 56.5 | 80 | 75 | Aluminium | 1 |
