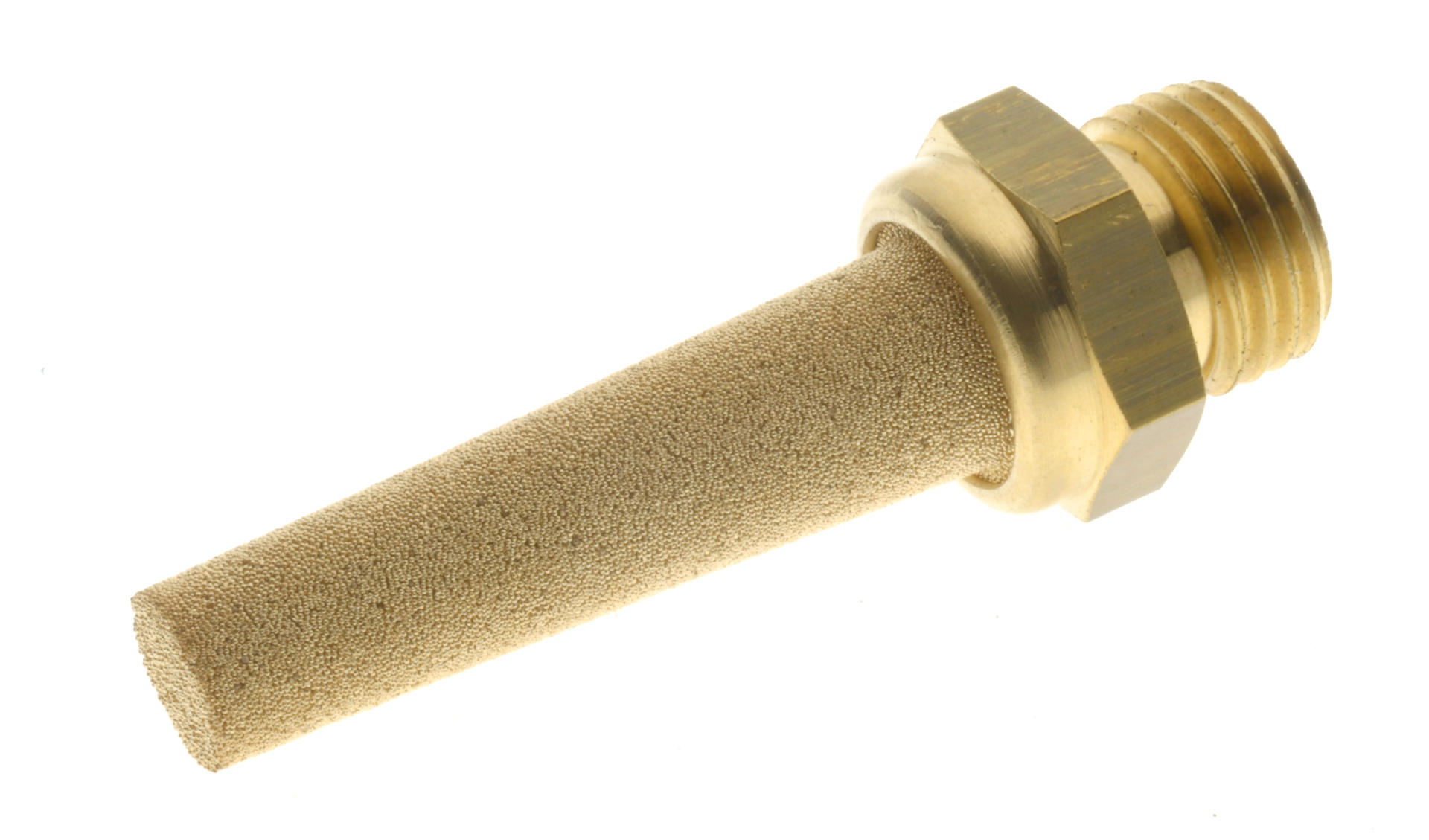

Filter

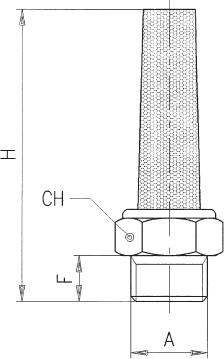

| Code | 3D Drawings | A | F | H Min | H Max | CH | Noise level in (dB) at 6 bar | °C Min | °C Max | Bar | Filtration Threshold | Bag | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07050 00 001 | Request access | 1/8 | 6 | 26 | 28 | 13 | 72 | -10 | +80 | 12 | 100 μm | 10 | |
| 07050 00 002 | Request access | 1/4 | 8 | 30 | 32 | 15 | 73 | -10 | +80 | 12 | 100 μm | 10 | |
| 07050 00 003 | Request access | 3/8 | 10 | 35 | 38 | 18 | 84 | -10 | +80 | 12 | 100 μm | 10 | |
| 07050 00 004 | Request access | 1/2 | 11 | 37 | 40 | 22 | 88 | -10 | +80 | 12 | 100 μm | 10 |
