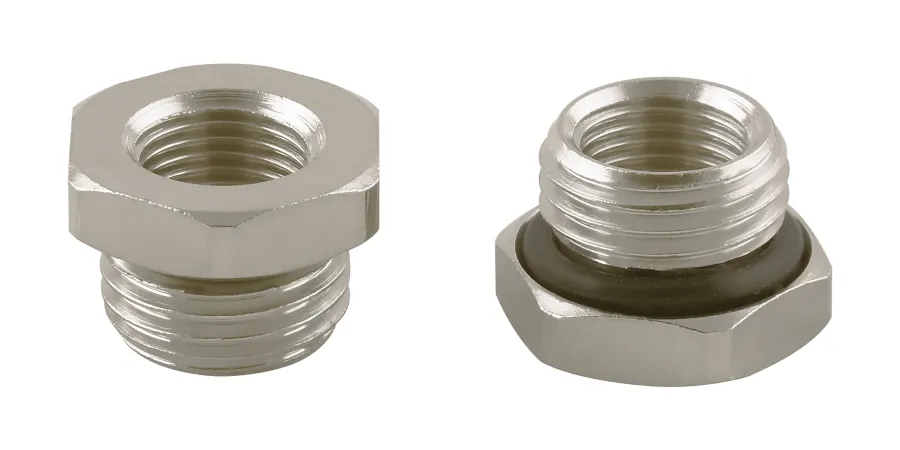

REDUCER (PARALLEL) WITH NBR O-RING

Code	3D Drawings	A	A1	B	L	CH	°C Min	°C Max	Bag
02092 00 012	Request access	M7	M5	4,8	12	10	-20	+80	10
02092 00 001	Request access	1/8	M5	5,4	9,4	13	-20	+80	10
02092 00 008	Request access	1/4	M5	7,1	11,1	16	-20	+80	10
02092 00 002	Request access	1/4	1/8	7,1	11,1	16	-20	+80	10
02092 00 003	Request access	3/8	1/8	8,1	12,6	20	-20	+80	10
02092 00 004	Request access	3/8	1/4	8,1	12,6	20	-20	+80	10
02092 00 009	Request access	1/2	1/8	9,6	14,5	25	-20	+80	10
02092 00 005	Request access	1/2	1/4	9,6	14,6	25	-20	+80	10
02092 00 006	Request access	1/2	3/8	9,6	14,6	25	-20	+80	10
02092 00 010	Request access	3/4	1/4	11,1	16	34	-20	+80	10
02092 00 011	Request access	3/4	3/8	11,1	16	34	-20	+80	10
02092 00 007	Request access	3/4	1/2	11,1	16	34	-20	+80	10
