07V1
MINIATURE SOLENOID VALVES 10 MM
Technical characteristics / catalogAignep Scan Labels Certifications
| Code | Draw | Ways | Type of Connection | Function | Solenoid | * | IP | Bag | |
|---|---|---|---|---|---|---|---|---|---|

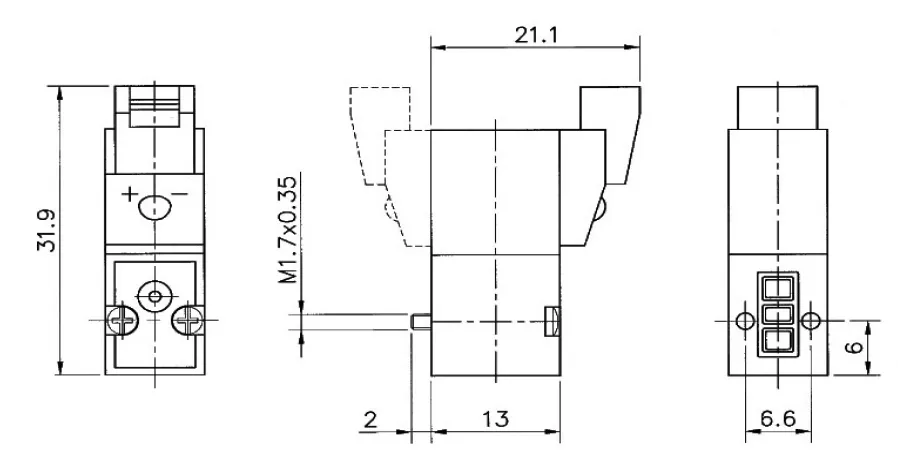

| 07V 11 3 NC 01 | Download | Show image | 3/2 | Line Connector + LED | NC | 24V DC | Item integrated with surge protector. | IP50 | 1 |
| 07V 11 3 NC 00 | Download | Show image | 3/2 | Line Connector + LED | NC | 12V DC | Item integrated with surge protector. | IP50 | 1 |
| 07V 11 3 NO 01 | Download | Show image | 3/2 | Line Connector + LED | NO | 24V DC | Item integrated with surge protector. | IP50 | 1 |
| 07V 11 3 NO 00 | Download | Show image | 3/2 | Line Connector + LED | NO | 12V DC | Item integrated with surge protector. | IP50 | 1 |

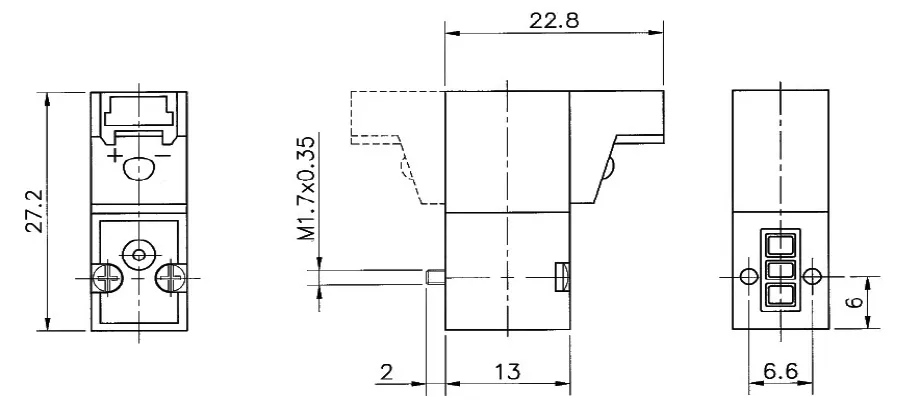

| 07V 12 3 NC 01 | Download | Show image | 3/2 | 90° Connector + LED | NC | 24V DC | Item integrated with surge protector. | IP50 | 1 |
| 07V 12 3 NC 00 | Download | Show image | 3/2 | 90° Connector + LED | NC | 12V DC | Item integrated with surge protector. | IP50 | 1 |
| 07V 12 3 NO 01 | Download | Show image | 3/2 | 90° Connector + LED | NO | 24V DC | Item integrated with surge protector. | IP50 | 1 |
| 07V 12 3 NO 00 | Download | Show image | 3/2 | 90° Connector + LED | NO | 12V DC | Item integrated with surge protector. | IP50 | 1 |

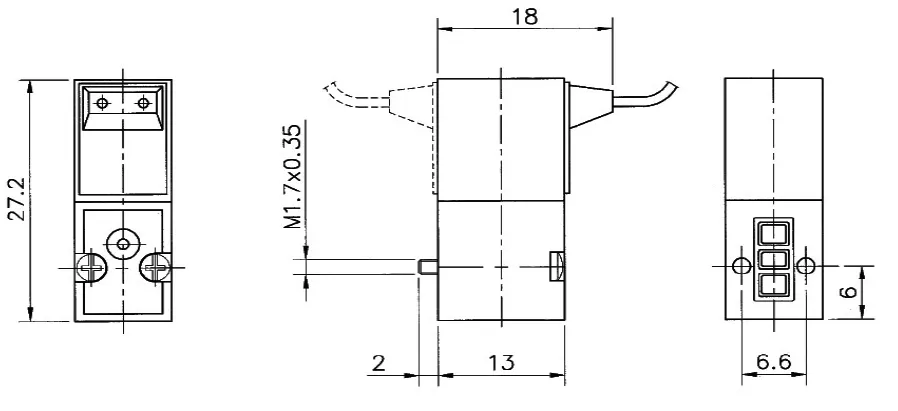

| 07V 13 3 NC 01 | Download | Show image | 3/2 | Cable (300 mm) | NC | 24V DC | IP65 | 1 | |
| 07V 13 3 NC 00 | Download | Show image | 3/2 | Cable (300 mm) | NC | 12V DC | IP65 | 1 | |
| 07V 13 3 NO 01 | Download | Show image | 3/2 | Cable (300 mm) | NO | 24V DC | IP65 | 1 | |
| 07V 13 3 NO 00 | Download | Show image | 3/2 | Cable (300 mm) | NO | 12V DC | IP65 | 1 |
